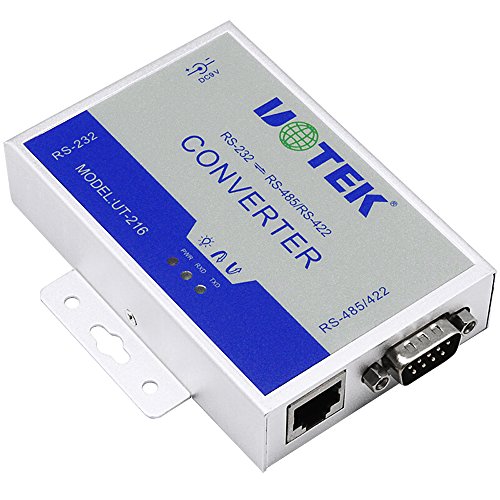

UT-216 RS-232 to RS-485/RS-422 converter with lightning protection
- メーカー
- HD
- ブランド
- ノーブランド品
- JAN
- 7595702214693
- メーカー品番
- HD
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
erformance parameter:
Compatible with RS-232, RS-485, RS-422 - TIA/EIA standard
Automatic send / receive data, without the need for external flow control signal (RTS)
- communication rate: 300bps-115.2Kbps
- able to connect 32 RS-485 or RS-422 interface equipment
- communication distance: 1200 meters (9600bps)
In the power supply and data traffic lights, can detect the fault point
- work mode: asynchronous half duplex asynchronous full duplex (RS-485) or (RS-422) general, without jumper settings
RS-485/422 - provides lightning protection on each line 600W and prevent the total interference
- electrical interface: DB9 pass to the DB9 pin and RJ-45 connector
- transmission media: twisted pair or shielded wire
- size: 97mm * 65mm * 22mm
In the use of the environment: -25 DEG C to 70 DEG C, relative humidity of 5% to 95%
Not applicable to all the use of communication software, plug and play
- support DOS/WIN95/WIN98/WIN2000/NT/XP Linux
