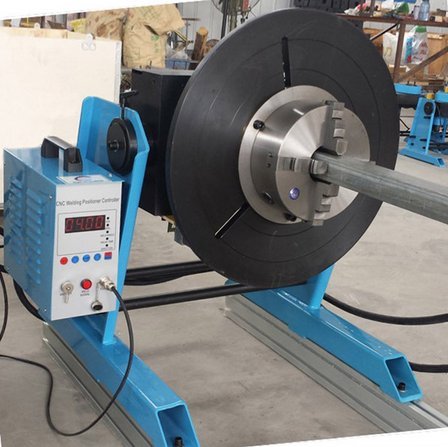

CNC-300 manual tilt model welding positioner welding table

商品説明

The product usually takes 7--13 business days to arrive to your hand after your order is confirmed

Product Description
Feature:
1.The CNC Series welding positioner is self-developed as one high-end positioner, which is driven by high-accuracy step motor with high precision, high torque and detailed control program.
2.The rotation speed range is: 0.01r/min~5.00r/min; rotation speed can be set up optionally in measurement unerring.
3.Rotation angle can be set up optionally within 0-750?
4.Controller has the function of memory storage, and the parameter which has been set can be read for the next operation.
5.Special design of anti-electromagnetic, which reduces the high frequency.
6.The machine can work together with the welding robot for the precise welding. The linkage can be realized through welding.
7.The lagging time and arc starting can be set for welding. The lagging time can be set according to requirement while linkage with the welder.
8.The machine responses quickly, starting and stopping very smoothly.
9.The through-hole structure can facilitate the welding, which can delivery the protective gas.

Technical Datas
Model: CNC-300
Power Input: AC 220V 50Hz
Rated Load: 300Kg
Drive Motor: 86 step
Tile Motor: DC 48V 200W
Table Diameter: 500mm
Table Height: 650mm
Tilting Angle: 0-90?
Rotate Speed: 0.01-5.00r/min
Tilt Mode: Manual
Tilt Speed: 0.5r/min
Center Hole Diameter: 90/130mm
Net Weight: 102Kg
Applicable Chuck: KD-300/400/500
