Hanchen Instrument?Optical Composite Image Level?radienter

商品説明

The product usually takes 7--13 business days to arrive to your hand after your order is confirmed

Product Description

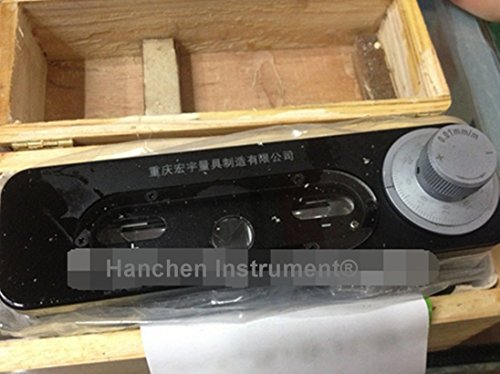

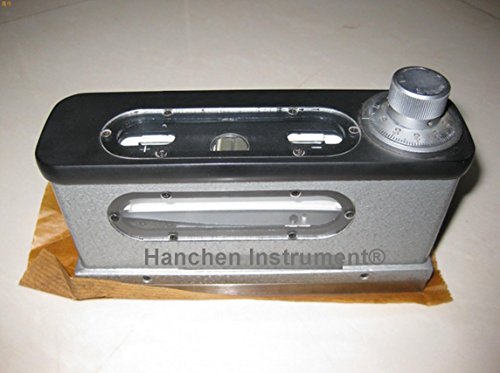

Optical Composite Image Level, mainly consists of ?he micrometer measuring screw, lever systems, standards, optical prisms and a V-shaped base composition working plane ?nd other components, as shown in Figure .?Standards rack installed on the bottom plate of the lever. Its horizontal position is adjusted the micrometer srew and lever system,which is through the knob plate. The bubble arc inside the standards,use the three different location prism reflect to observation window. divided into two half-images.using the optical principle, make the bubble composite enlarge(zoom 5 times),to improve the reading accuracy, nd through the lever mechanism improve the sensitivity and increase the measuring range.

Technical Data
Dial plate value:0.01mm/m
Measuring range:0-10mm/m
Error of indication Within ?mm/m:?.01mm/m
Error of indication in the whole measuring range:?.02mm/m
Workdesk flatness deviation:0.003mm
Standards rack cell value:0.1mm/m
Workdesk size:165?8mm
