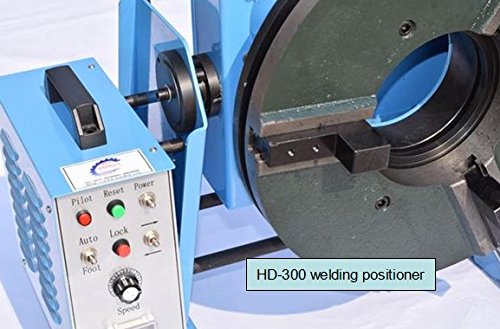

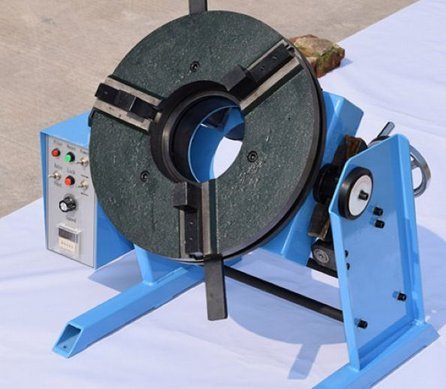

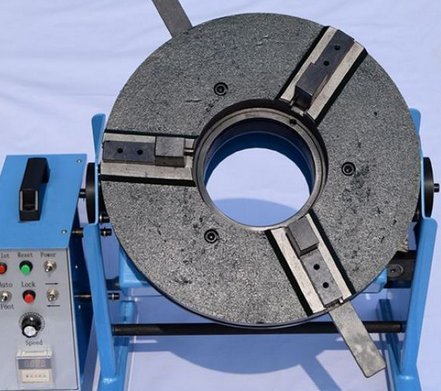

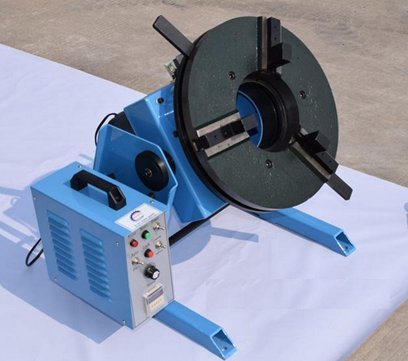

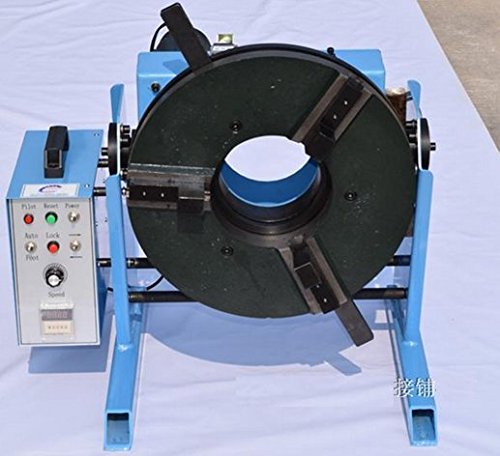

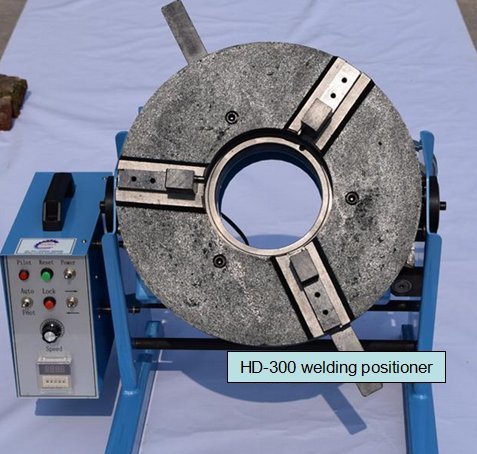

HD-300 welding positioner /welding table/turn table with WP300 chuck

商品説明

The product usually takes 7--13 business days to arrive to your hand after your order is confirmed

Product Description
Feature:
1.The rotation structure of positioner is driven by name brand DC motor, which stepless speed regulation can be achieved.
2.The turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90?
3.Table of welding positioner has center through hole, which is convenient for the pipe to be clamped and positioned, and protect the gas when it go through the internal pipe, so it will improve the accuracy and quality of welding.
4.Special design of anti-electromagnetic, which reduces the high frequency interference of TIG｣r welding, and can improve the welding quality effectively.
5.Time- controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
6.The welding chuck and adjustable-welding gun support can be furnished to fix the position of the welding torch.
7.The track and air-powered tip can be furnished to achieve the function of self-holding to the workpieces.
8.The upgrading can be achieve on the basis of current positioner, improve automatization of the welding process.

Technical Datas
Model: HD-300
Power Input: AC 220V 50Hz
Drive Motor: DC 220V 200W
Rated Load: 300Kg
Table Diameter: 500mm
Table Height: 650mm
Tilting Angle: 0-90?
Rotate Speed: 0.2-2.5r/min
Center Hole Diameter: 90/130mm
Net Weight: 102Kg
Applicable Chuck: KD-300/400/500
