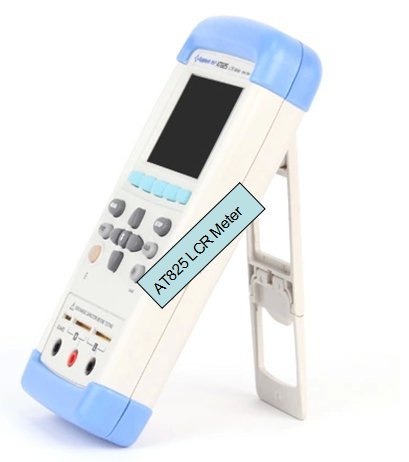

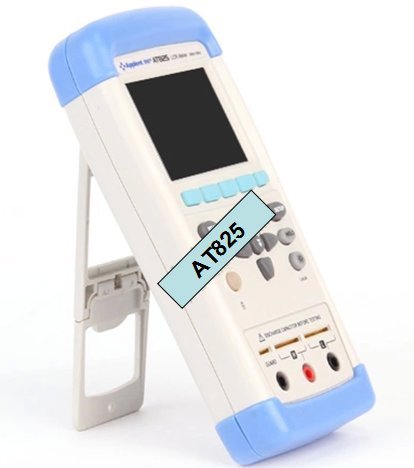

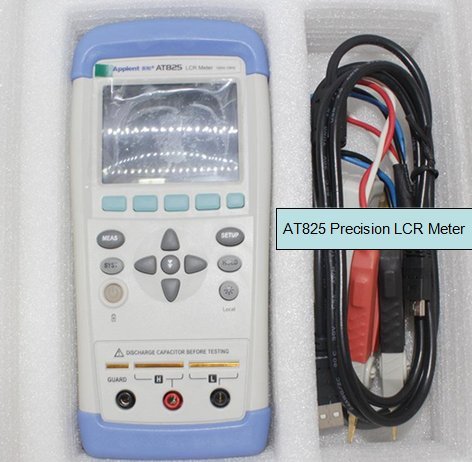

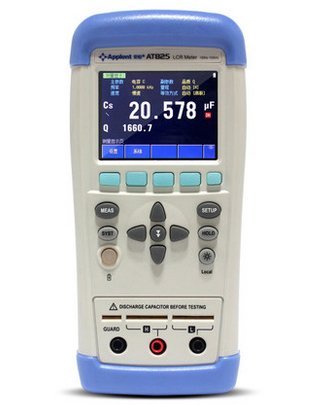

Professional AT825 Precision LCR Meter TFT-LCD Display
- メーカー
- Hanchen Instrument
- ブランド
- Hanchen
- JAN
- 6017286164856
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Technical Datas
Parameters: L,C,R,Z,D,Q,?(deg),?(rad)ESR
Accuracy: 0.2%
Frequency: 100Hz,120Hz,1kHz,10kHz
Display Range:
L: 0.01?H-9999H
D,Q: 0.0001?999
C: 0.01pF - 9999?F
?(deg):-179.99?179.99?
R,Z:0.0001? - 99.99M?
?(rad):-3.1416?.1416
Source Resistance: 100?
Range: Automatic or Manual
Display Max: Principle Parameter: 49999 Sub Parameter: 49999
Signal Level: 0.6Vrms
Speed: 4 times/second, 1.5 times/second
Comparator: 1 sets, compare main parameters
Adjustment:Open/short scan frequency reset for each range
Interface: Build-in Mini-USB interface (virtual interface) Charging interface
Voltage:
Input: 100-240V~50/60Hz
Output: 9V 1A DC 7.4V, Li, 1300mAh Rechargeable Battery
Outside Size: 90*190*31mm
Net Weight: 400g
NOTE:
we will send the product to you as soon as possible
If you have any questions , please feel free to contact us
特記事項

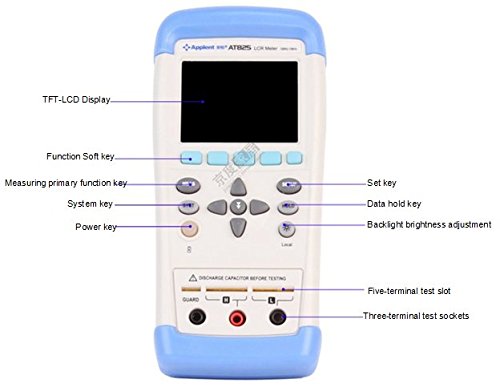

- TFT-LCD Display;Key lock function;Optional Interface: USB
- View: ?ABS, ?% or Sorting Result on 3rd Line
- Comparator Function: 10 files,6 bins: P1~P9,NG,AUX, HI, IN, LO
- Interface: RS232C and Handler;Test signal monitor: Vm and Im
- Average rate: 1~99times;Measurement Terminal: 5 terminals
