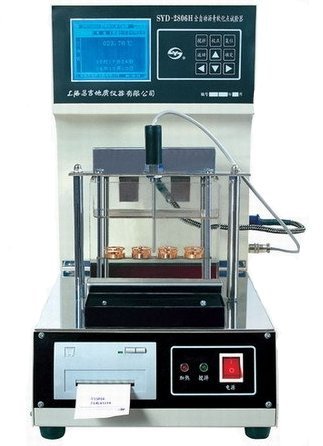

SYD-2806H Automatic Asphalt Softening Point Tester
- メーカー
- Hanchen Instrument
- ブランド
- Hanchen
- JAN
- 6028763289610
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Product Description
Description:
The instrument is suitable to the standards of GB/T4507, T0606-2000. It is used to test the temperature of asphaltum when asphaltum softens and drops 25mm under the heating conditions. Reference standard: ASTMD36.
Technical Datas
Model: SYD-2806H
Supply voltage: AC 220V (tolerance -5% ~ + 10%), 50Hz
Measuring range:
(1) Sample softening point below 80 ?, using distilled water as the heating medium, + 5 ? ~ + 80 ?;
(2) Sample softening point above 80 ?, using glycerin as heating medium, + 32 ? ~ + 160 ?;
Temperature resolution: 0.01 ?
Stirrer: Stirring with adjustable speed
Heating rate: after three minutes, automatically adjust to (5.0 ?0.5) ?/min
Results of Softening point: Liquid crystal display and printer
Heating power: 600W
Computer Interface: RS-232C communication interface
Beaker: effective volume 1000ml
Environmental conditions: temperature less than 35 ? and relatively stable, non-air convection
Relative humidity: ?85%
Total power consumption: <700W
NOTE:
we will send the product to you as soon as possible
If you have any questions , please feel free to contact us
特記事項
- 1.Beaker with high temperature quartz square glass jar, ball positioning ring, balls, etc.
- 2.Their size comply with the requirements specified in the standard.
- 3.The instrument is compact desktop structure, with LCD screen display, touch keyboard control.
- 4.While four samples can be tested by setting and two samples can also be tested.
- 5.The test is convenient, reliable, and high test efficiency.
