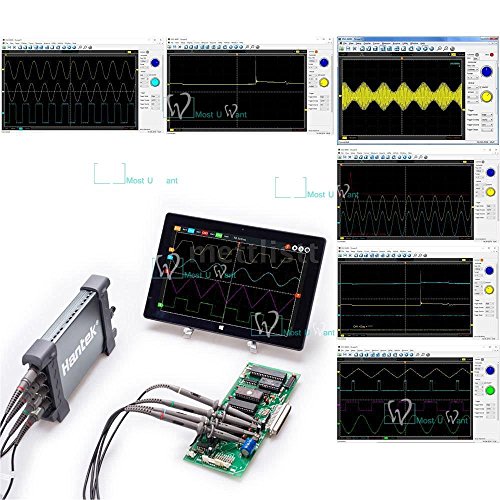

Hantek 自動車診断機器 PCベースのUSB 電子測定機器 オシロスコープ 4CH 70MHz 1GSa/s 8bits 64K

商品説明

Feature

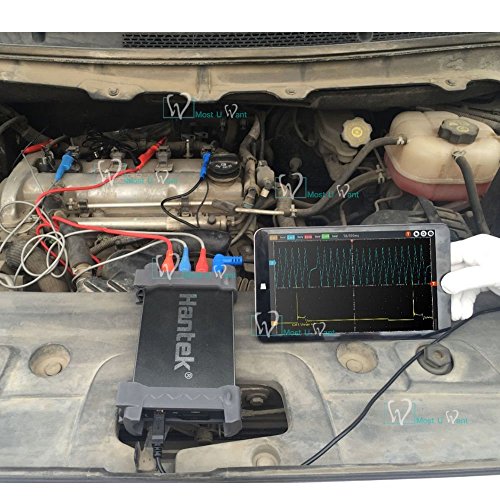

a)Standard equipped over 80 types of automotive measurement function；
First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
Ignition: primary and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Performer: Petrol/Diesel
Starter and charging circuits
b) Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
c) USB 2.0 interface plug and play, and no need extra power supply;
d)Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
e)Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
f)4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,
g)The waveform data could be output to EXCEL,BMP,JPG.
h)Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
i)FFT spectrum analyzer
j)One computer could connect with multiple oscilloscopes, expand the channel number easily.
k)Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples.
