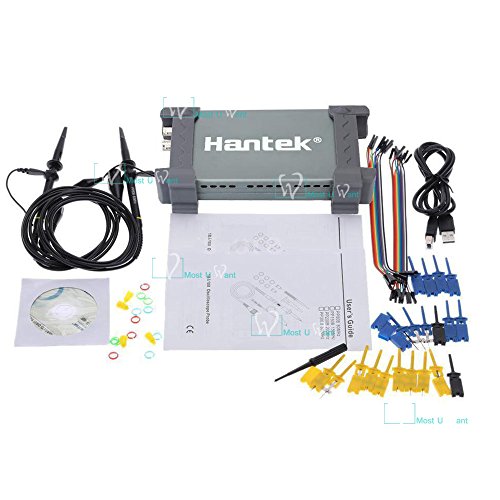

PCのUSBデジタルオシロスコープ USBXI 48MS/s 20Mhz の帯域幅が2チャンネル そして 16CHロジック・アナライザ

商品説明

Memory Depth 1M
Rise Time 17.5ns
Time Base Precision ±50ppm
Time Base Range 4ns/div-1h/div (Step by1-2-4)
Input Impendence 1MΩ 25pF
Input Sensitivity 20mV/div～5V/div
Vertical Resolution 8Bit
Vertical Position Range 20mV ~ 5V/div @ x1 probe; 200mV ~ 50V/div @ x10 probe;
2V ~ 500V/div @ x100 probe; 20V ~ 5KV/div @ x1000 probe
DC Accuracy ±3%
Bandwidth Limited 20MHz
Trigger Type Edge, Alternative
Trigger Source CH1, CH2
Math +,-,x,÷,FFT, Invert
Cursor Measurement Cross, Trace, Horizontal, Vertical
Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

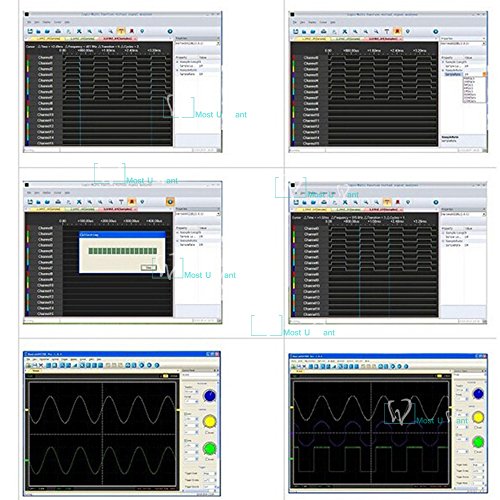

Logic Analyzer Features
Channel 16
Max. Impendance 1MΩ(C=7.5pF)
Max. Voltage 0V~5.5V
Max. Sample 48M
Bandwidth 10MHz
Compatible Input TTL, LVTTL, CMOS
Memory Depth 1M/CH
General Features
Power USB Port
Demensions 200mm x100mm x 35mm
Weight 0.3KG

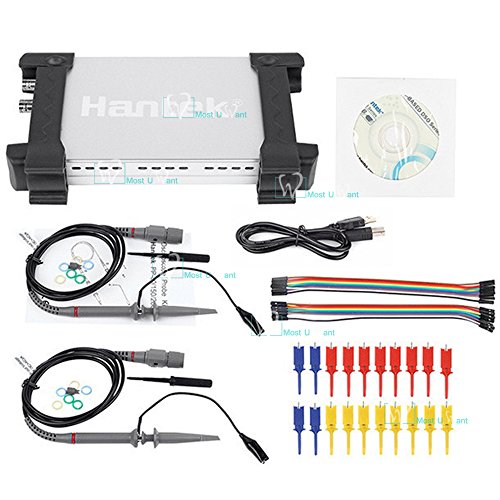

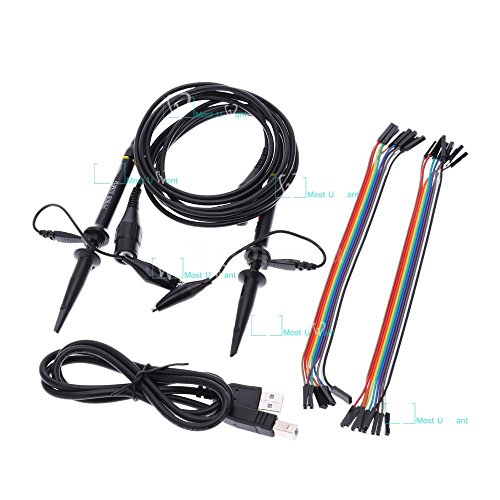

Standard Probe 2 x PP80

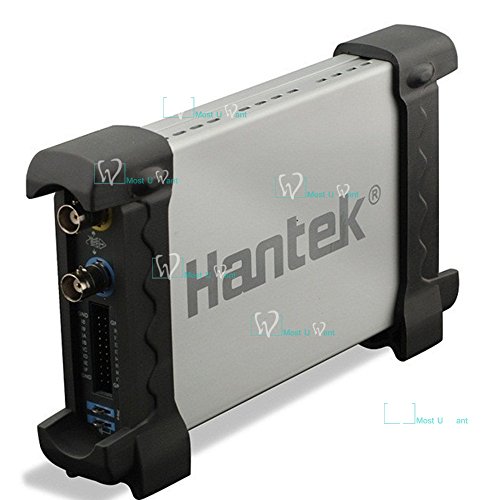

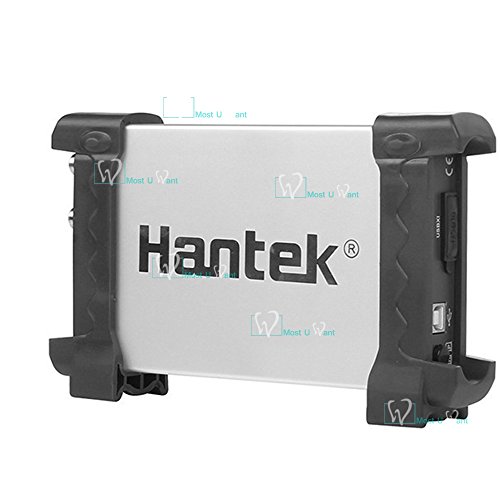

Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

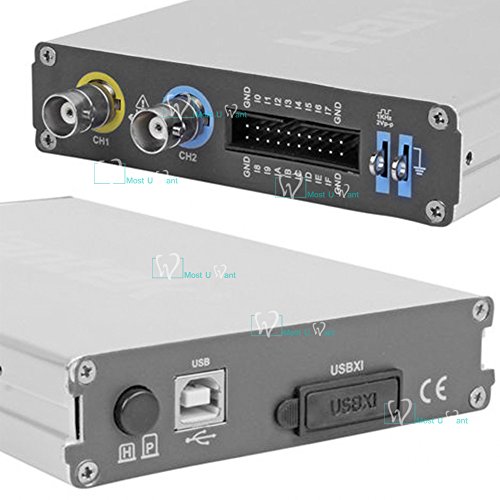

Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
USB2.0 interface, no external power source required, easy to use.
Be suitable for notebook computer, product line maintenance, be used easily on business.

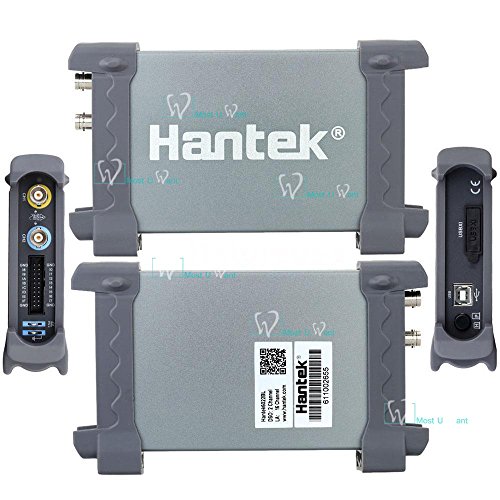

Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
High performance, 48MS/s real-time sampling, 20MHz bandwidth.
