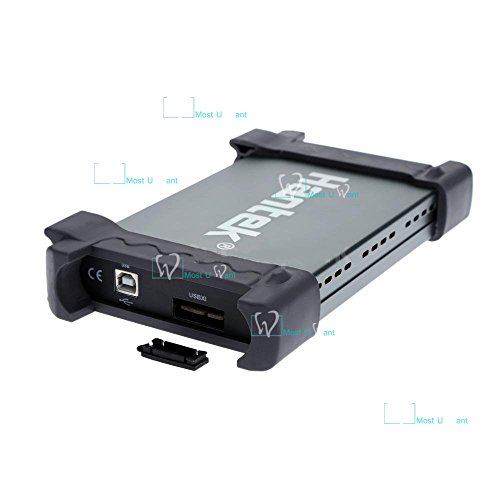

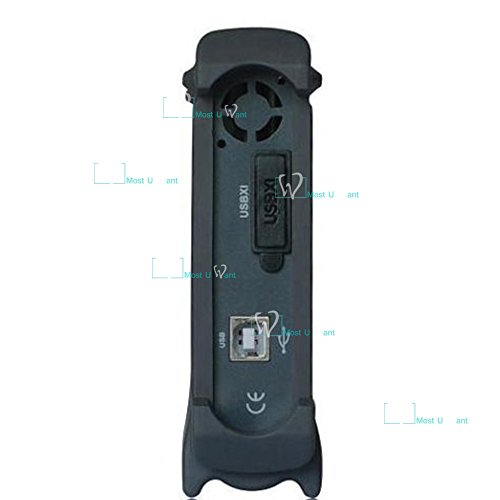

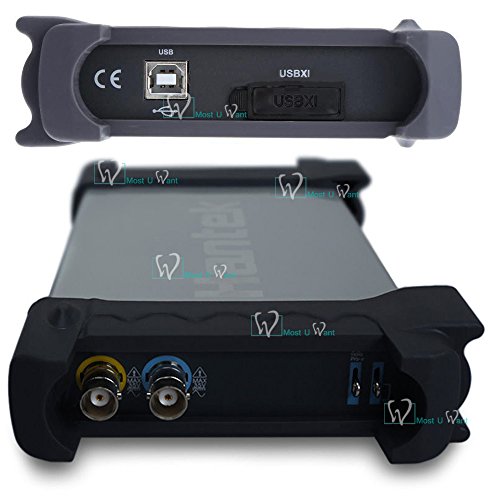

PCのUSBデジタルオシロスコープ USBXI 48MSa/s 20Mhz の帯域幅が2チャンネル

商品説明

Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.
23 measurement functions, PASS/FAIL Check, be suitable for technical application
Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.
Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
FFT
One computer can connect many DSO, extend channel easily.
Labview\VB\VC Second Design instance.

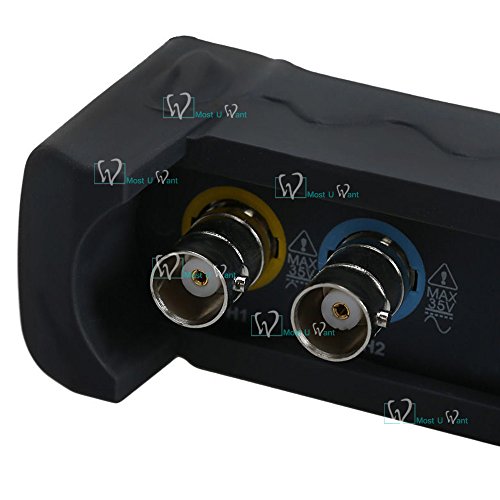

Channel 2 Channels
Bandwidth 20MHz
Shot bandwidth DC to 20MHz
Input Impandence 1MΩ 25pF
Max. Sample rate 48MS/s
Vertical resolution 8Bit
Gain range 20mV-5V, 8Steps
DC accuracy ±3%
Timebase range 1ns-9000s, 39 Steps
Vertical adjustable Yes
Input protection Diode clamping
X-Y Yes
Trigger Mode Auto, Normal and Single
Trigger Slope +/-
Trigger level adjustable Yes
Trigger Type Rising edge, falling edge
Trigger Source CH1, CH2
Pre/Post trigger 0-100%
Sampling selection Yes
Waveform Display port/line, waveform average, persistence, intensity
Network Open/Close
Vertical mode CH1, CH2, Dual, ADD
Cursor measurement Yes
Math FFT, addition, subtraction, multiplication, division.
Cursor Frequency, Voltage

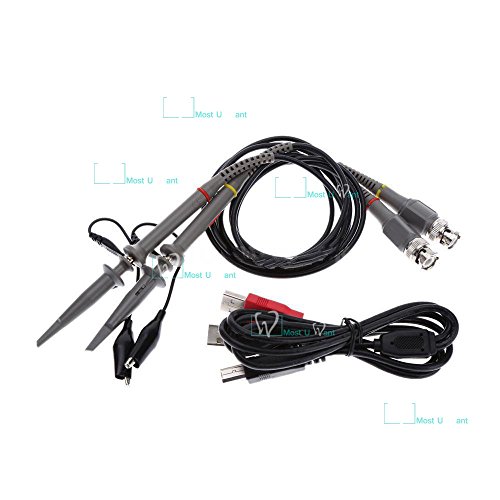

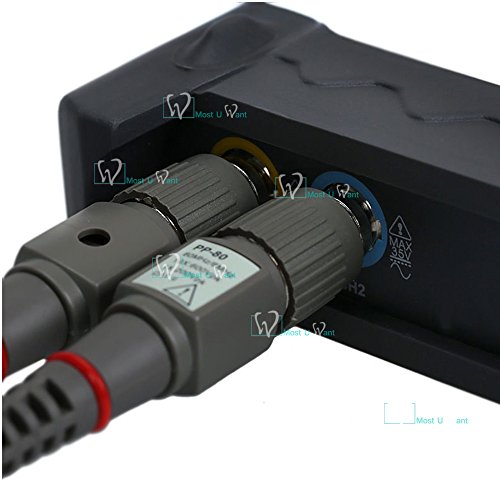

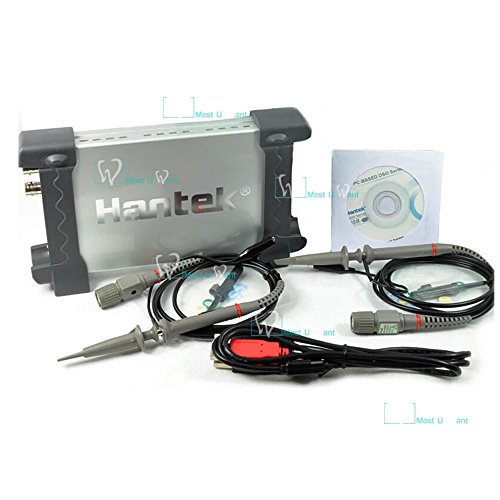

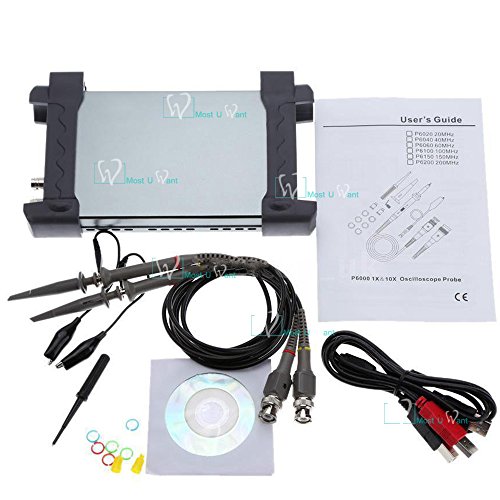

Accessories S/W CD, probes, manual, USB cord
