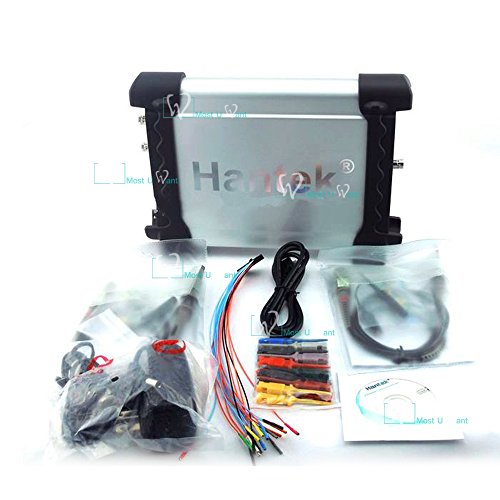

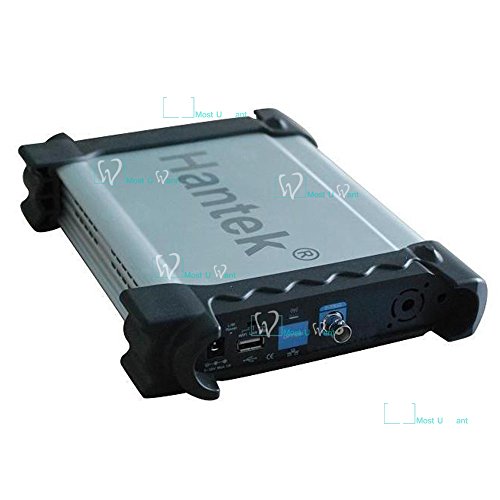

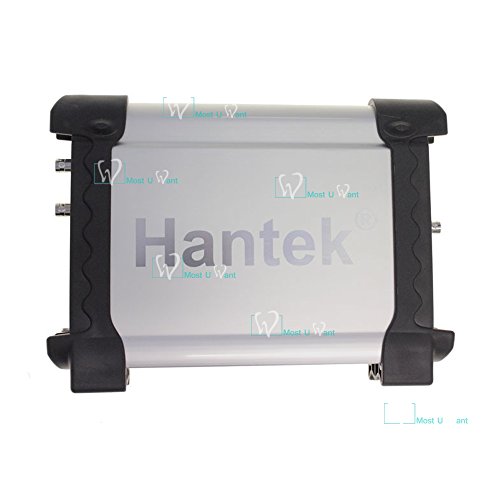

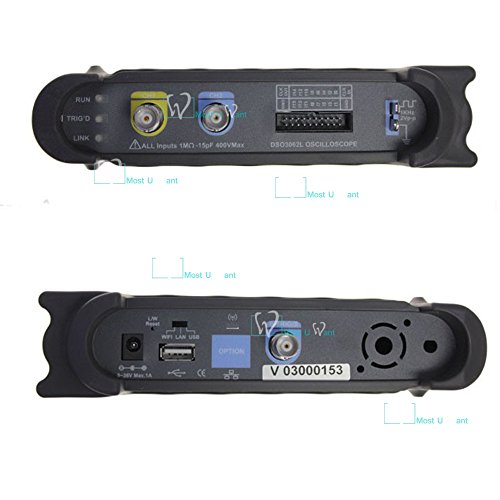

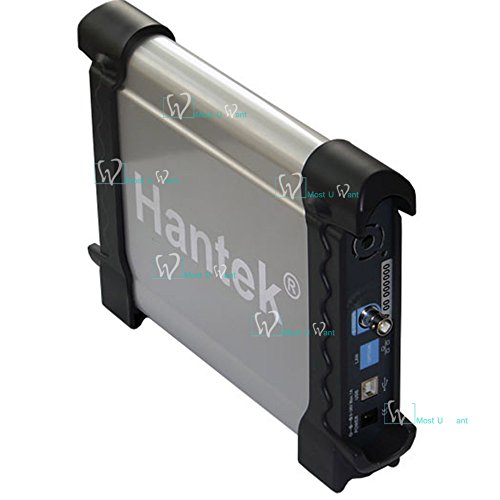

PCのUSB 4in1 デジタルオシロスコープ 自動車診断 200MS/s 60Mhz の帯域幅が 2チャンネル 16CHロジック・アナライザ スペクトル解析の周波数カウンタ

商品説明

Oscilloscope Mode
Vertical System
Analog Channels 2
Bandwidth 60MHz(-3dB)
Rise Time 5.8ns
Input Impedance Resistance: 1MΩ; Capacitance: 25 pF
Input Sensitivity 10mV/div to 5V/div
Input Coupling AC/DC/GND
Vertical Resolution 8 bits
Memory Depth 10K-16M/CH
Maximum Input 400V (DC+AC Peak)
Horizontal System
Real-Time Sampling Rate 200MS/s
Time BaseRange 5ns/div to 1000s/div(1-2-5 sequences)
Time Base Precision ±50ppm
Trigger System
Source CH1, CH2, EXT
Mode Edge,Pulse,Viedo,Alternative
X-Y MODE
X-Axis Input CH1
Y-Axis Input CH2
Phrase Shift Max.3 degree
Cursors and Measurement
Voltage Measurement
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement
Frequency,Period, Rise Time, Fall Time,PositiveWidth, Negative Width, Duty Cycle
Cursors Measurement Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process +,- , x,÷, FFT, Invert
AUTO SET Yes
Voltage Range 10mV to 5V/div @ x 1 probe;
100mV to 50V/div @ x 10 probe;
1V to 500V/div @ x 100 probe;
10V to 5000V/div @ x 1000 probe;
100V to 50000V/div @ x 10000 probe;
200mV to 100V/div @ 20:1
Current Range CC65(20A),CC65(60A),CC650,CC1100
FFT Rectangular, Hanning,Hamming, Blackman Window
Math Adition, subtraction, multiplication, division
Logic Analyzer Mode
High input impendence 200K(C=10p)
Input Voltage range -60V~60V
Logic threshold range -6~6V
Max Sample Rate 100MHz
Bandwidth 10MHz
Compatible input TTL, LVTTL, CMOS, LVCMOS,ECL, PECL, EIA
