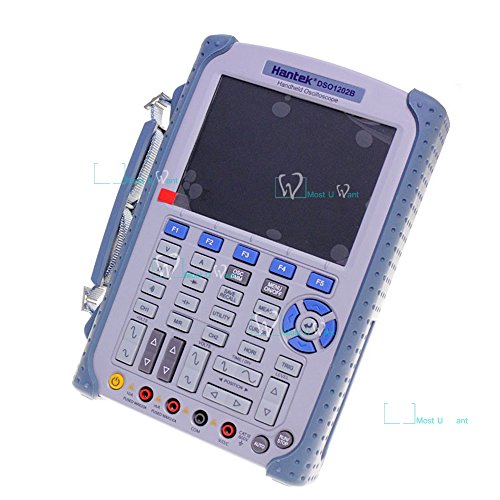

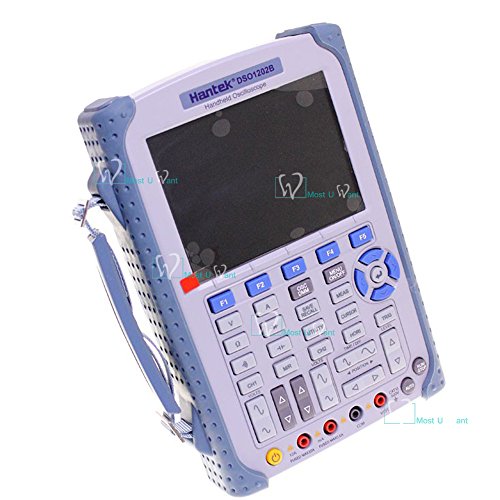

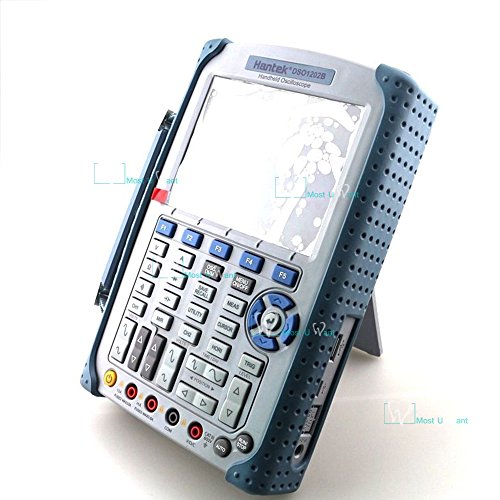

ハンドヘルドデジタルオシロスコープマルチメーター2チャンネル200MHz 1GS/S 1Mメモリー深度6000カウントDMMアナログバーグラフ5.6インチTFTカラーLCD

商品説明

Bandwidth 200MHz
Channel 2
Real-Sample Rate 1GSa/s
Equivalent Sample Rate 25GSa/s
Record Length 1M
Rish time ≤1.7ns
Timebase Accuracy ±50ppm
Time Base Range 2ns/div-40s/div
Input Impandance 1MΩ
VOLTS/DIV Range 2mV/div～5V/div
A/D Converter 8bit
Position Range ±50V(5V/div), ±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div), ±400mV(20mV/div～2mV/div)
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div.
Bandwidth Limit 20MHz

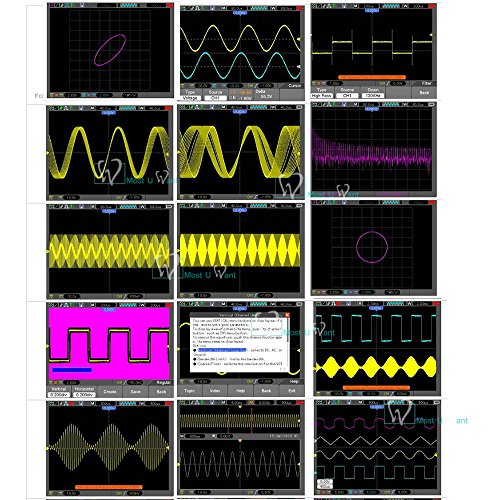

Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative

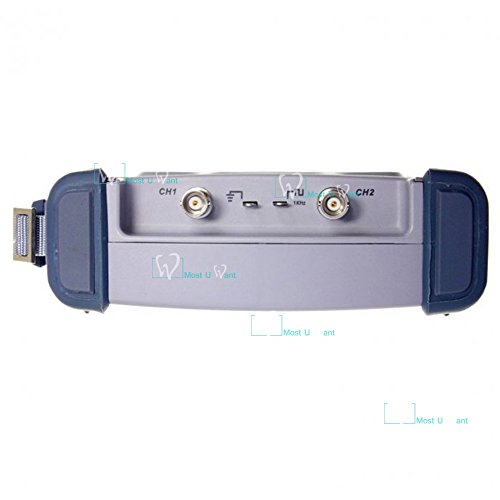

Trigger Source CH1, CH2
Math +, -, x, ÷, FFT, Invert
Cursor Measurement Voltage difference between cursors: △V;
Time difference between cursors: △T;
Reciprocal of △T in Hertz (1/ΔT);
Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
DMM Max. Resolution 6,000 Counts
Testing Modes Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage AC: 600V, DC: 800V
Max. Input Current AC:10A , DC: 10A
Max. Input Impandance 10MΩ
Display 5.6"TFT 16K Color Display, 640*480 dots
Size 245mm x 163mm x 52mm
Weight 1.3KG(Without Package)

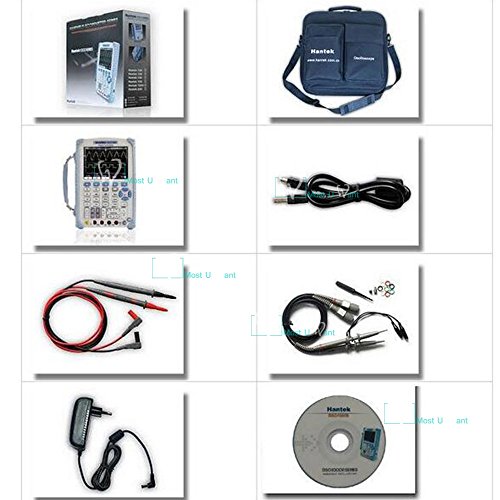

Standard Probe PP200x2
