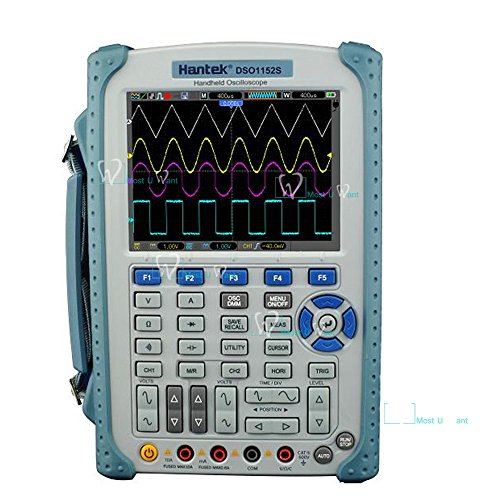

ハンドヘルドオシロスコープマルチメーター2チャンネル150MHz 1GS / S 1Mメモリー深度6000カウントDMMアナログバーグラフ5.6インチTFTカラーLCD絶縁レベル：1000V CATII、600V CATIII

商品説明

Bandwidth 60MHz
Channel 2
Real-Sample Rate 1GSa/s
Equivalent Sample Rate 25GSa/s
Record Length 1M
Rish time ≤5.8ns
Timebase Accuracy ±50ppm
Time Base Range 4ns/div-2ks/div
Input Impendence 1MΩ
VOLTS/DIV Range 2mV/div～5V/div
A/D Converter 8bit
Position Range ±50V(5V/div), ±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div), ±400mV(20mV/div～2mV/div);
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth Limit 20MHz
Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source CH1, CH2,
Math +,-,x,÷,FFT
Cursor Measurement Voltage difference between cursors: △V;
Time difference between cursors: △T;
The float voltage between BNC and Ground 600V CATIII, 1000V CAT II
The float voltage between each Channel 600V CATIII, 1000V CAT II
The float voltage between Multimeter and Ground 1000V
The float voltage between input Ports directly 400V CAT II
Input by 10:1 probe 600V CATIII, 1000V CAT II
DMM Max. Resolution 6,000 Counts
Testing Modes Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage AC: 600V, DC: 800V
Max. Input Current AC:10A , DC: 10A
Max. Input Impandance 10MΩ
Display 5.6"TFT 16K Color Display, 640*480 dots
Size 245mm x 163mm x 52mm
Weight 1.3KG(Without Package)
Standard Probe P7060 x 2
