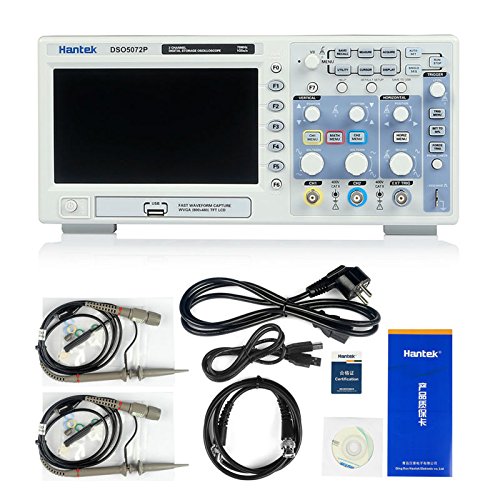

Hantek DSO5072P 70MHz 1GSa/s 2CH Digital Oscilloscope 40K 7" TFT Signal Waveform Real Time Sample Rate

商品説明

Features:
*70MHz bandwidths
*1GSa/s Real Time sample rate
*Large (7.0-inch) color display, WVGA(800x480)
*Record length up to 40K
*Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
*USB host and device connectivity, standard
*Multiple automatic measurements
*Four math functions, including FFTs standard
*Provides software for PC real-time analysis


Specifications:
*Model:DSO5072P
*Bandwidth:70MHz
*Channel:2
*Real-Time Sample:1GSa/s
*Equivalent Sample:25GSa/s
*Memory Depth:40K
*Rise Time:5ns
*Time Base Accuracy:±50ppm
*Time Base Range:2ns/div-40s/div
*Input Impendance:1MΩ
*VOLTS/DIV Range:2mV/div～5V/div
*A/D Converter:8 bit
*Position Range:±50V(5V/div),±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div),±400mV(20mV/div～2mV/div)
*DC Gain Accuracy: ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
*Bandwidth Limit:20MHz
*Trigger Types:Edge,Video,Pulse,Slope, Over time, Alternative
*Trigger Source:CH1,CH2,EXT,EXT/5, AC Line
*Math:+,-,x,÷,FFT
*Cursor Measurement:
Voltage difference between cursors: △V;
Time difference between cursors: △T;
Reciprocal of △T in Hertz (1/ΔT);
*Auto Measuerment:Frequency, Period, Mean,Pk-Pk,Cycli RMS,Minimum, Maximum,Rise time,Fall Time,+Pulse Width,-Pulse Width,Delay1-2Rise, Delay1-2Fall,+Duty,-Duty,Vbase,Vtop, Vmid,Vamp,Overshoot,Preshoot,Preiod Mean,Preiod RMS, FOVShoot, RPREShoot,BWIDTH,FRF
*Display:7" TFT 16K Color LCD,800*480 dots
