Hantek 高電圧絶縁プローブ測定 50MHz 7ns超過警告クリップ

商品説明

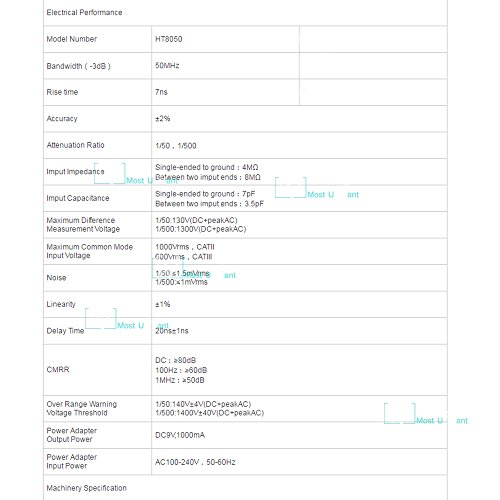

Electrical Performance
Bandwidth（-3dB） 50MHz
Rise time 7ns
Accuracy ±2%
Attenuation Ratio 1/50，1/500
Imput Impedance Single-ended to ground：4MΩ
Between two imput ends：8MΩ
Imput Capacitance Single-ended to ground：7pF
Between two imput ends：3.5pF
Maximum Difference Measurement Voltage 1/50:130V(DC+peakAC)
1/500:1300V(DC+peakAC)
Maximum Common Mode Input Voltage 1000Vrms，CATII
600Vrms，CATIII
Noise 1/50:≤1.5mVrms
1/500:≤1mVrms
Linearity ±1%
Delay Time 20ns±1ns
CMRR DC：≥80dB
100Hz：≥60dB
1MHz：≥50dB
Over Range Warning
Voltage Threshold 1/50:140V±4V(DC+peakAC)
1/500:1400V±40V(DC+peakAC)
Power Adapter
Output Power DC9V,1000mA
Power Adapter
Input Power AC100-240V，50-60Hz

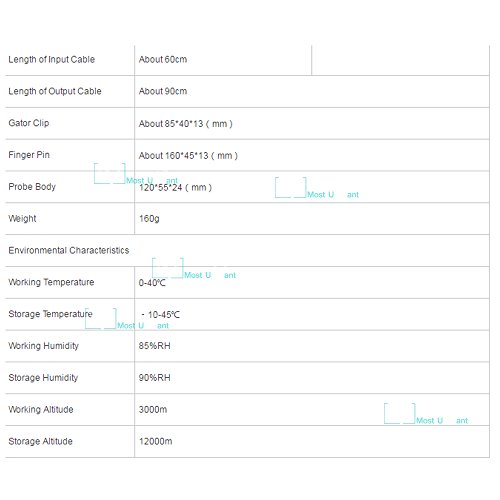

Machinery Specification
Length of Input Cable About 60cm About 30cm
Length of Output Cable About 90cm
Gator Clip About 85*40*13（mm）

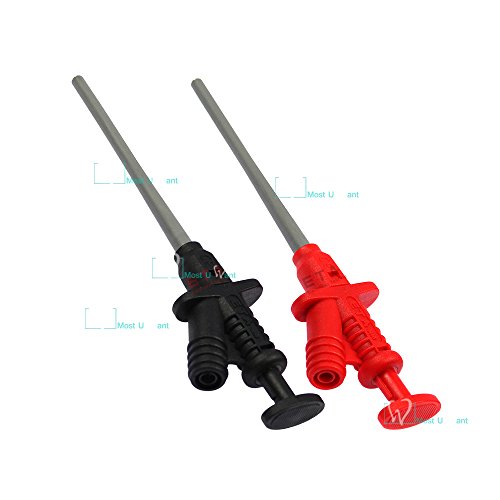

Finger Pin About 160*45*13（mm）
Probe Body 120*55*24（mm）
Weight 160g
Environmental Characteristics
Working Temperature 0-40℃
Storage Temperature ﹣10-45℃
Working Humidity 85%RH
Storage Humidity 90%RH
Working Altitude 3000m
Storage Altitude 12000m

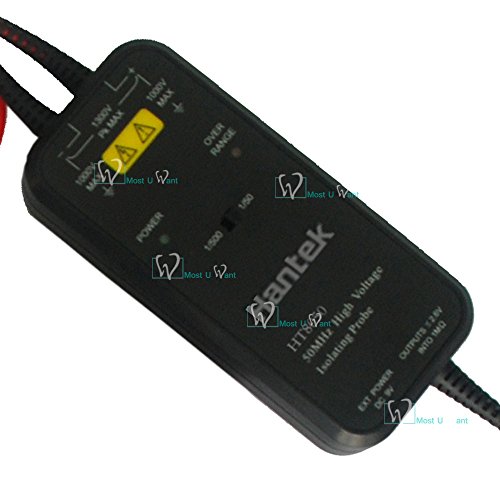

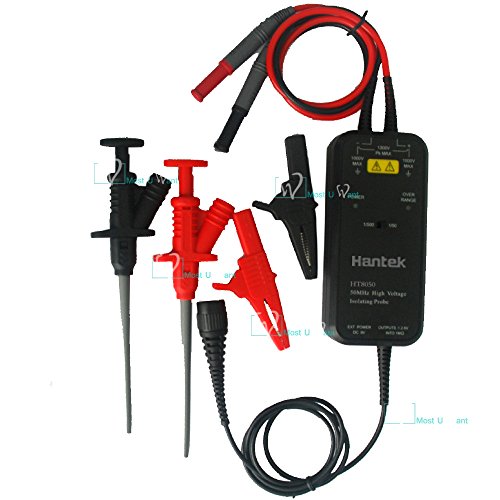

High voltage isolated probe adopts the differential input mode. It's mainly used in the place that needs high voltage isolation measurement.
This series high voltage isolated probe has two options of attenuation, 1/50 and 1/500. The difference module measurement range is 130V (DC+peakAC) and 1300V (DC+peakAC).
This series high voltage isolated probe has over range warning function, indicates by red LED light. This series high voltage isolated probe has small and nice appearance, firm and durable structure, good stability, reliability and accuracy.
