Kingduino Barometric Pressure Sensor - BMP085 Breakout

商品説明

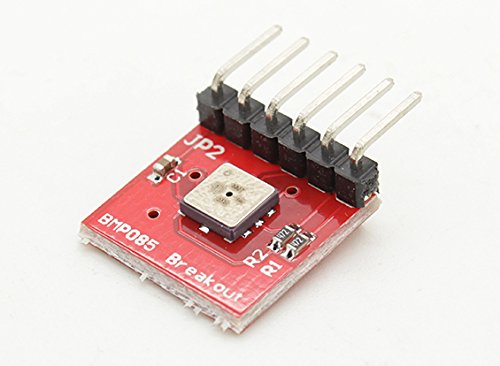

This is a simple breakout board for the BMP085 high-precision, low-power barometric pressure sensor. The BMP085 offers a measuring range of 300 to 1100 hPa with an absolute accuracy of down to 0.03 hPa. It's based on piezo-resistive technology for EMC robustness, high accuracy and linearity as well as long term stability. This sensor supports a voltage supply between 1.8 and 3.6VDC. It is designed to be connected directly to a micro-controller via the I2C busThis breadboard-friendly board breaks out all pins of the BMP085 to a 6-pin 0.1' pitch header. The analog and digital supplies (VDDD and VDDA) of the BMP085 are tied together and broken out to a single pin. We've also put two 4.7k pull-up resistors on the I2C lines.Features: Digital two wire (I2C) interface Wide barometric pressure range Flexible supply voltage range Ultra-low power consumption Low noise measurement Fully calibrated Temperature measurement included Ultra-flat, small footprintSpecs:Dimensions: 15.5x15.5x3mmWeight: 0.8g*Note: This is not an original Arduino brand product.
