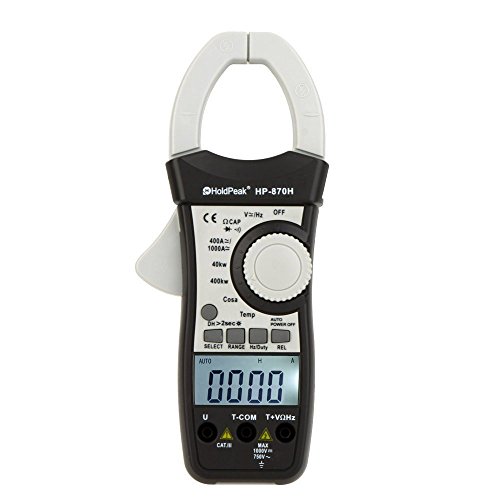

HoldPeak HP-870H Clamp Meter Voltage Current Resistance Capacitance Frequency Temperature Digital Multimeter Power Factor High Voltage
- メーカー
- HoldPeak
- JAN
- 6984377900085
- メーカー品番
- HP-870H
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
HoldPeak HP-870H WATT Power Measurement Dual Display AC/DC Clamp Meter Voltage Current Resistance Capacitance Frequency Temperature Tester
This LCD Auto Range & Auto Powr off Digital AC/DC WATT clamp multi meter is a portable, 3 3/4-difit multi meter. It is ideally suited for field, laboratory, shop and home applications.
Technical Specifications
Model: HP-870H
Active Power: 20kW～400kW
Power Factor: 0.3～1.0
DC Voltage: 400mV～1000V
AC Voltage: 400mV～750V
DC Current: 400A～1000A
AC Current: 400A～1000A
Resistance: 400Ω～40MΩ
Capacitance: 40nF～200μF
Temperature: -20℃～1000℃
Frequency: 5.12Hz～100kHz
Duty Cycle: 0.1%～99.9%
Features:
Display: 3999
Range Select: Auto
Automatic Polarity Indication: Yes
Over Range Indication: Yes
Low Battery Indication: Yes
Auto Power Off: Yes
Diode Test: Yes
Continuity Buzzer: Yes
Data Hold: Yes
Back Light: Yes
Relative Value: Yes
Dual Display: Yes
Clamp Opening Size: 45mm
General Characteristic:
Battery Type: 9V(6F22) * 1（Battery not included in the package）
Dimension: 225 * 97 * 40mm
Item Weight: 450g
特記事項
- AC/DC Clamp Meter Voltage Current Resistance Capacitance Frequency Temperature Tester
- The instrument set current and power measurement
- Powerful measurement and data processing software
- Applicable to the field of power equipment and power supply line measurement and mai
