HoldPeak 770C Digital LCD Multimeter With Diode, hFE And Continuity Test – This Multi Tester is For Electronic Measurement With Data Hold And Backlight
- メーカー
- HoldPeak
- JAN
- 6910088225124
- メーカー品番
- HP-770C
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Function:
Accurately measures AC/DC Voltage; AC/DC Current; Resistance, Capacitor, Inductance, Temperature, Frequency
Transistor hFE Test/ Non Contact AC Voltage (NCV) Test/ Diode assembly Test
Features Data Hold, Auto Power Off, Auto Back Light and Continuity Buzzer
With Function Switch Indication Lamp and Mechanical Blocking System
Specifications:
DC Voltage Range: 200mV ~ 1000V ; AC Voltage Range:2V ~750V
DC Current Range: 2mA ~20A ; AC Current Range: 2mA ~ 20A
Capacitor: 20nF ~200¦ÌF
Resistance Range: 200¦¸ ~ 20M¦¸
Temperature :-20¡æ¡«1000¡æ
Frequency:200kHz
Display:1999
General Features:
Weight: 0.77 pounds
Dimension: 7.68 x 3.46 x 1.57 inches

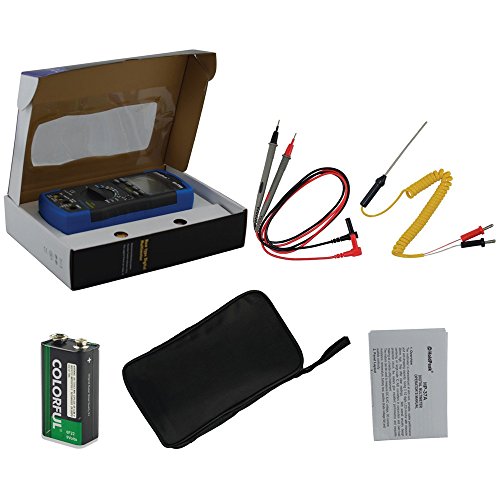

Package List :
HP-770C Digital Multimeter x 1
User Manual x 1
Temperature Test Probe x1
Test Leads x1
Carry Bagx1
1.5V Battery x2
特記事項
- AC/DC 1000V/20A 200KHz 200uF 20Mohm hFE Diode Check Continuity
- LED / Sound Warning when incorrect banana jacks are used relative to function switch setting
- Manual Ranging with Relative measurement (all ranges except frequency)
- All range fused (resettable) with 1 Year Warranty
- Auto power off (could be disabled), Auto Back Light & LED Back-lit LCD display
