HoldPeak 90EPD Digital Auto-ranging Mobile APP DMM Multimeter With Diode And Continuity Test - This Multi Tester is For Electronic Measurement With Auto Backlight, Data Hold
- メーカー
- HoldPeak
- JAN
- 6910088225216
- メーカー品番
- HP-90EPD
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

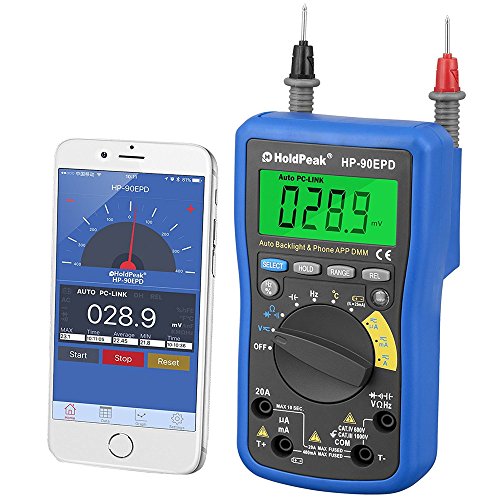

The HOLDPEAK 90EPD Auto Mobile APP DMM Multimeter is designed for both commercial and residential applications. It is an auto ranging meter for measuring AC/DC current and voltage, resistance, capacitance, frequency, temperature and duty cycles in commercial, home repair, automotive and electrical testing applications. It comes with non-contact voltage detection, a bright large backlit LCD display feature and also features Data Hold and Auto Back-Light, Relative Measurement, Mobile APP connection.
Specifications
Safety/Compliances: IEC61010 CAT.III 1000V, CAT.IV 600V overvoltage and double insulation standard
Display: Maximum reading 4000, analogue bar graph 41 segments
Range selection: Auto
Overload display: Display OL
DC voltage: 400mV/4V/40V/400V (??0.5%), 1000V (??0.8%)
AC voltage: 400mV (??1.2%), 4/40/400V (??0.8%), 750V (??1.2%)
DC current: 400uA/4000uA/40mA/400mA (??1.2%), 4/20A (??2.0%)
AC current: 400uA/4000uA/40mA/400mA (??1.5%), 4/20A (??2.5%)
Capacitance: 51.2nF (??3.0%), 512nF/5.12uF/51.2uF (??2.5%), 100uF (??5.0%)
Resistance: 400ohm/4k/40k/400k/4Mohm (??1.0%), 40Mohm (??1.5%)
Frequency range: 5.12Hz ¡§C 5.12MHz (??0.1%)
Diode test: Yes
Continuity test: Yes
Non-contact voltage detection: Yes
Relative Value: Yes
Mobile APP: Yes
Dimensions: 6.6?¡À x 3.48 x 2.36
Power: 9V 6F22 battery
Weight: 0.71 lb
Package Includes
1 x HOLDPEAK 90EPD Digital Mobile APP DMM Multimeter
1 x Test Leads
1 x Temperature Test Probe
1 x PC Link Software CD
1 x USB
1 x Carrying Case
1 x Operating Manual
1 x 9V 6F22 battery
特記事項
- Mobile phone APP Multimeter HP-90EPD is a new design meter work with a prefessional APP.
- No need to hold the meter,you can contral the functions and see the datas from distance,very convient and faster measuring.
- The multimeter is characterized at slim size, portable, stable performance and anti-dropping capacity.
- Using 4000 counts digit LCD monitor with character 22mm high, they offer clear readings.
- The meters can be used to measure DC & AC voltage,DC & AC current
