HoldPeak 90EPC Digital LCD Auto Multimeter with USB, Diode and Continuity Test- Multi Tester for Electronic Measurement with Backlight and Data Hold (CE,ISO,ROHS,GMC)
- メーカー
- HoldPeak
- JAN
- 6910088225162
- メーカー品番
- HP-90EPC
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

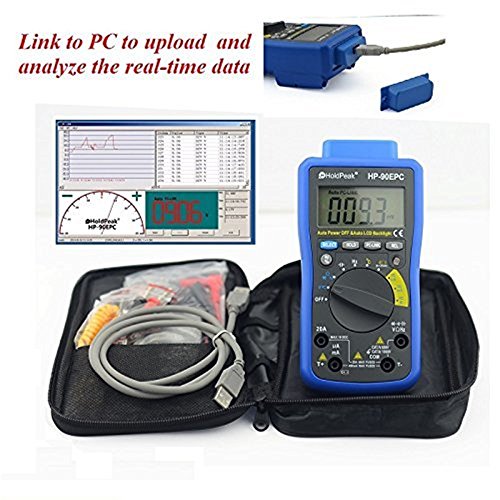

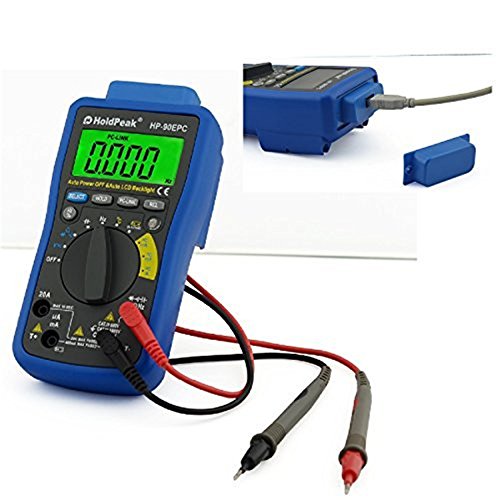

The HOLDPEAK 90EPC Auto / Manual Ranging Multimeter is designed for both commercial and residential applications. It is an auto/manual ranging meter for measuring AC/DC current and voltage, resistance, capacitance, frequency, temperature and duty cycles in commercial, home repair, automotive and electrical testing applications. It comes with non-contact voltage detection, a bright large backlit LCD display and auto power-off feature and also features Data Hold and Auto Back-Light, Relative Measurement, USB Port, Telephone Line Test(RJ11), Network Cable Test(RJ45).
Specifications
Safety/Compliances: IEC61010 CAT.III 1000V, CAT.IV 600V overvoltage and double insulation standard
Display: Maximum reading 3999, analogue bar graph 41 segments
Range selection: Auto or Manual
Overload display: Display OL
DC voltage: 400mV/4V/40V/400V (¡À0.5%), 1000V (¡À0.8%)
AC voltage: 400mV (¡À1.2%), 4/40/400V (¡À0.8%), 750V (¡À1.2%)
DC current: 400uA/4000uA/40mA/400mA (¡À1.2%), 4/20A (¡À2.0%)
AC current: 400uA/4000uA/40mA/400mA (¡À1.5%), 4/20A (¡À2.5%)
Capacitance: 51.2nF (¡À3.0%), 512nF/5.12uF/51.2uF (¡À2.5%), 100uF (¡À5.0%)
Resistance: 400ohm/4k/40k/400k/4Mohm (¡À1.0%), 40Mohm (¡À1.5%)
Frequency range: 5.12Hz ¨C 5.12MHz (¡À0.1%)
hFE: Yes
Diode test: Yes
Continuity test: Yes
Non-contact voltage detection: Yes
Relative Value: Yes
USB Port: Yes
Dimensions: 6.6¡± x 3.48 x 2.36
Power: 9V 6F22 battery
Weight: 0.71 lb
Only woks with Windows XP & Win7.

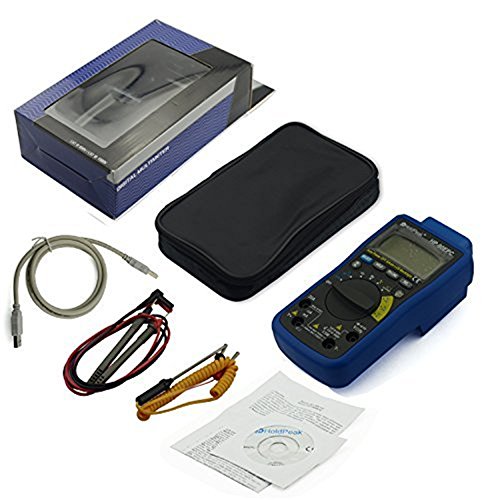

Package Includes
1 x HOLDPEAK 90EPC Digital Multimeter
1 x Test Leads
1 x Temperature Test Probe
1 x PC Link Software CD
1 x USB
1 x Carrying Case
1 x Operating Manual
1 x 9V 6F22 battery
特記事項

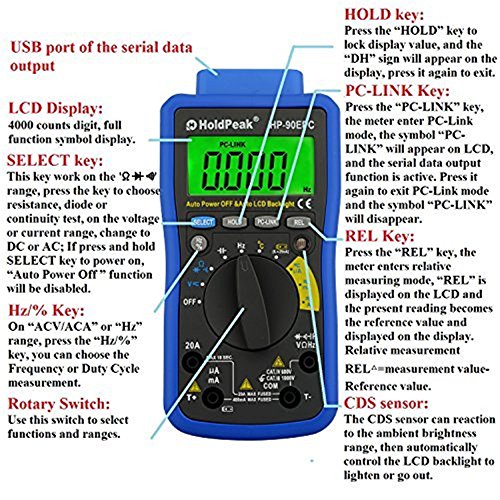

- Non Contact Voltage Test(NCV): When the detection of voltage is greater than 90V(RMS), keep close to the conductor, the instrument sensor will light and buzz.
- Over Load Protection & Continuity Test: Use the PTC protection circuit for resistance, temperature and frequency measurement. If measured resistance less than 100Ω, the buzzer will sound.
- Auto-Ranging & Auto-Power Off: 4000 counts auto-ranging multimeter accurately measure AC/DC voltage, current, frequency, resistance, capacitance, diode.
- Low Battery Indication & Blacklit LCD: 3 1/2 digit LCD display for visibility in dimly lit areas. Feature a low battery indicator so you never accidentally run out of juice.
