HoldPeak 770A Digital LCD Multimeter With Diode, hFE And Continuity Test – This Multi Tester is For Electronic Measurement With Data Hold And Backlight

商品説明

The HOLDPEAK HP-770A Digital Multimeter is a practical tool for electricians, hobbyists, and general household use. It is easy to operate and features many different functions for measuring current, voltage, and resistance, as well as continuity, transistor, and diode testing. It can be used to diagnose, assemble, and repair circuitry and wiring. Other features include a low battery indicator, continuity buzzer, and overload protection.
Features
1. Accurately measures current, voltage, resistance, and more

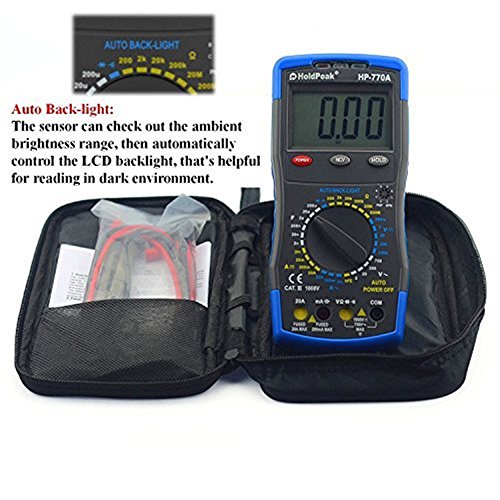

2. Backlit LCD with large digits for visibility in dimly lit areas
3. Includes 9V battery and pair of test leads
4. Small size for portability - Perfect for use while on the go
5. Displays results quickly with 2-3 readings per second update speed
Specifications
Safety/Compliances: IEC61010 CAT.I 600V, CAT.II 300V, double insulation
Max.display: 1999, 3 1/2 digits
Range selection: Manual ranging
Overload display: Display OL
DC Voltage: 200mV-1000V
AC Voltage: 2V-750V
DC Current: 2mA-20A
AC Current: 2mA-20A
Resistance: 200Ω-200MΩ
Diode Test: Yes
Continuity Test: Yes
Square Wave Output: Yes
Dimensions: 195 x 88 x 40mm
Power: 1 x 9V 6F22

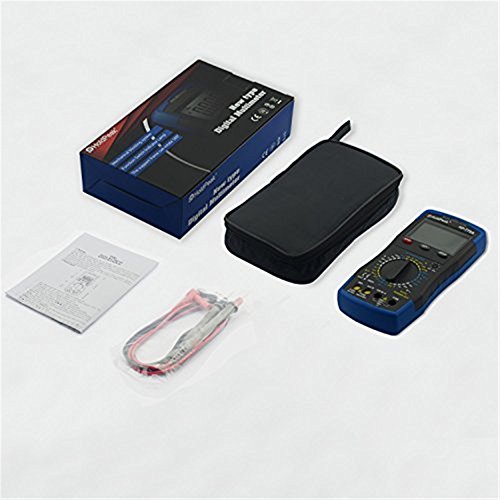

Package Includes
1 x HOLDPEAK HP-770A Digital Multimeter
2 x Test Leads (pair)
1 x 9V Battery
1 x User's Manual
