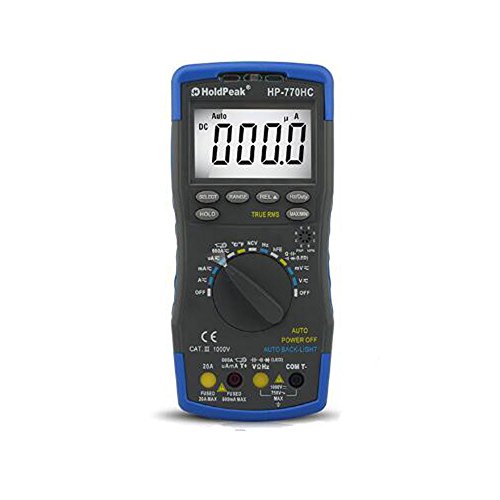

HoldPeak 770HC Digital Multimeter with Ohm Volt Amp and Diode Test

商品説明

The Holdpeak 770HC Multimeter is designed to safely and accurately troubleshoot a variety of automotive and household electrical problems. It's easy and safe to operate and features many different functions for measuring current, voltage, and resistance, as well as continuity, transistor, and diode testing, which is both for automotive and household uses. Use this multimeter for: household outlets, fuses, wiring, general-purpose batteries, vehicle battery and charging system, automotive circuits and more.
The grip of the multimeter is can be used to diagnose, assemble, and repair circuitry and wiring. Other features include a low battery indicator, continuity buzzer, and overload protection.
Specifications
Max.display: 6000
Range selection: Auto ranging
Overload display: "1" is displayed
Sampling Speed: 2 times per second
Low Battery Indication
Power: 2 x 1.5V AA Batteries Included
Diode Test: Yes
Continuity Test: Yes
Square Wave Output: Yes
Dimensions: 7.5" x 3.4" x 1.6"
Safety/Compliances: IEC61010 CAT.I 600V, CAT.II 300V, double insulation
DC Voltage: 600mV~1000V
AC Voltage: 60mV~750V
DC Current: 600uA~600A
AC Current: 600uA~600A
Resistance: 600Ω~60MΩ
Capacitance: 9.9999nF~99.99mF
Frequency: 9.999Hz~9.999MHz
Temperature: -20~1000C

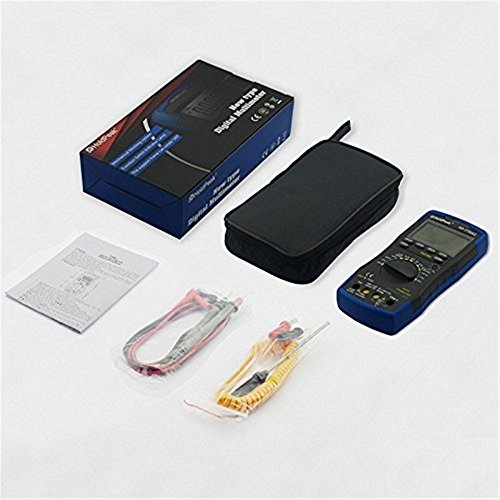

Package Includes
1 x Holdpeak 770HC Digital Multimeter
2 x 1.5V AA Battery
1 x Test Leads
1 x User Manual
1 x Temperature Probe
1 x Carrying Bag
