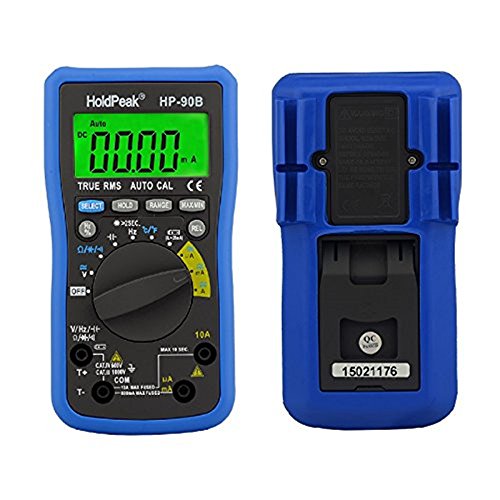

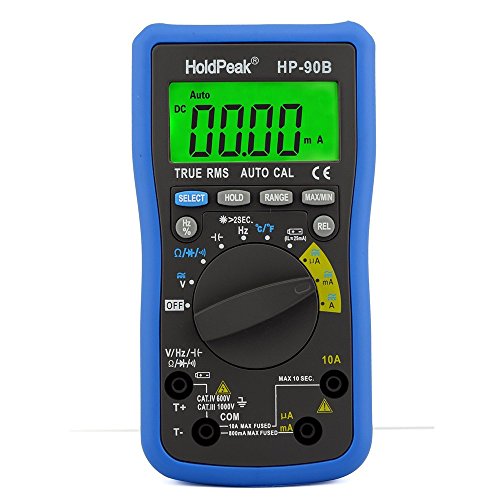

HoldPeak 90B Digital LCD Auto-ranging Multimeter With Diode And Continuity Test – For Electronic Measurement With Data Hold And Backlight In School, Laboratory, Factory And Other Social Field

商品説明

The HOLDPEAK 90B Auto / Manual Ranging Multimeter is designed for both commercial and residential applications. It is an auto/manual ranging meter for measuring AC/DC current and voltage, resistance, capacitance, frequency, and duty cycles in commercial, home repair, automotive and electrical testing applications. It comes with non-contact voltage detection, a bright large backlit LCD display and auto power-off feature and also features Data Hold and Max/Min Reading.
Specifications
Safety/Compliances: IEC61010 CAT.III 1000V, CAT.IV 600V overvoltage and double insulation standard
Display: Maximum reading 6000, analogue bar graph 41 segments
Range selection: Auto or Manual
Overload display: Display OL
DC voltage: 600mV (¡À1.2%), 6/60/600V (¡À0.8%), 1000V (¡À1.5%)
AC voltage: 600mV (¡À2.5%), 6/60/600V/750V (¡À1.0%)
DC current: 600uA/6000uA/60mA/600mA (¡À1.0%), 6/10A (¡À1.5%)
AC current: 600uA/6000uA/60mA/600mA (¡À1.5%), 6/10A (¡À2.0%)
Capacitance: 9.999nF (¡À3.0%), 99.99nF/999.9nF/9.999uF (¡À2.5%), 99.99uF/999.9uF (¡À3.0%), 9.999mF/99.99mF (¡À3.5%)
Resistance: 600ohm/6k/60k/600kohm (¡À1.2%), 6Mohm (¡À1.5%), 60Mohm (¡À2.5%)
Frequency range: 9.999Hz ¨C 9.999MHz (¡À0.5%)
hFE: Yes
Diode test: Yes
Continuity test: Yes
Non-contact voltage detection: Yes
Dimensions: 6.6¡± x 3.48 x 2.36

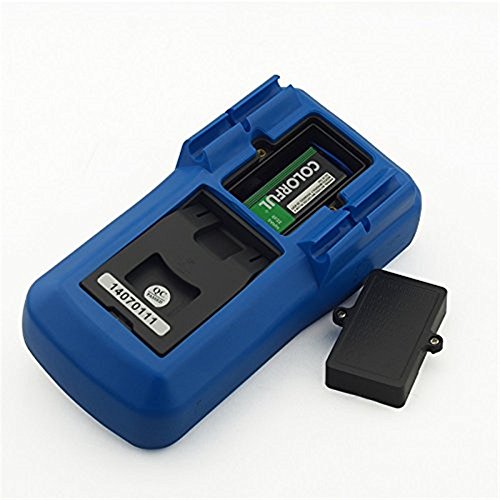

Power: 9V 6F22 battery
Weight: 0.71 lb

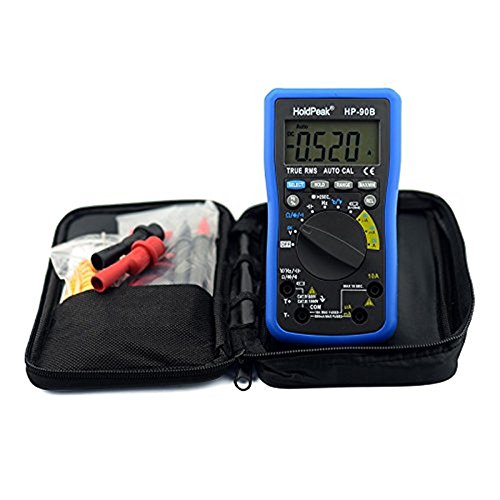

Package Includes
1 x HOLDPEAK 90B Digital Multimeter

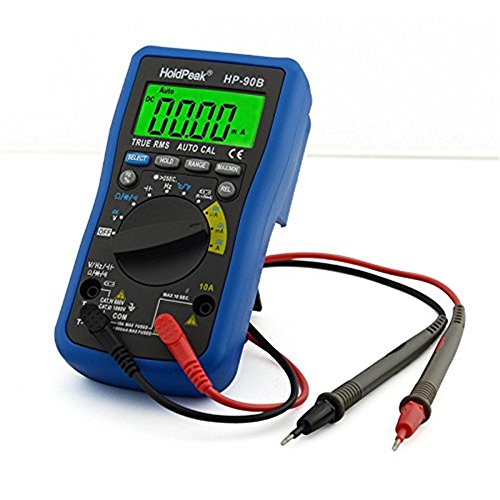

1 x Test Leads
1 x Temperature Test Probe
1 x Carrying Case
1 x Operating Manual
1 x 9V 6F22 battery
