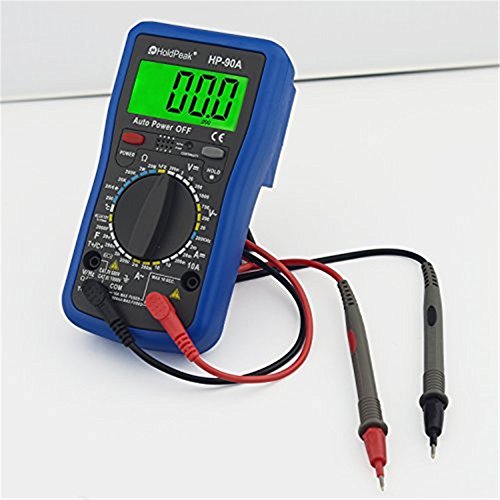

HoldPeak HP-90A Digital Multimeter Meter with Battery Test and Duty Cycle/Capacitance/Temperature/Frequency Test

商品説明

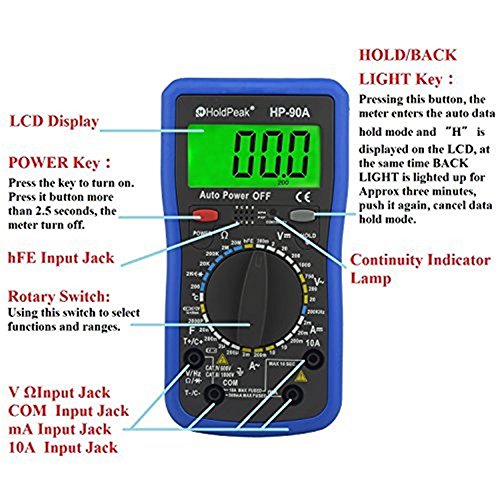

90A Manual Ranging Multimeter is designed for both commercial and residential applications. It is an manual ranging meter for measuring AC/DC current and voltage, resistance, capacitance, frequency in commercial, home repair, automotive and electrical testing applications. It comes with non-contact voltage detection, a bright large backlit LCD display and auto power-off feature and also features Data Hold.
Specifications
Safety/Compliances: IEC61010 CAT.III 1000V, CAT.IV 600V overvoltage and double insulation standard
Display: 1999, analogue bar graph 41 segments
Range selection: Manual
Overload display: Display OL
DC voltage: 200mV/2V/20V/200V/1000V (¡À0.5%), 1000V (¡À1.5%)
AC voltage: 20V/200V (¡À1.5%), 750V (¡À2.5%)
DC current: 2mA/20mA (¡À0.8%), 200mA (¡À1.2%), 10A (¡À2.0%)
AC current: 2mA (¡À1.0%), 200mA (¡À2.0%), 10A (¡À3.0%)
Capacitance: 2000pF/20nF/200nF/2?F/0~100?F (¡À2.5%), 100~200?F (¡À6.0%)
Resistance: 200ohm (¡À1.2%), 2k/20k/200kohm (¡À0.8%), 2M/20Mohm (¡À2.5%)
Frequency range: 200kHz (¡À3.0%)
hFE: Yes
Diode test: Yes
Continuity test: Yes
Non-contact voltage detection: Yes
Dimensions: 6.6¡± x 3.48 x 2.36

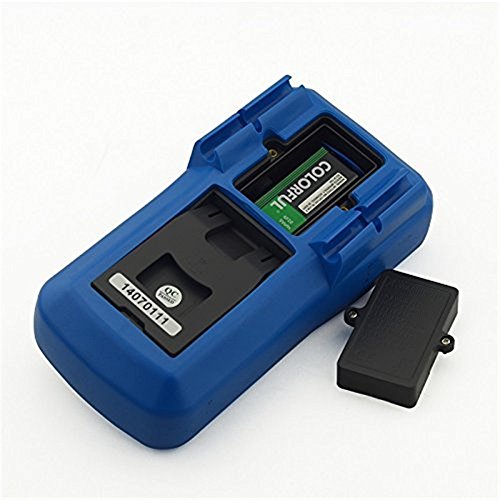

Power: 9V 6F22 battery
Weight: 0.71 lb

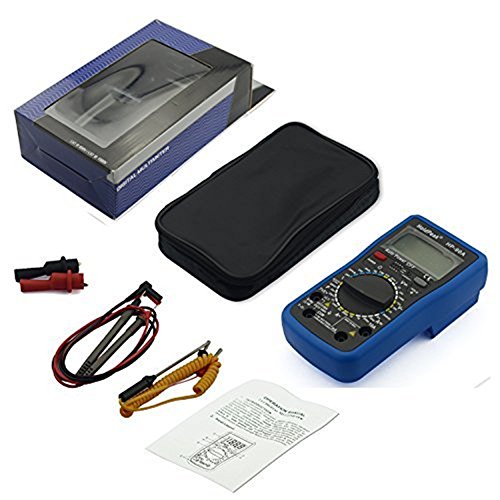

Package Includes
1 x HOLDPEAK 90A Digital Multimeter
1 x Test Leads
1 x Temperature Test Probe

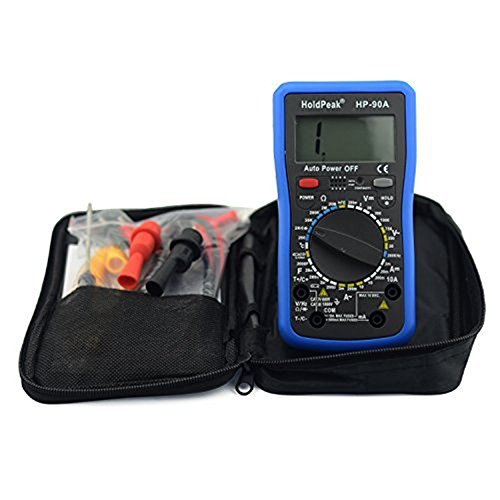

1 x Carrying Case
1 x Operating Manual
1 x 9V 6F22 battery
