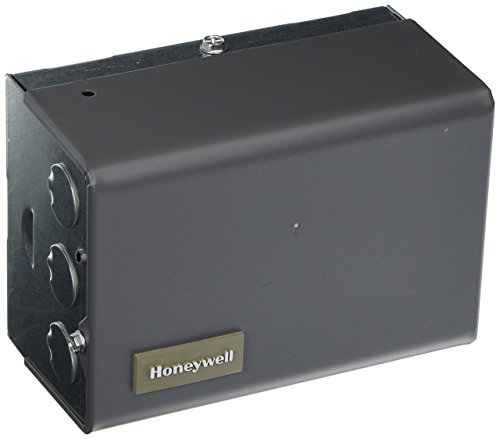

Honeywell L8124C1003 Triple Aquastat Relay High 10F Fixed: Low 10-25F [並行輸入品]

商品説明

Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service. Description Triple Aquastat Relay with High limit : 10 F fixed; low limit: 10-25 F adj. Differential Application Triple Aquastat Relay with High limit Operating Range, Low Limit (F) 110 F to 220 F Operating Range, Low Limit (C) 43 C to 104 C Operating Range, High Limit (F) 130 F to 240 F Operating Range, High Limit (C) 54 C to 116 C Differential Temperature (F) High limit : 10 F fixed; low limit: 10-25 F adj. Switching Action SPST: High & Low Limit Maximum Safe Operating Pressure (psi) 200 psi on outside of immersion well, 100 psi on capsule if inserted directly. Maximum Safe Operating Pressure (kPa) 1378 kPa on outside of immersion well, 690 kPa on capsule if inserted directly. Electrical Ratings (burner AFL) Line Voltage: 7.4 A @ 120 Vac; 3.7 A @ 240 Vac Electrical Ratings (burner ALR) Line Voltage: 44.4 A @ 120 Vac; 22.7 A @ 240 Vac Electrical Ratings (circulator AFL) 3.7 A @ 240 Vac Electrical Ratings (circulator AFL) 7.4 A @ 120 Vac Electrical Ratings (circulator ALR) 22.7 A @ 240 Vac Electrical Ratings (circulator ALR) 44.4 A @ 120 Vac Voltage 120 Vac Frequency 60 Hz Dimensions (in.) 4 3/8 in. high x 6 1/8 in. wide x 3 1/16 in. deep Dimensions (mm) 111 mm high x 156 mm wide x 78 mm deep Mounting Horizontal Operating Humidity Range (% RH) 0 to 95% RH, non-condensing Maximum Ambient Temperature (F) 150 F at switches; 265 F at sensing element Maximum Ambient Temperature (C) 66 C at switches, 129 C at sensing element. Minimum Ambient Temperature (F) -30 F Minimum Ambient Temperature (C) -9 C Electrical Connections Quick-Connect / Screw
