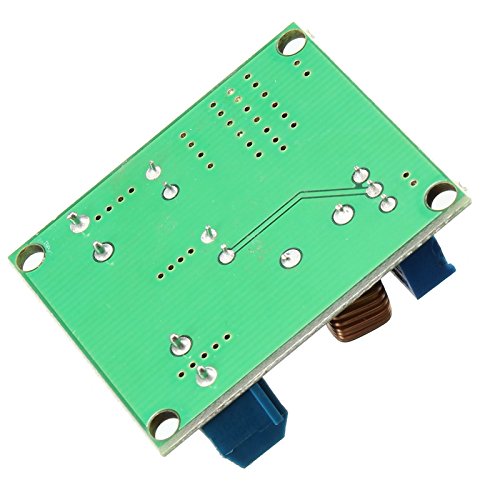

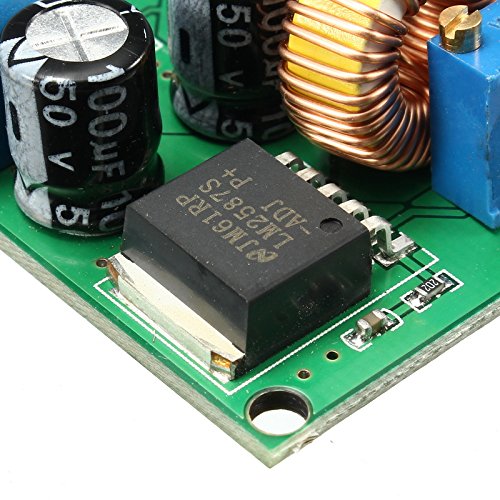

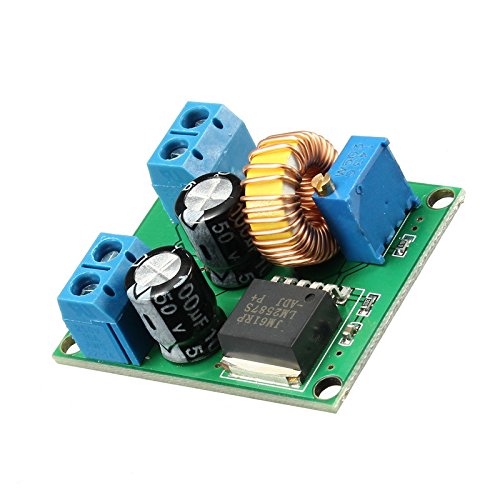

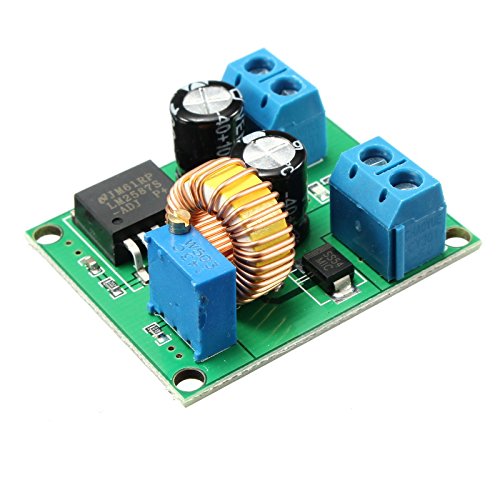

ILS - 3 pieces DC-DC 3V-35V To 4V-40V Step Up Power Module Adjustable Boost Converter Adjustable Voltage Board 3V 5V 12V To 19V 24V 30V 36V

商品説明

Description:

Input Voltage: DC 3V-35V
Output Voltage: DC 4V-40V (continuously adjustable)
Efficiency:
%(MAX)
Size: L37mm*W32mm*H15mm
Working Temperature: -40-+85 degrees
Load capacity: Max 80W

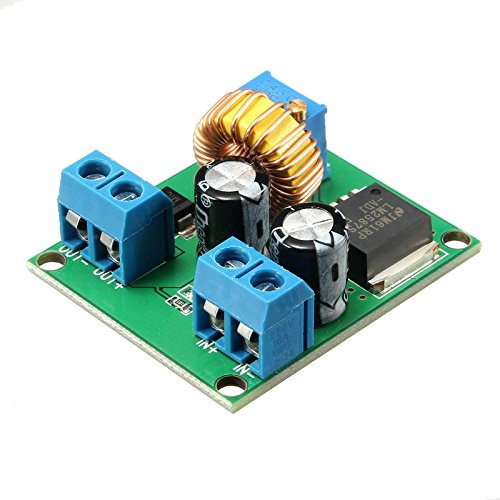

The way of Connection: the connection terminal does not need to be soldered, the "IN" is the input, and the "OUT" is the output.

Note:

When the output voltage is closer to the output voltage,the carrying capacity is higher,and the efficiency is also higher.

Measurement reference table:

Input voltageOutput voltageMaximum output currentPower3V5V1A5W5V12V1A12W5
1.5A13.5
12V2A24W12V
1.5A28.5W12V24V1.2A28.8W
24V2A48W24V30V2A60W30V35V2A70W
Package included:

3 xDC-DC 3V-35V To 4V-40V Step Up Power Module
