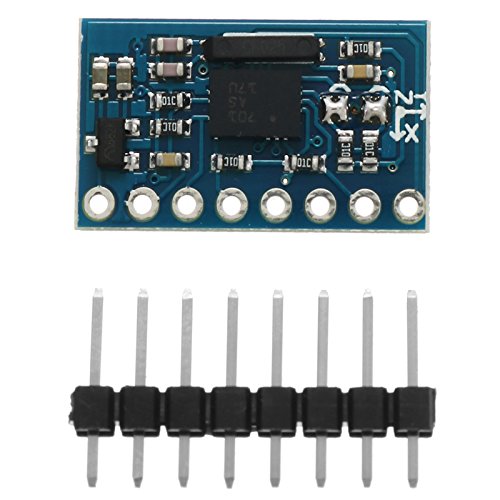

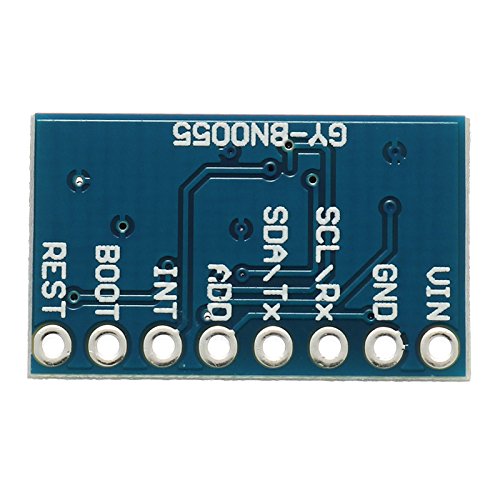

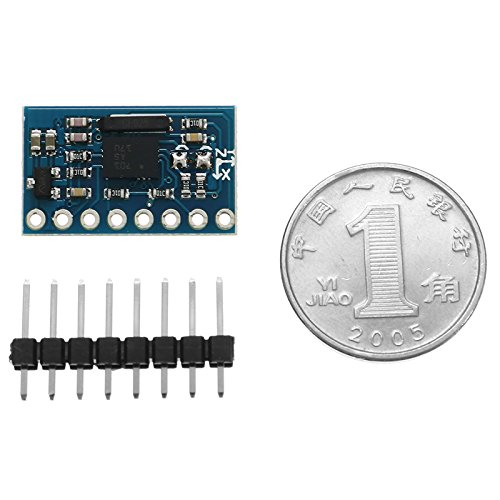

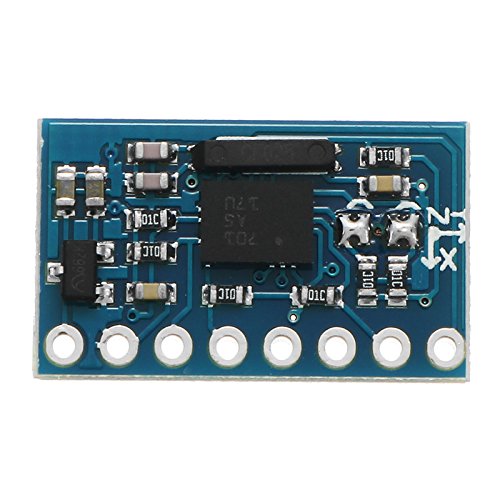

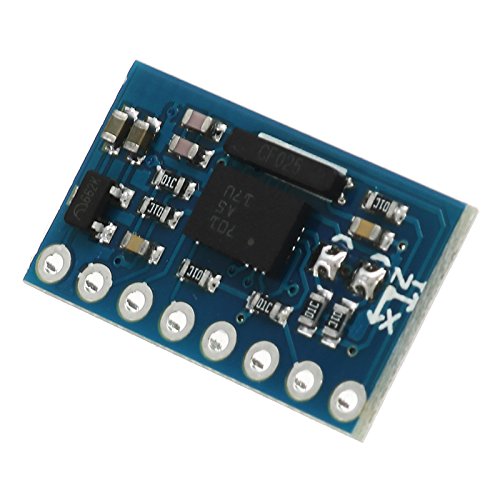

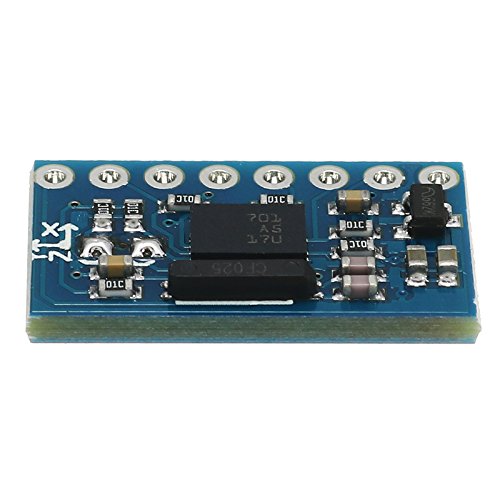

ILS - GY-BNO055 9DOF 9-axis BNO055 Attitude Sensor Angle Gyroscope Module

商品説明

Features:

Module Model: GY-BNO055
Use the chip: BNO-055
Power supply: 3-5v (internal low voltage regulator)
Communication method: standard IIC / serial communication protocol
Communication: Module size 12mm * 20mm

Applications:

Bosch Sensortec BNO055 Intelligent
Axis Absolute Orientation Sensor is a System in Package (SiP), integrating a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of ±2000 degrees per second, a triaxial geomagnetic sensor and a 32-bit ARM Cortex M0+ microcontroller running Bosch Sensortec sensor fusion software, in a single package. The corresponding chip-sets are integrated into one single 28-pin LGA 3.8mm x 5.2mm x 1.1mm housing. For optimum system integration the BNO055 is equipped with digital bidirectional I2C and UART interfaces. The I2C interface can be programmed to run with the HID-I2C protocol turning the BNO055 into a plug-and-play sensor hub solution for devices running the Windows 8.0 or 8.1 operating system.

Package Included:

1 xBNO055 Attitude Sensor Angle Gyroscope Module
