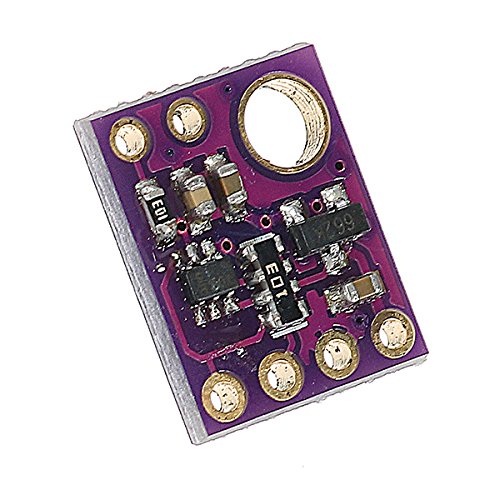

ILS - 5 pieces GY-49 MAX44009 Ambient Light Sensor Module For Arduino With I2C IIC Output Lowest Power 1.7V-3.6V

商品説明

Feature:The MAX440
ambient light sensor features an I2C digital output that is ideal for a number of portable applications such as smartphones, notebooks, and industrial sensors.At less than 1μA operating current, it is the lowest power ambient light sensor in the industry and features an ultra-wide 22-bit dynamic range from 0.045 lux to 188,000 lux.Low-light operation allows easy operation in dark-glass applications.The on-chip photodiode&#
s spectral response is optimized to mimic the human eye&#
s perception of ambient light and incorporates IR and UV blocking capability.The adaptive gain block automatically selects the correct lux range to optimize the counts/lux.The IC is designed to operate from a 1.7V to 3.6V supply voltage range and consumes only 0.65μA in full operation.Specification:Range: Wide 0.045 Lux to 188,000 LuxVCC: 1.7V to 3.6VOperating current: ICC = 0.65μATemperature range: -40°C to +85°CDevice address options : 1001 010x and 1001 011xPCB size: 1.32*1.05cm/0.52"*0.41"Applications/Uses:Cellular Phones/SmartphonesDigital Lighting ManagementPortable DevicesSecurity SystemsTablet PCs/Notebook ComputersTVs/Projectors/DisplaysPackage includes:5 x MAX440
Ambient Light Sensor5 x 4 pin header
