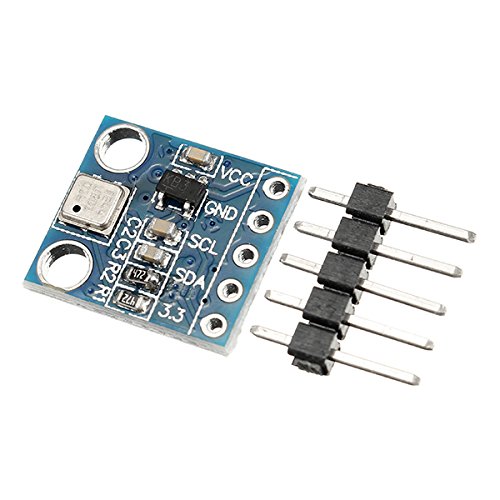

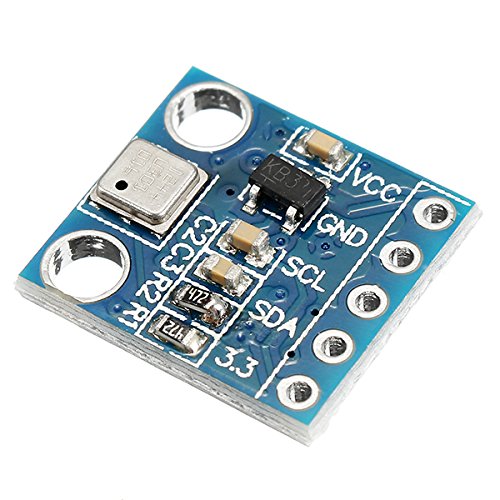

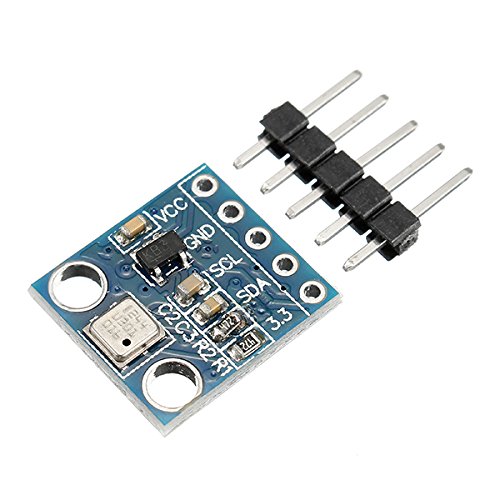

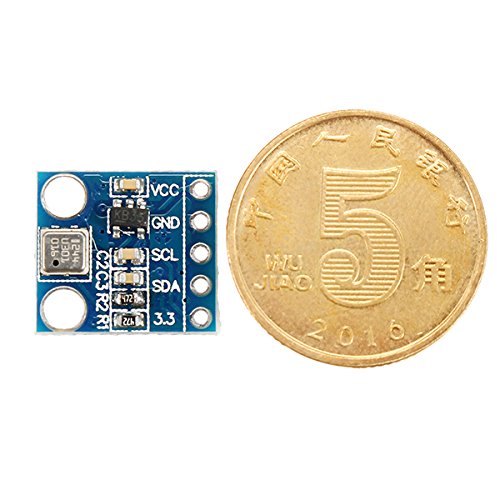

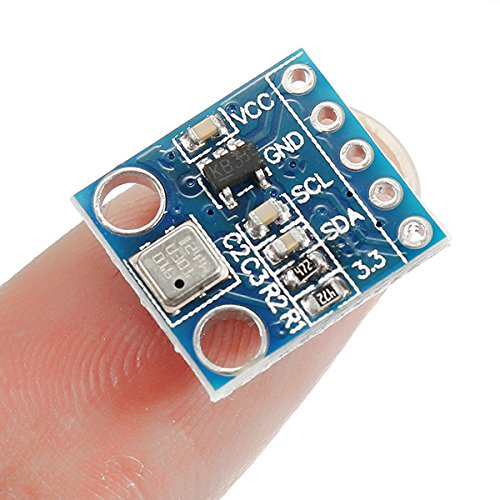

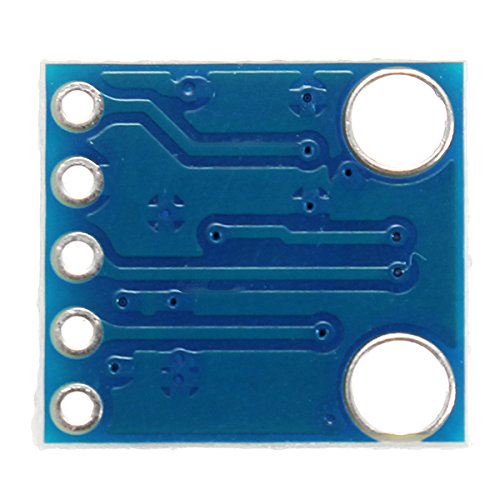

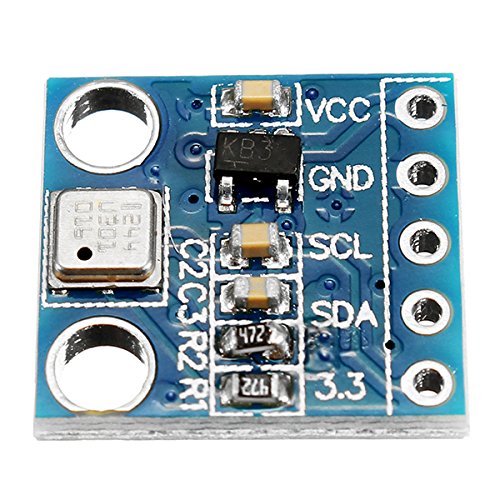

ILS - 3 pieces GY-68 300-1100hPa BMP180 BOSCH Temperature Module Atmospheric Pressure Sensor Instead Of BMP085 High Precision Low Energy Consumption Temperature Output 8-Pin LCC I2C Interface Lead Free

商品説明

Description:

BMP180 is a high precision, small size, low energy consumption pressure sensor. It can be used in mobile devices. Its performance is excellent, the absolute accuracy can achieve 0.03hPa (minimum), and low power consumption, only 3μA.
The BMP180 uses a powerful 8-pin ceramic leadless chip carrier (LCC) ultra thin package that can be directly connected to various microprocessors via the I2C bus.
Features:
Pressure range: 300~1100hPa (elevation of
00 meters to -500 meters)Power supply voltage: 1.8V~3.6V (VDDA), 1.62V~3.6V (VDDD)LCC8 package: leadless ceramic carrier package (LCC)Size: 3.6 x 3.8 x 0
mmLow power consumption: 5μA in standard modeHigh precision: low power mode, the resolution of 0.06hPa (0.5m)In high linear mode, the resolution is 0.03hPa (0.25m)
Temperature outputI2C interfaceTemperature compensationLead free, comply with RoHS specificationMSL 1 reaction time: 7.5msStandby current: 0.1 ANo external clock circuit is required
Typical applications:
GPS accurate navigation (dead reckoning, upper and lower bridge detection etc.)Indoor and outdoor navigationLeisure, sports and health care and other monitoringWeather forecastVertical speed indicator (rising / sinking speed)Fan power control

Package included:

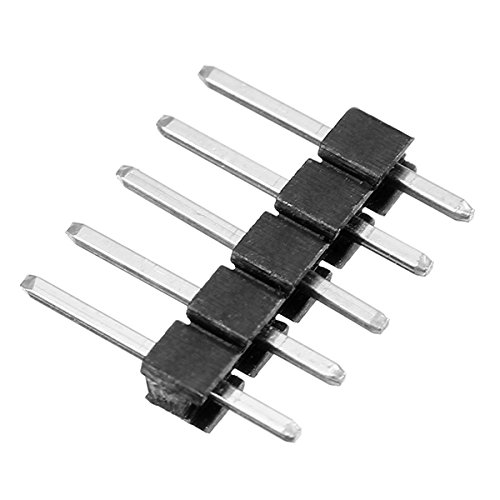

3 xGY-68 300-1100hPa BMP180 BOSCH temperature module
