ILS - HX711 Module + 20kg Aluminum Alloy Scale Weighing Sensor Load Cell Kit For Arduino

商品説明

Parameter:

Comprehensive error: 0.05% F.S
Rated output temperature drift: ≤ 0.15% F.S / 10 grade
Output Sensitivity: 1.0 ± 0.1 mV / V
Zero drift: 0.05% F.S (1 minute)
Zero point temperature drift: 0.2% F.S / 10 ° C
Zero output: ± 0.1 mV / V
Input impedance: 1000 ± 50Ω
Output impedance: 1000 ± 50Ω
Overload capacity: 150% F.S
Recommended excitation voltage: 5-10V
Operating temperature range: -10 ~ +50 grade
Application: for high-precision small-scale weighing for micro-automatic testing equipment, micro-weighing equipment, pushing and pulling equipment, pull pressure test
Red: E +
Black: E-
White: A-
Green: A +

Package included:

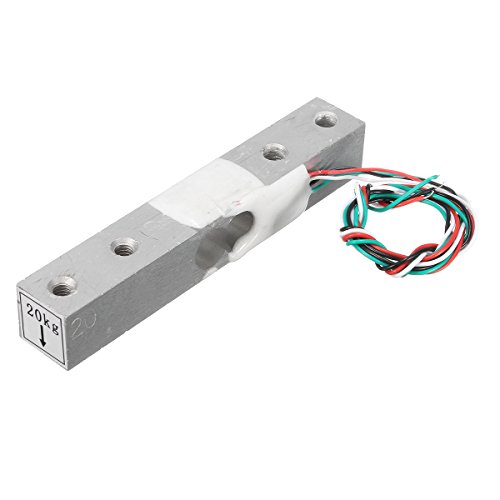

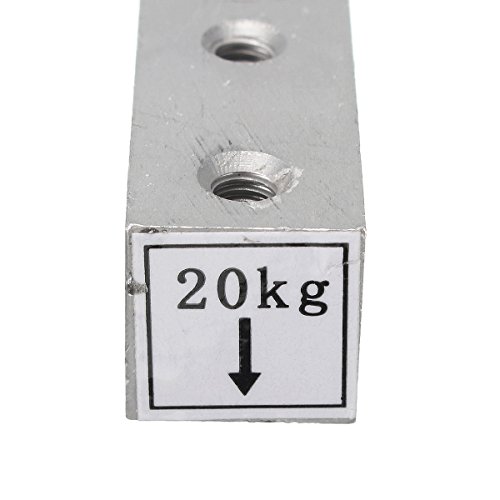

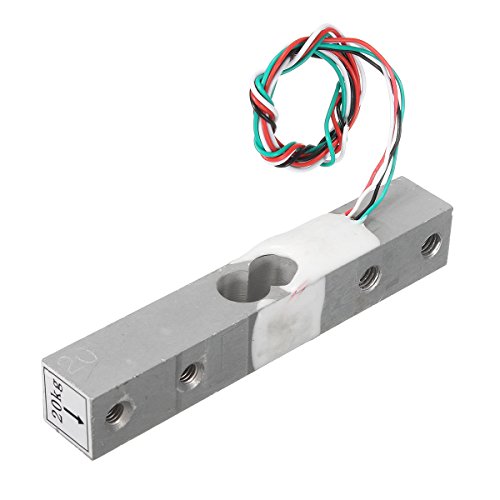

1 x Weighing Sensor Load Cell

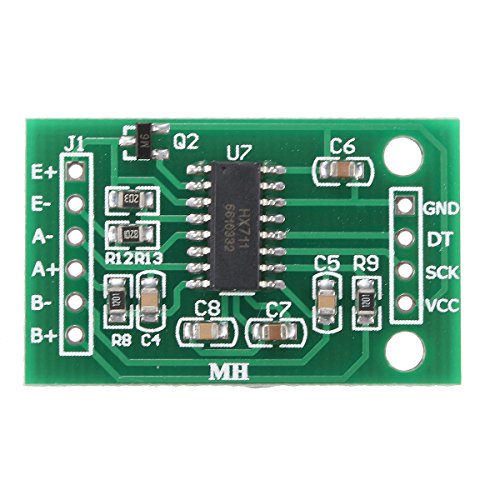

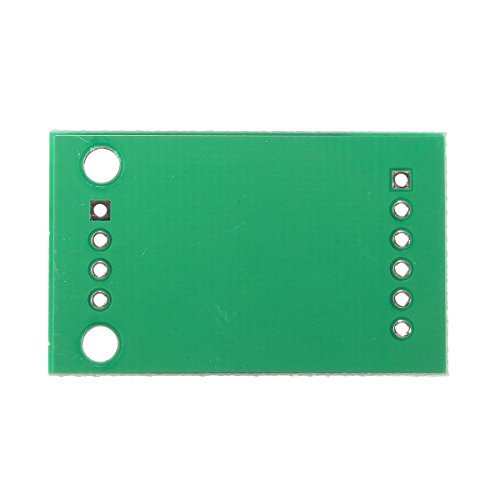

1 x HX711 Module
