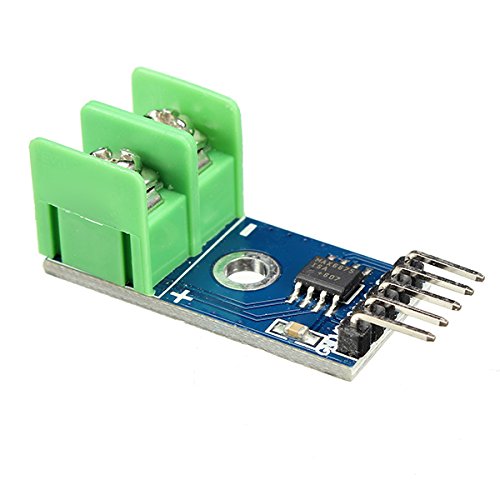

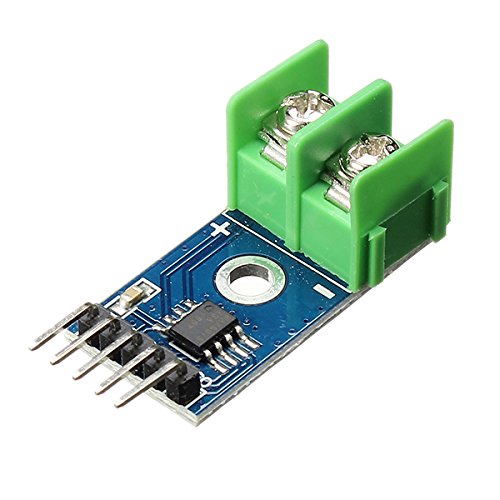

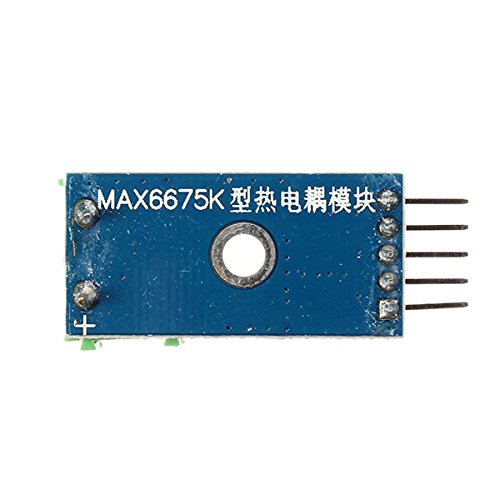

ILS - 3 pieces MAX6675 Sensor Module Thermocouple Cable 1024 Celsius High Temperature Available

商品説明

Feature:

Simple SPI serial output temperature.
Chip cold junction compensation.
High impedance differential inputs.
Thermocouple break detection.
2000V of ESD signal.

Specification:

Temperature range: 0 grade ~ 1024 grade, the converter temperature resolution: 0.25 ° C.
Wide operating voltage range: 3. 0 ~ 5. 5V, operating current: 50mA.
Operating temperature range: -20 grade ~ 85 grade.
Module interface: GND VCC SCK CS SO
Supply voltage: 3 ~ 5V DC
Module size: 15mm * 25mm

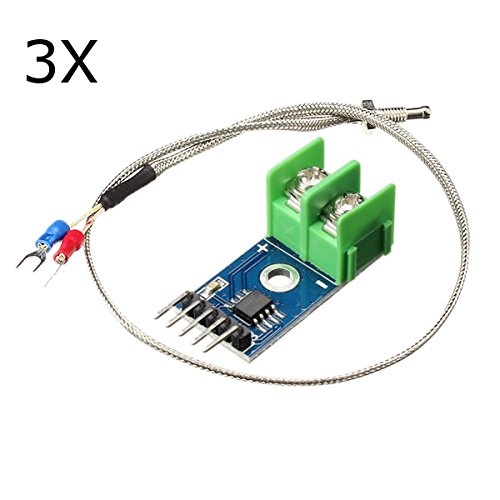

Package includes:

3 x MAX6675 Module

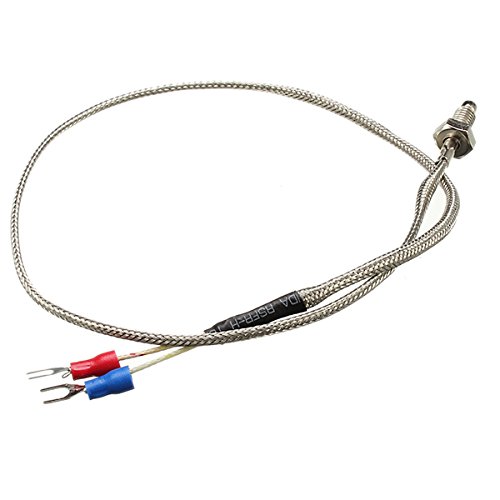

3 x Thermocouple
