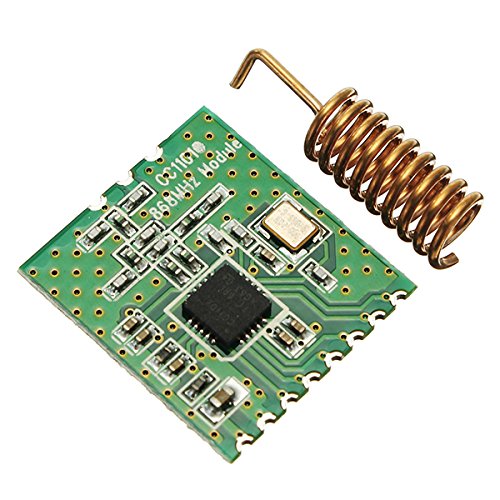

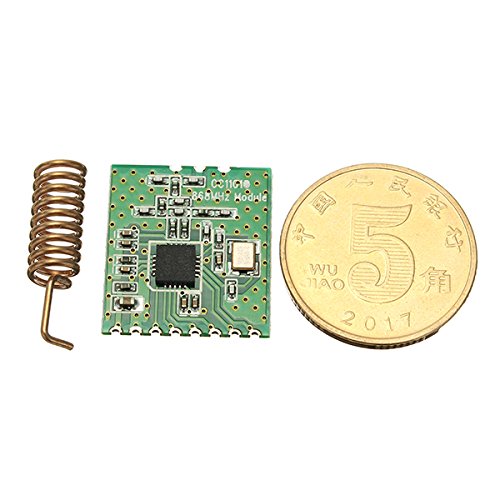

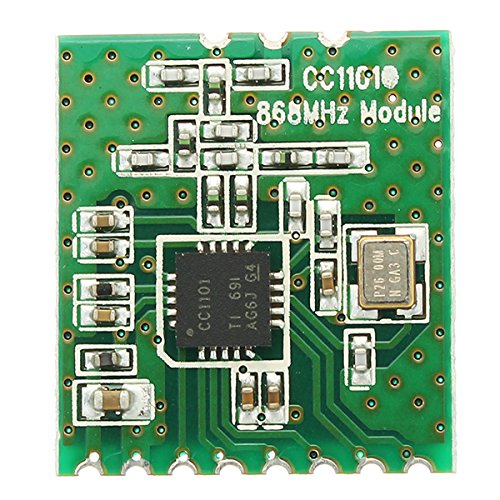

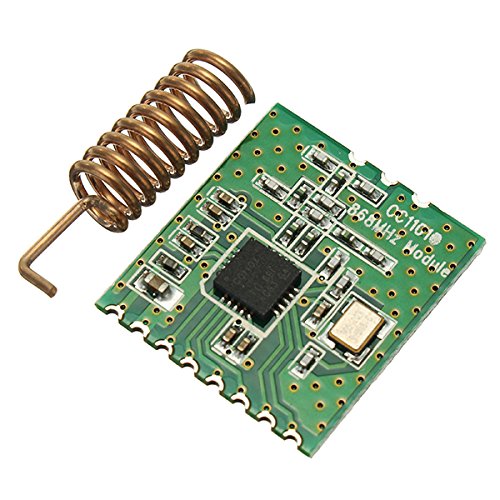

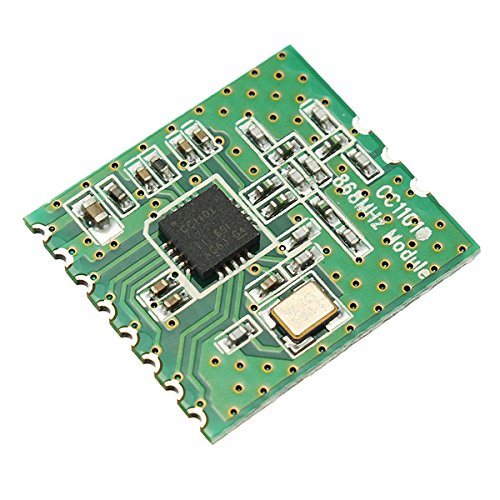

ILS - 5 pieces CC1101-868MHz 2-3.6V RF Low Power UHF Wireless Transceiver Module 1.2K To 500kps 64 Bytes SPI Interface Wake-On-Radio Support FSK GFSK ASK/OOK And MSK

商品説明

Description:

The CC1101-868MHz RF module is low cost and highly integrated UHF transceiver designed for low power wireless applications. These pro certificate modules, operating in the license free 868 MHz ISM band, can be easily integrated into your application, thereby reducing development time and cost.

Features:

Low power UHF wireless transceivers @868MHz
Support FSK, GFSK, ASK/OOK and MSK
Configurable data rate 1.2K to 500kps
Independent 64 bytes FIFO for TX & RX buffer
Packet handling including address recognition
Support Wake-On-Radio
Support Clear Channel Assessment (Listen-before-Talk)
RSSI Output & Link Quality Indictor
SPI Interface
Wide Operating Voltage 2~3.6V

Applications:

AMR – Automatic Meter Reading
Two-way RKE – Remote Keyless Entry
Low power telemetry
Home and building automation
Wireless alarm and security systems
Industrial monitoring and control
Wireless sensor networks

Electrical characteristics:

Recommended operating conditions:

Operating ambient temperature range: -40°C - +85 °C
Operating supply voltage: 2V - 3.6 V

Package included:

5 x CC1101-868MHz RF Module
