ILS - DC 5V WCS1800 Hall Current Detection Sensor Module 35A Precise With Overcurrent Protection

商品説明

Overview:

LC WCS1800 current sensor has two main functions, the first function is output an analog signal that can be used on A / D conversion; the second function is output a switch signal, and the over-current value can be set in advance. When the actual current value greater than the preset current value, the switch signal from low to high, and LED indicator. Easy to use.

Parameter:

1, The working voltage: DC5V
2, The current detection range: DC: ± 35A; AC: 25A (for analog output);
3, Linearity: K = 60mV / A;
4, Limit current range: 0.5A - 35A (for the switch output);
5, With over-current signal indicator;
6, With mounting holes, easy to install on you device;
7, The sampling current convert to analog voltage signal output, can be connected to ADC; TTL level signal output, can be connected to the microcontroller’s I/O .
8, The output signal is: analog voltage signal and switch signal.
9, Board size: 37*31mm

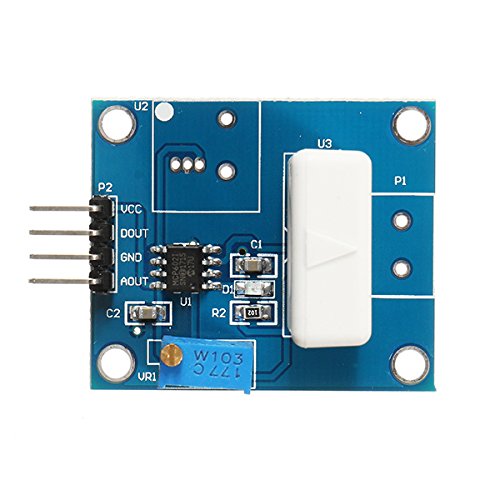

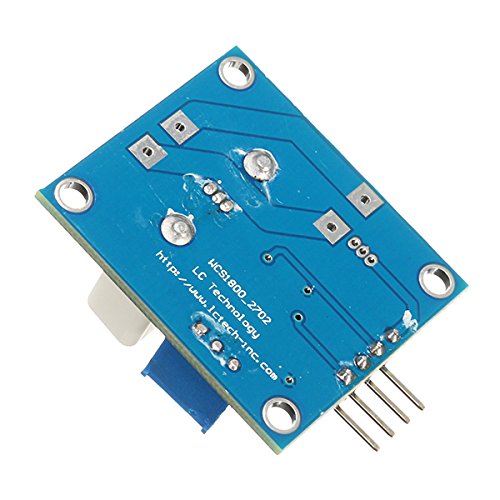

Interface description:

VCC: positive power supply;
DOUT: TTL high / low level switch signal output;
GND: power supply negative;
AOUT: analog voltage signal.

Package included:

1 xDC 5V WCS1800 Hall Current Detection Sensor Module
