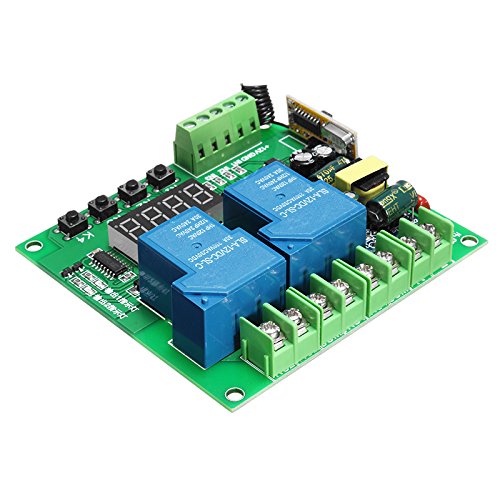

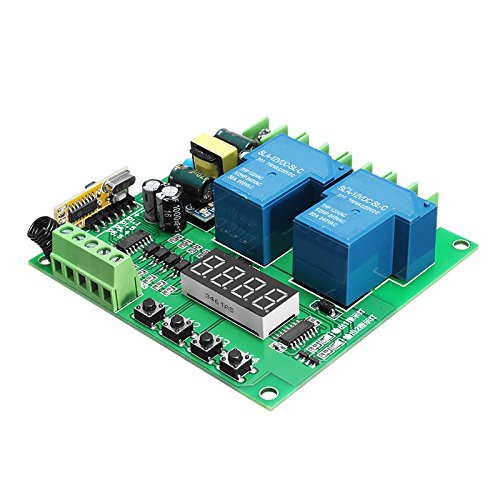

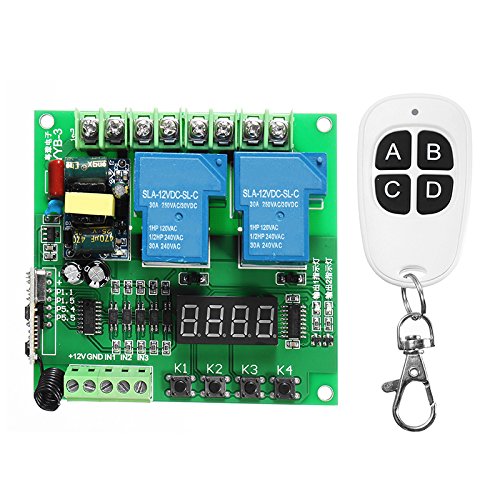

ILS - 220V Motor Reversing Control Board Radio Remote Control Relay Delay Timing Cycle Module

商品説明

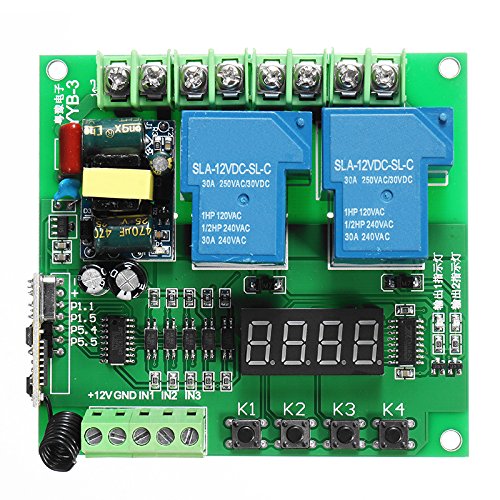

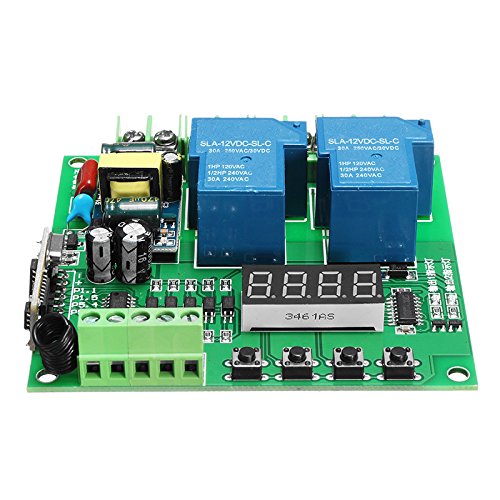

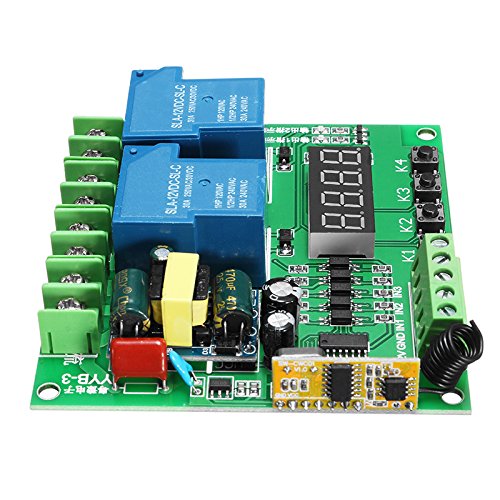

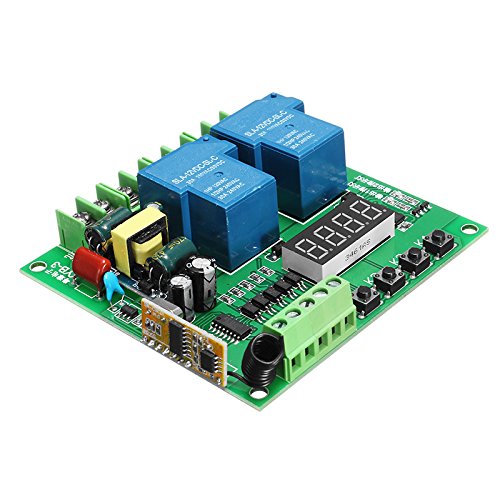

Feature:Product type: YYB-3Input voltage: AC 110V - 250VOutput power: Can control DC or AC load within 30ATime range: 0.1 seconds to

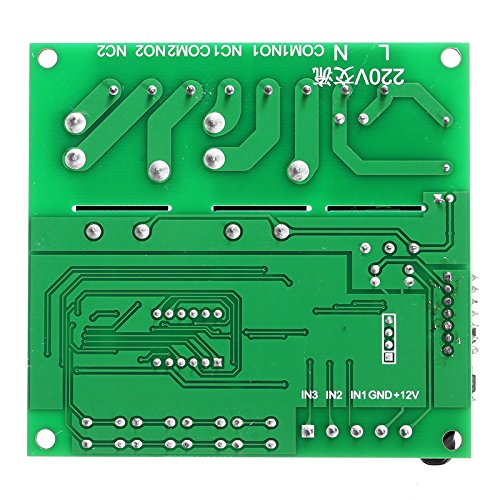

9 minutes adjustable at any timeTerminal Description:1. 220V AC: Input power2. IN1: Signal input 1 (negative trigger)3. IN2: Signal input 2 (negative trigger)4. IN3: Signal input 3 (negative trigger)5. NO: Normally open interface, the relay hanging before pull-in, after pull short connect with COM6. COM: Relay Common Interface7. NC: Normally closed interface, the relay is shorted connect to COM before pull-in and dangled after pull-inFunction List:P - 1: Signal 1, Relay 1 is automatically stopped when it is pulled to A; Signal 2 is automatically stopped when Relay 2 is pulled to B; Signal 3 is the emergency stop reset signalP - 2: Signal 1, relay 1 is automatically stopped when it is pulled to A; relay 2 is automatically stopped after it is attracted to C at time B after the signal starts to delay (this function needs the same time unit)P - 3: After the power is on, the relay 1 is pulled to release the A time, wait for the C time, the relay 2 pull to the B time to release, waiting C time; relay 1, 2 work endless loop(If you control the motor forward and reverse can be understood as: power motor forward is a period of time; stop for a period of time; automatically reverse a period of time; stop for a period of time; and then automatically forward; so cycle)P - 4: Signal 1, relay 1 pull; signal 2 (limit), relay 1 stops and starts counting to A time relay 2 pull; to signal 3 (limit), relay 2 stops and starts counting To B time relay 1 pull; infinite loop(If the control of motor forward and reverse can be understood as: press the start button 1; motor is forward to limit 2 to stop for a period of time; automatically reverse to limit 3 to stop for a period of time; and then automatically forward; so cycle)P - 5: Signal 1, relay 1 pull; to signal 2 (limit), relay 1 stops and starts counting to A time relay 2 pull; to signal 3 (limit), re
