ILS - KY005 Infrared Emission Sensor Module For Ardunino

商品説明

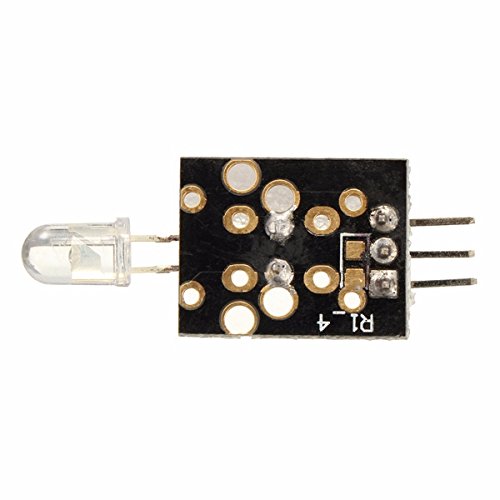

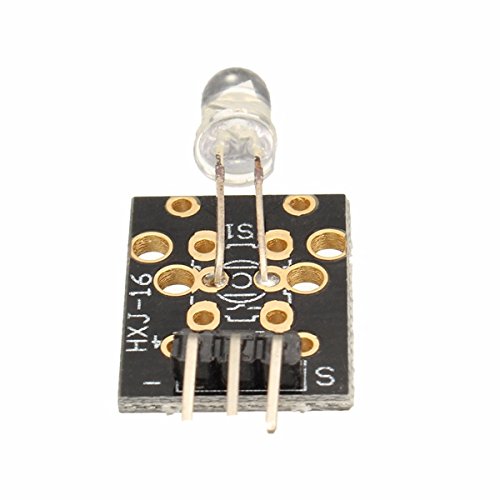

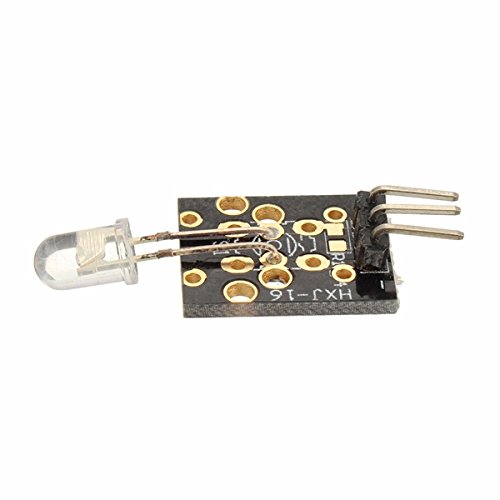

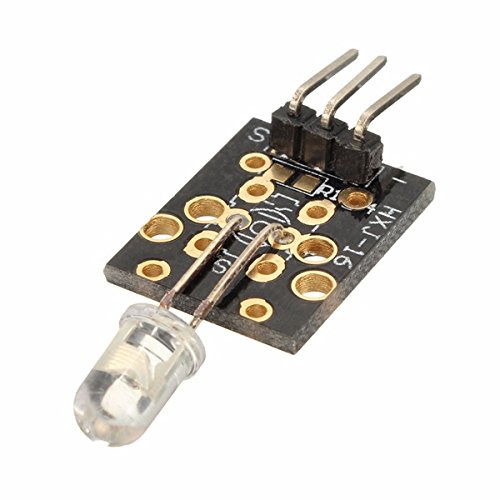

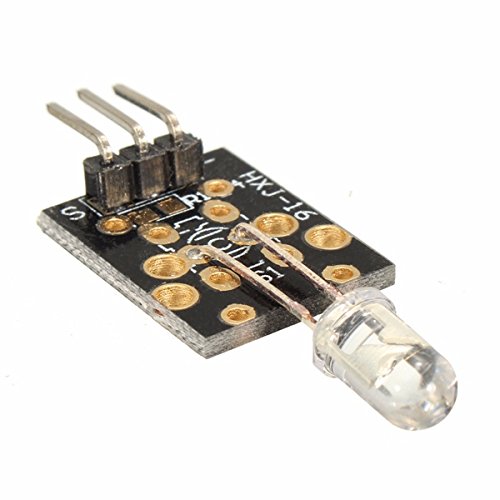

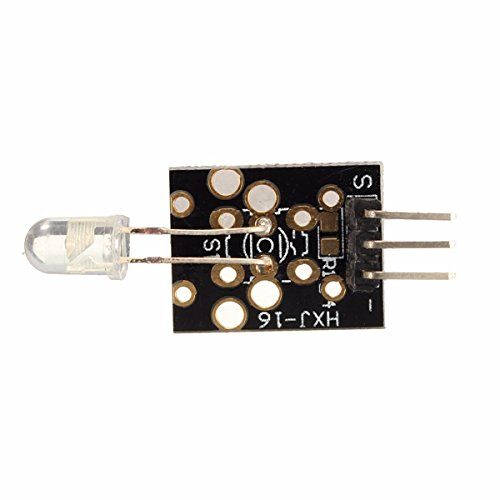

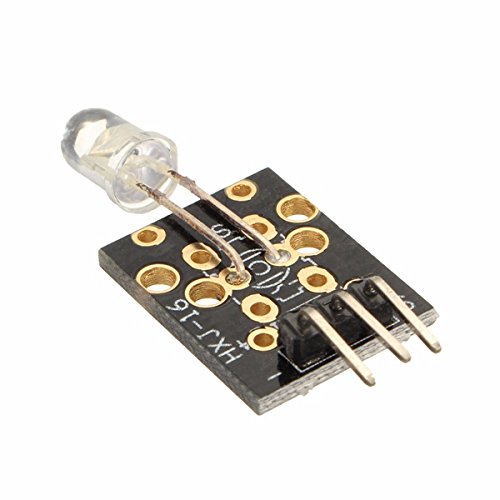

KY005 Infrared Emission Sensor Module For Ardunino

Infrared emission control, also known as infrared emitting diode, it belongs to two Tube can be directly converted into electrical energy near-infrared lightAnd a light emitting device can radiate out, its structure, with the general principle of the light emitting diode similar, but with a semiconductor Different materials;Features:
For Arduino compatible sensor module kit for the beginners.Fixed bolt holes for easy installation.With a precision potentiometer adjustable sensitivity adjustment.Material: Circuit boardCompatible with ArduinoModel: KY-005Transmit 38KHz modulating signalSize:18x14mmNotes:
Infrared emitting diodes: clean, good condition; various parameters during operation must not exceed limit values (positive To the current 30 ~ 60 mAh, Pulse Forward Current 0.3 ~ 1 A, reverse voltage 5 V, power dissipation
mW, the working temperature Range -25 ~ +80 grade, storage temperature range of -40 ~ +100 grade, soldering temperature of 260grade) infrared emission tube and then Closed head should be paired with, otherwise it will affect the sensitivity.Package List:
1 x Infrared Emission Sensor module KY-005
