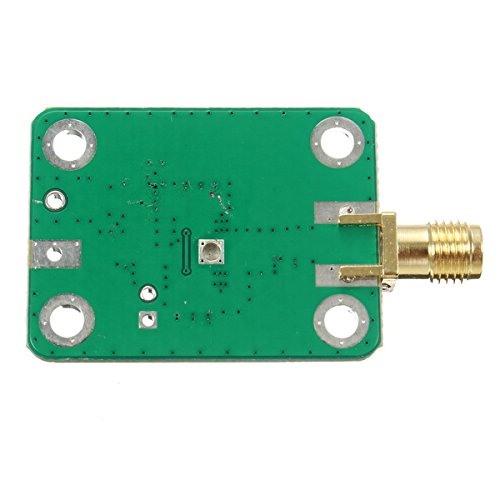

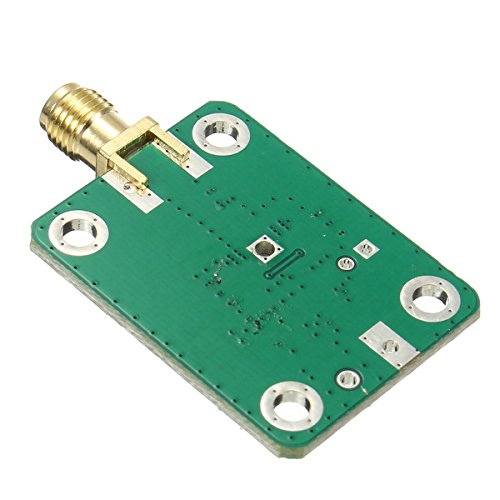

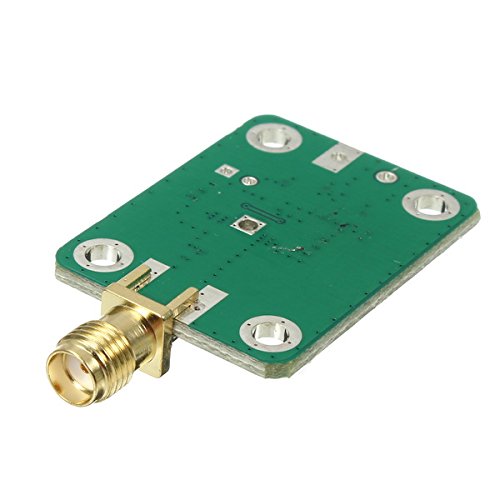

ILS - 1-8000MHz AD8318 RF Logarithmic Detector 70dB RSSI Measurement Power Meter

商品説明

Product Usage:

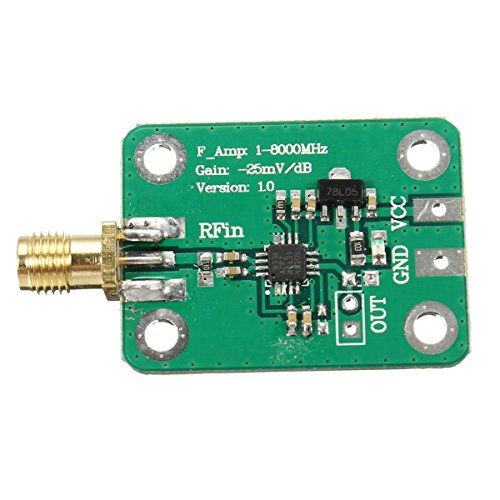

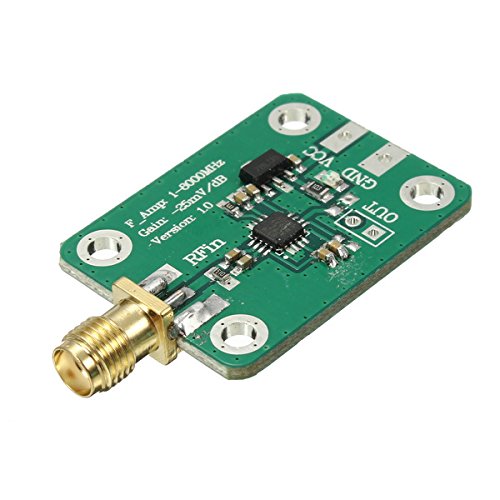

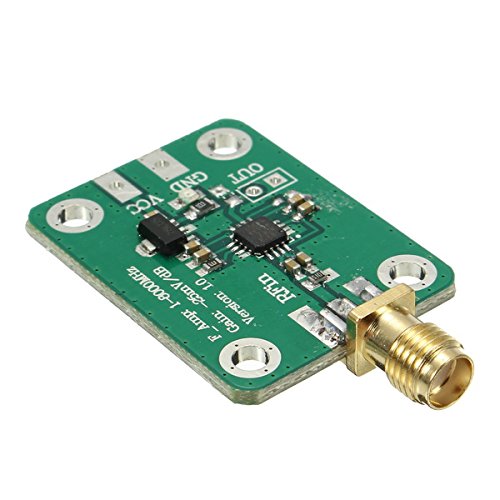

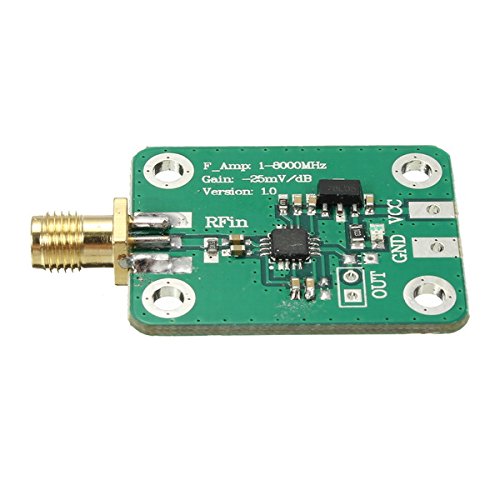

The RF detector is made of ADI&#
s AD8318 chip , the design of the power supply voltage regulator circuit such that the detection accuracy tends to official data, the operating frequency range is 1-8000MHz, can detect -65 to 5dBm RF signal and with DC voltage output the detected signal strength (in dBm, logarithmic detection), so the RF signal is converted into a DC voltage output. RF signal corresponding to the amplitude or power of the output voltage. You can do signal strength indicator RSSI, spectrum analyzer, gain control.

Technical Specifications

1. The operating frequency: 1-8000MHz
2. Dynamic Range: -65dBm to + 5dBm
3. The detection slope: -25 mV / dB (TPY)
4. The detection output voltage range: 0.5--2.1V
5. Power supply voltage: 7-15VDC (containing the power regulator circuit)
6. The input impedance: 50 ohms

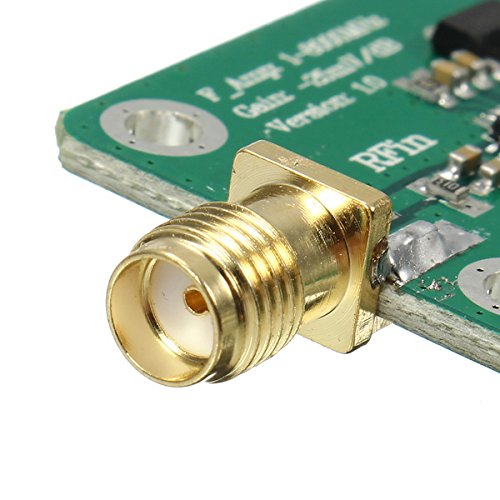

7. RF interface: standard SMA female

Package included:

1 x1-8000MHz AD8318 RF Logarithmic Detector
