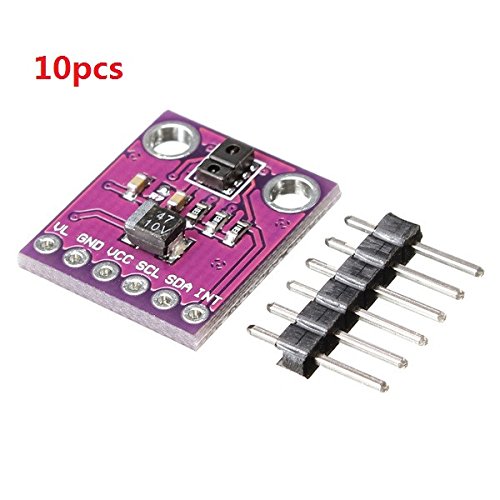

ILS - 10 pieces -9930 APDS-9930 Proximity and Non Contact Gesture Detection Attitude Sensor For Arduino

商品説明

Features:

• Optical modules integrated with ALS, infrared LEDs and proximity detectors
• Ambient Light Sensing (ALS)
- Approximate human visual response
- Programmable interrupt capability with upper and lower thresholds
- Up to 16-bit resolution
- High sensitivity operation behind dark glass
- 0.01lux low lumen performance
• Proximity detection
- Fully calibrated to 100 mm detection
- Integrated infrared LED and synchronous LED driver
- Eliminates factory calibration of the proximity sensor
• Programmable wait timer
- Wait state power consumption -
μA typical
- Programmable range from 2.7 ms to more than 8 seconds
• I2C interface compatible
- Up to 400kHz (I2C fast mode)
- Dedicated interrupt pin
• Sleep Mode Power - 2.2μA typical
• Small package 3
(L) x 2.36 (W) x 1.35 (H) mm

Applications:

• Adjustable light mobile phone backlight
• Notebook / display security
• ASutomatically enabled hands-free mode
• Automatic menu pop up
• Digital camera eye sensor

Package included:

10 x Gesture Detection Attitude Sensor
