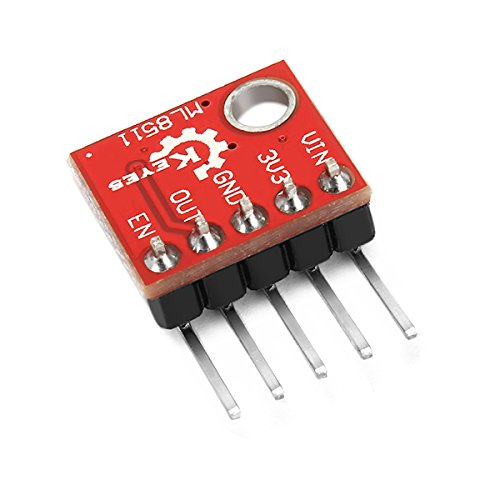

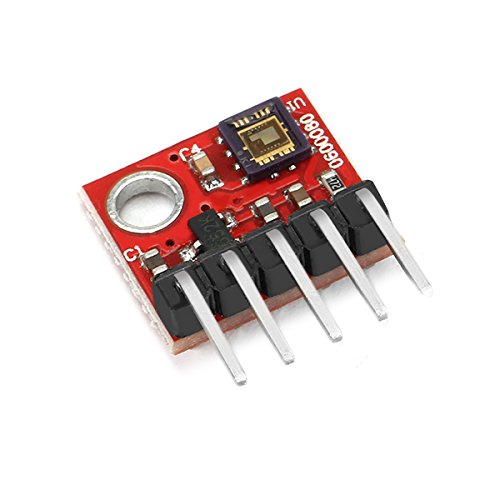

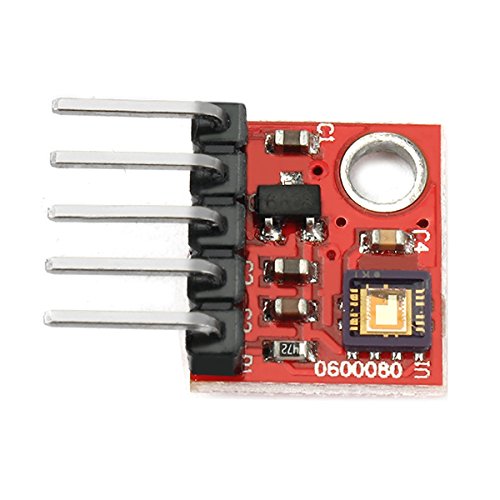

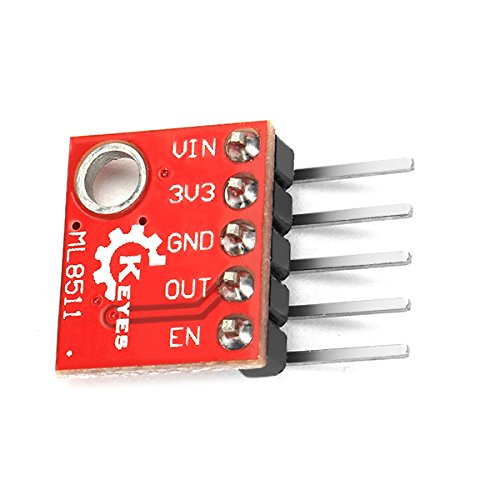

GY-ML8511 Ultraviolet Sensor Module Analog Output UV Sensor

Description:

- The module uses a common original ML8511 UV sensor that can detect the indoor or outdoor UV density.
- Sensor IC uses a readily highly integrated SOI-CMOS technology, suitable for digital and analog circuits.
- By the principle of turning photocurrent into voltage to detect UV intensity, it&#
s suitable to be used by an external circuit.
- Analog voltage can be output when ML8511 is proportional to UV light.
- Since the voltage can be output, it can be directly connected to the built-in MCU&#
s A / D digital / analog converter, no need for photoelectric conversion circuit.
- With the use of small, thin surface package, it&#
s suitable for portable devices.
- The module also has a power saving mode up to 0.1uA, suitable for smart wearable devices or mobile phones to use.

Parameter:

Working voltage: DC 5V
Working temperature: -20~70°C
Sensitive areas: UV-A, UV-B
Sensitive wavelength: 280~
nm
Module size: 30 x 22mm

Package included:

1 x Sensor
