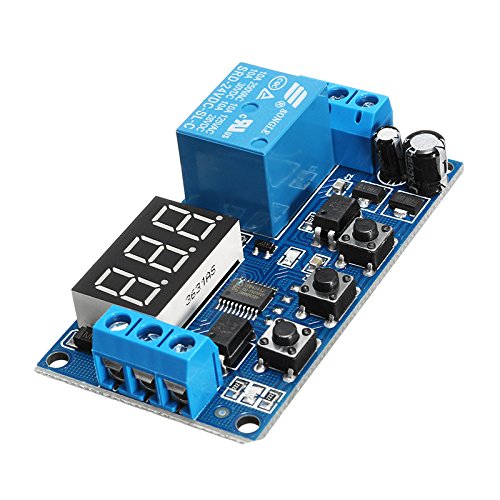

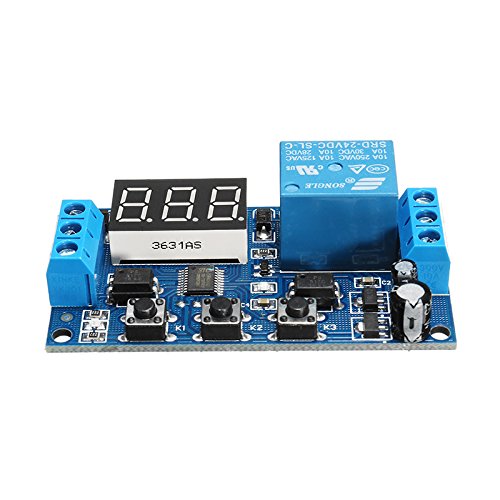

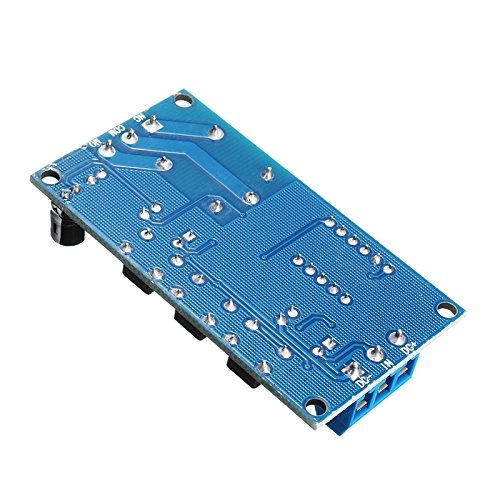

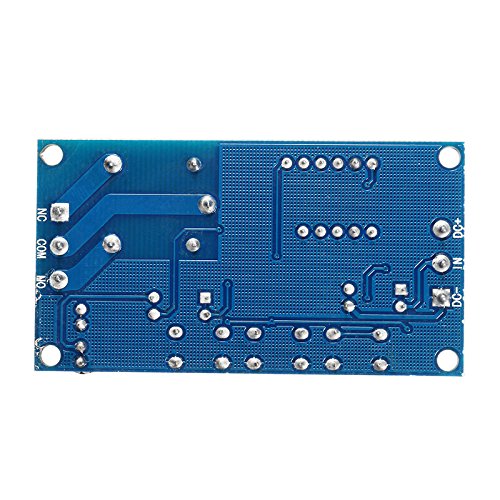

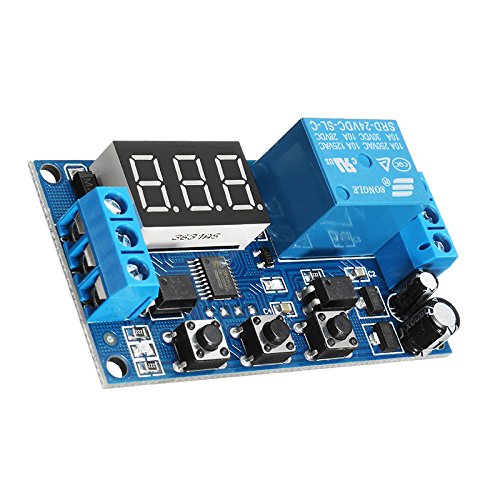

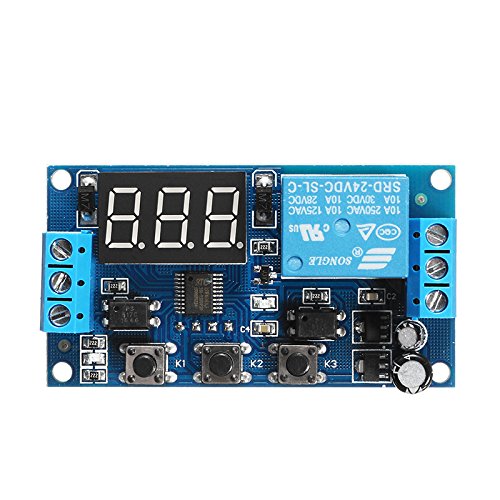

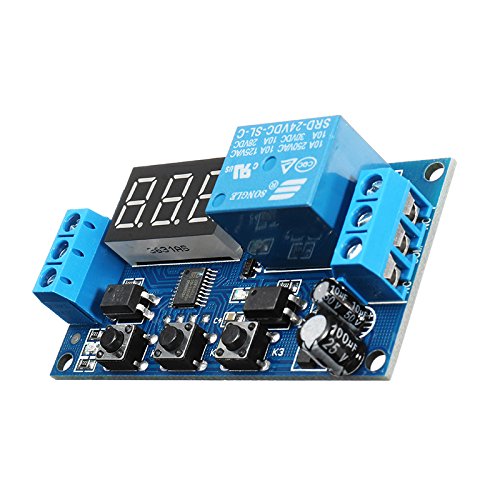

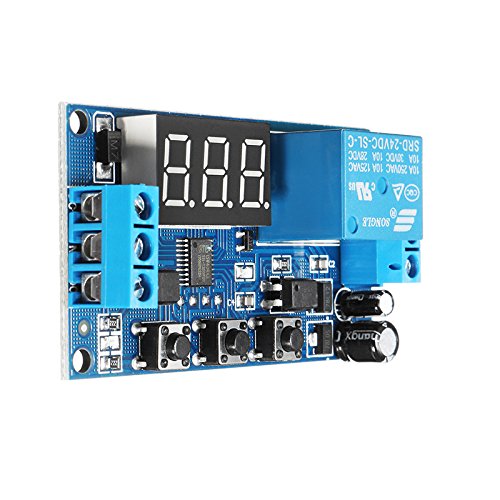

ILS - 24V Adjustable Pulse Trigger Delay Cycle Timer Delay Switch Relay Control Module

商品説明

Special attention: the relay output is passive contact, uncharged output, control a line on and off.Feature:Delay time range: 0.1 seconds minimum, up to
9 minutes adjustable.Output capacity: can control within 30v5A DC or within 220v5A AC equipmentQuiescent current: 20mAWorking current: 50mALife: >100,000 timesWorking temperature: -40°C to 85°CSize: 64.2mm * 34.8mm * 18.5mmFunction:P-1: The signal triggers the relay to pull in, when the time is up, the relay is off, during the delayA: Re-trigger invalid B: Re-trigger timing again C: Re-trigger relay reset finish timingP-2: Signal triggering starts counting time T1, when time reaches the relay pull-in, time T2 is off (reset)A: Re-trigger invalid B: Trigger again re-count C: Do not need to trigger the power to start the delayP-3: Recycling use: Turn on T1, Disconnect T2, Endless cycle. T1 and T2, the time is adjustableIf you connect or disconnect a parameter to 0, can achieve power-on delay or power delay, power off does not cycleA: After power on, the relay immediately energized B: After the relay is energized, the relay is turned off and then ON againP-4: Have signal, the relay is pull in and keep, when the signal is disappears, the timer starts. When the time is up, the relay is off. During the delay time, the signal is again given, the delay is canceled, the relay is kept, the signal disappears and the time is re-counted.Key Settings Description:K1: Function selection key: long press K1 key for 2 seconds, appear P *, short press K1 to select mode, press K2 to enter modeK2: Shift key: Press to adjust the flashing position of digital tube, which digital tube flashes, K3 will adjust the value of flashing digital tube. Until you press K2, digital tube no longer flashing, time setting is complete, automatically save the set time and power-off memoryK3: Digital tube flashing: K3 adjust the digital changes, 0 to
followed by changes.When the digital tube display is normal: K3 adjust the decimal point po
