ILS - GY-471 MAX471 3A Range Current Sensor Module Professional Board For Arduino

商品説明

Description:

This module can be used to test the current and voltage.
The principle of voltage test based on principle of resistive voltage divider design, can make the red terminal connector input voltage to 5 times smaller.
Analog input voltages up to 5V, the voltage detection module input voltage not greater than 5Vx5 = 25V (if using 3.3V systems, input voltage not greater than 3.3Vx5 = 16.5V). AVR chips have 10-bit AD, so this module simulates a resolution of 0.004
(5V / 1023), so the minimum voltage of input voltage detection module is 0.004
Vx5 = 0.02445V.

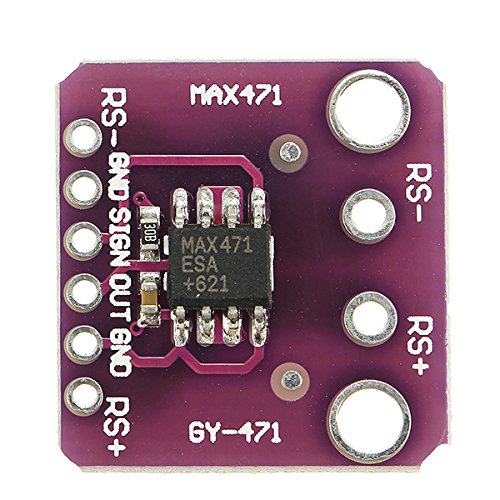

The MAX471 chip on the board used to test the consume current of the load.

Feature:

Test voltage range: DC 3 - 25V
Test current range: DC 0 - 3A
Size:
5 x 20.3mm

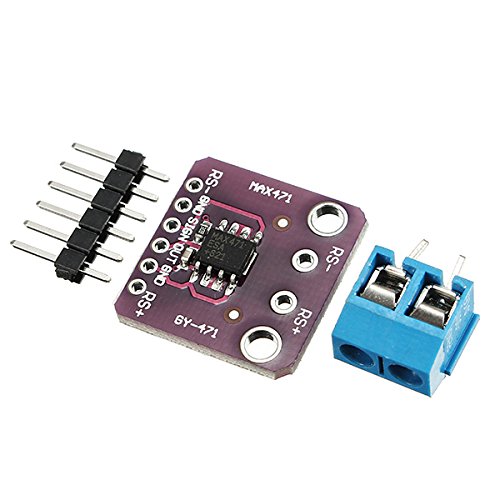

Package includes:

1 x MAX471 Current Sensor Module
