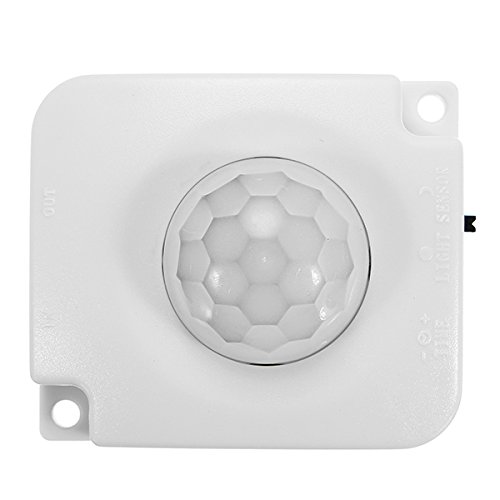

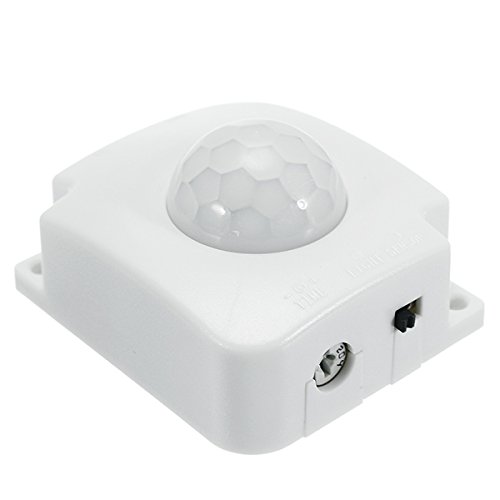

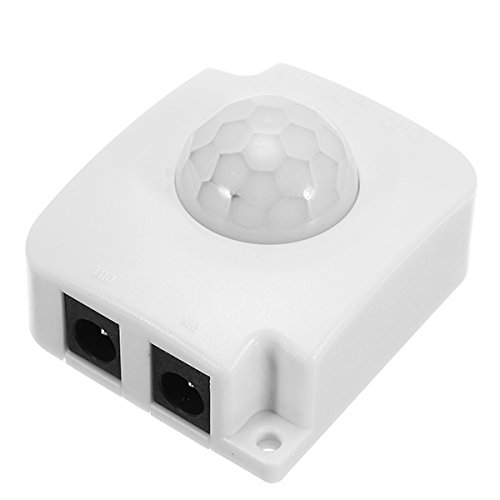

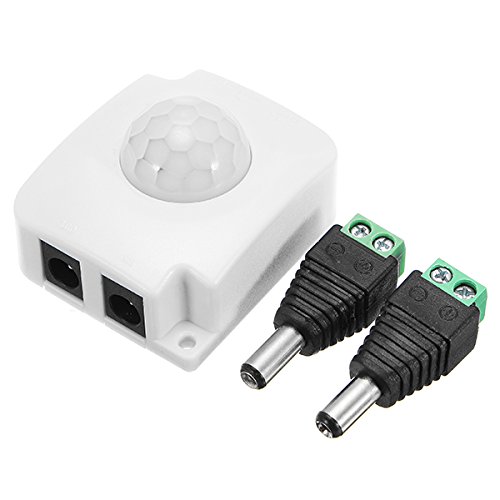

ILS - LP-8023 DC5-30V 10A Automatic Infrared Sensor Switch PIR Body Motion Detector

商品説明

Description:

The human body sensor detects the switch when people enter its detection range, detects the movement of the human body,
the switch turns on, and when people leave the sensing range it closes in the delay time

Features:

1.Load power 10A

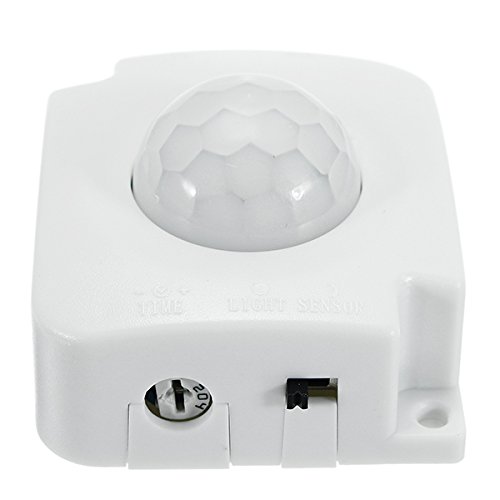

2. Delay adjustable 15 seconds to 5 minutes
3. High stability, sensing distance

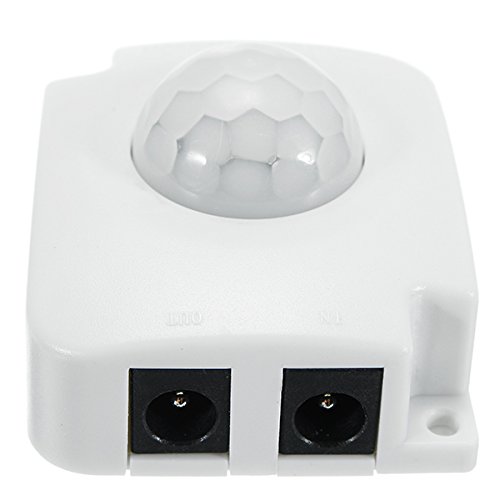

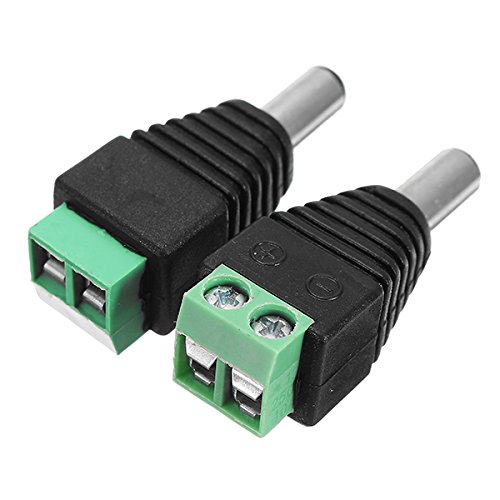

4. DC-DC plug, easy to connect
5. Low power consumption
6. Light control adjustable

Technical Parameters:

Product number:LP-8023
Functional description:Body infrared sensor module, wide voltage, input a few volts output is a few volts,
Operating Voltage:5-30VDC (wide voltage)
Operating temperature:-20 °C to +50 °C
Quiescent Current:<30uA
Output current:10A
Output mode:Induced voltage output
Delay range:15s-300s seconds, adjustable delay
Sensing mode:passive
Sensing angle:145 degree cone angle
Sensing distance:7 meters above / lens specifications: 13 *
5mm
Size:
* 42.5mm

Package included:

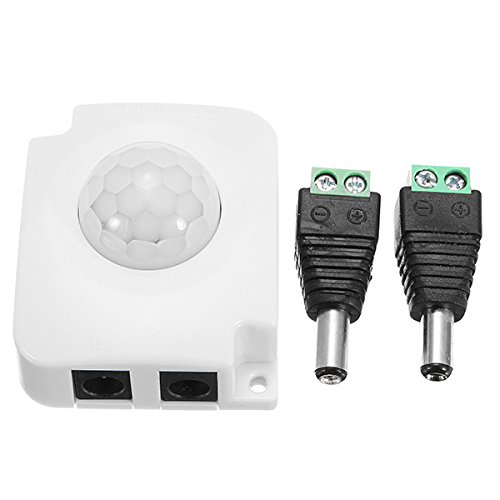

1 xLP-8023 DC5-30V 10A Automatic Infrared Sensor Switch PIR Body Motion Detector
