ILS - J-Head Nozzle MKIV MKV Hotend Extrusion Head For 3D Printer RepRap

商品説明

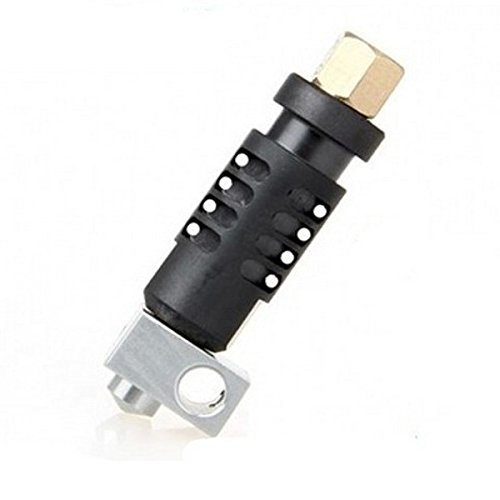

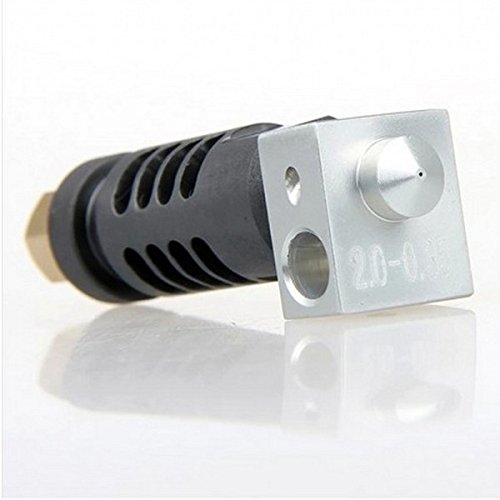

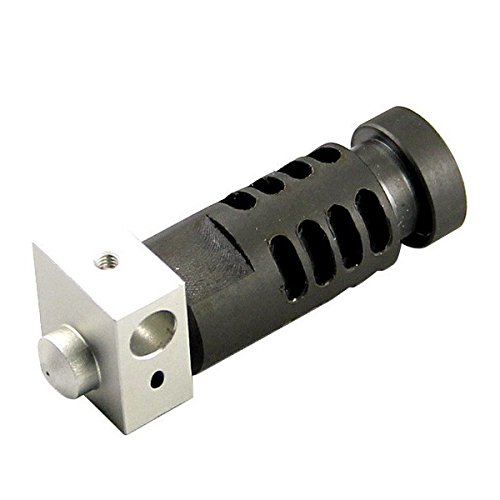

J-Head Nozzle MKIV MKV Hotend Extrusion Head For 3D Printer RepRap

Description:

J-Head Hot End nozzle is designed according to the other, by reducing custom machined parts kept to a minimum of simple steps, J-Head Hot End can be well connected popular Reprap extruder. Wherein a filament path has been verified and is designed to be the same, it can be reliably used to print ABS and PLA. Use PLA, it requires a small fan to cool rolling through the vents on both sides of the nozzle. Moreover, Hot End has two advantages. Thermal sensor integration point like no heat, such as a more efficient single screw in the nozzle heater. A heater resistor. No need to use nickel- chromium wire or baking heater core.

Feature:

This product is not included filament, suitable for: 0.3mm, 0.35mm, 0.4mm, 0.5mm diameter Nozzle, 1.75mm, 3mm diameter ABS, PLA material, please select the size you need.
Built-in high temperature Teflon does not condense and plastic consumables mouth after feeding directly into the vents , in the middle can not stay .
Cooling effect: External PEEK expensive imported materials , high temperature deformation is not unique thermal design exterior design , ventilation and cooling of course fast fast !
Convenient feed: Feed seeker, can successfully introduced into the pipe material , the feed is no longer difficult.

Note:

Before printing please pay attention to the temperature of the probe is correctly inserted in the nozzle hole, otherwise it will cause the temperature is too high, it&#
s very dangerous.
Make sure before using thermistor is inside the heating block hole, otherwise it will lead to inaccurate temperature, and high temperature burn the PEEK tube!

Package included:

1 x J-head Nozzle
