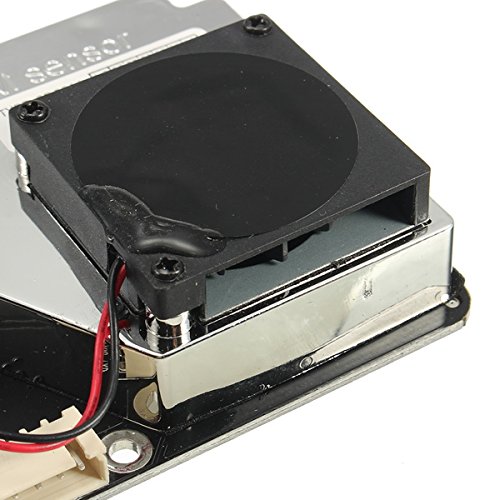

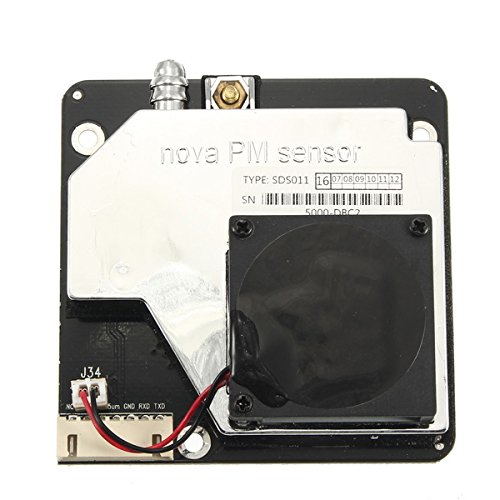

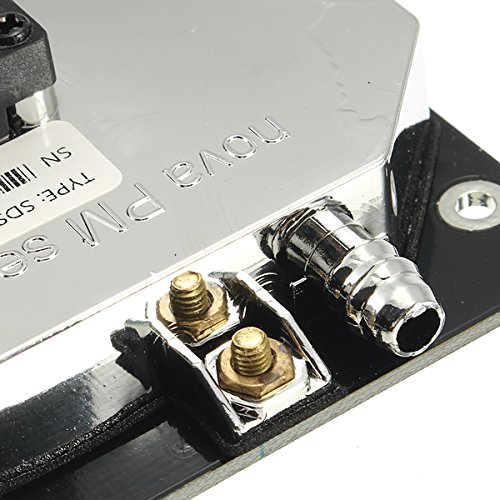

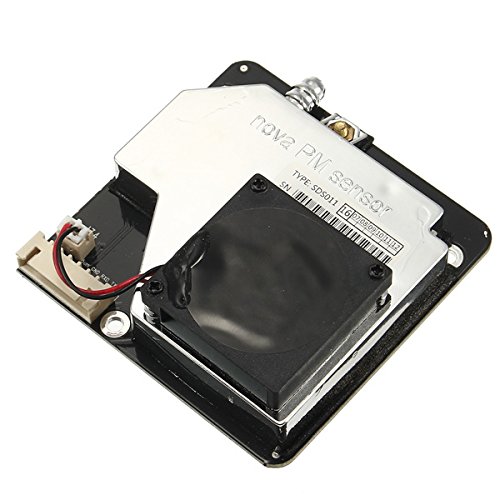

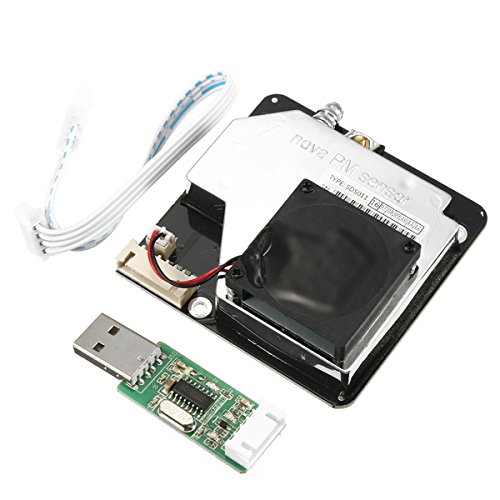

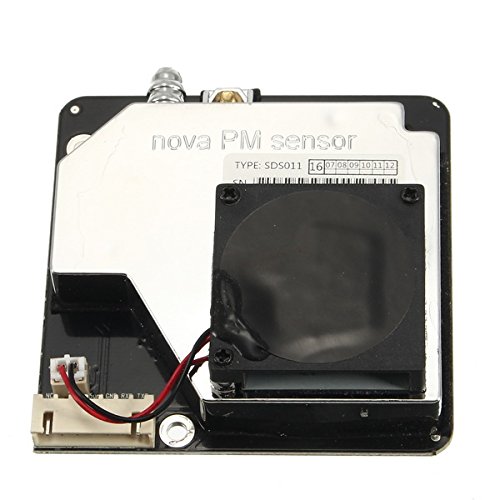

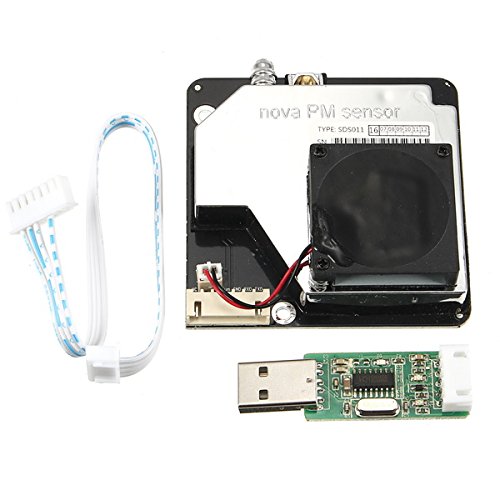

ILS - Nova PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output

商品説明

Overview:

The SDS011 using principle of scattering,can get the particle concentration between 0.3 to 10um in the air.
It with digital output and built-in fan is stable and reliable.

Characteristics:

1. Accurate and Reliable: detection, stable, good consistency;
2. Quick response: response time is less than 10 seconds when the scene changes;
3. Easy integration: UART output (or IO output can be customized), fan built-in;
4. High resolution: resolution of 0.3ug/m3.

Scope of application:

PM2.5 Detector
Purifier
Air Exchangers
Filtering system

Working principle:

Using scattering principle:
Light scattering can be induced when particles go through the detecting area.
The scattered light is transformed into electrical signals and these signals will be amplified and processed.
The number and diameter of particles can be obtained by analysis because the signal waveform has certain relations with the particles diameter.

Technical Parameters:

No.ItemParameter1Measuring outputPM2.5,PM102Range0.0
9
ug/m33Power supply voltage5V4Maximum working current100mA5Sleep current2mA6Operating temperature range-20-50grade7Response time1s8Serial data output frequency1 time/
article diameter resolutionLess than 0.3um10Relative error10%11Product size71x70x23mm

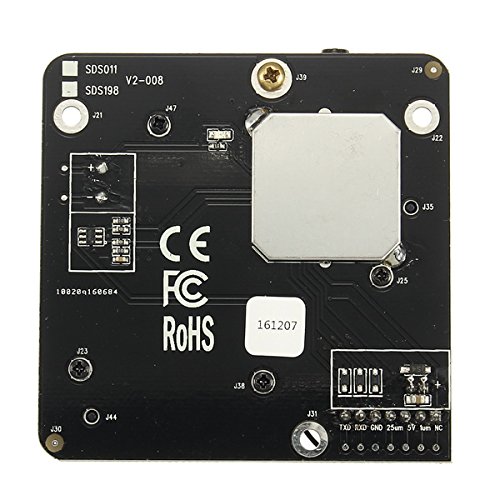

Interface specification:

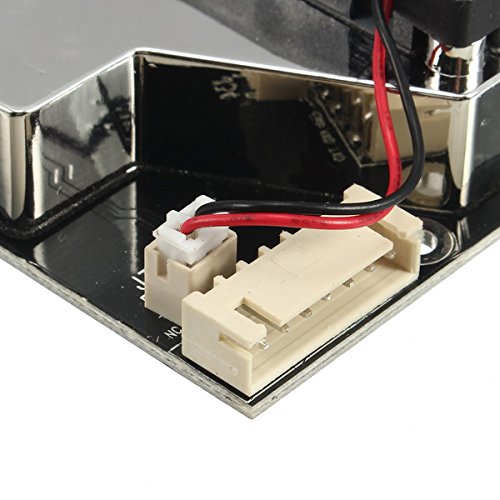

PinNameexplain1CTLControl pin, reserved21um>0.3 Micron particle concentration, PWM Output35V5V power input425um>2.5 Micron particle concentration, PWM Output5GNDGND6RSerial port receiver RX7TSerial port transmission TXPS: The pitch of Interface is 2.54mm

Communication protocol:

Serial communication protocol:
00 8N1. (Rate of
00, data bits 8, parity none, stop bits 1)
Serial report communication cycle: 1+0.5 seconds
Data frame (10 bytes): message header + order+ data(6 bytes) + checksum + message trailer
