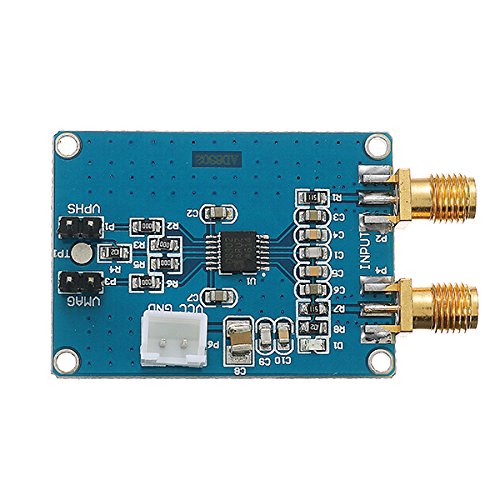

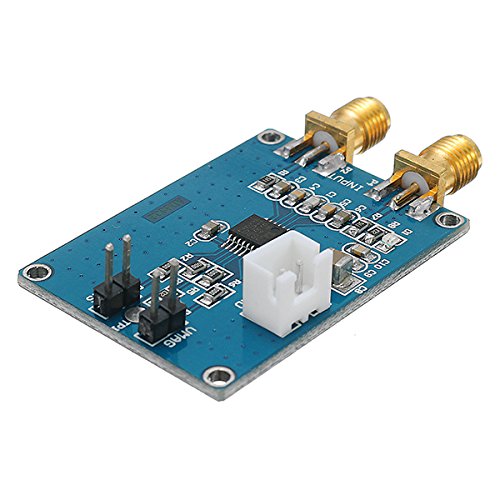

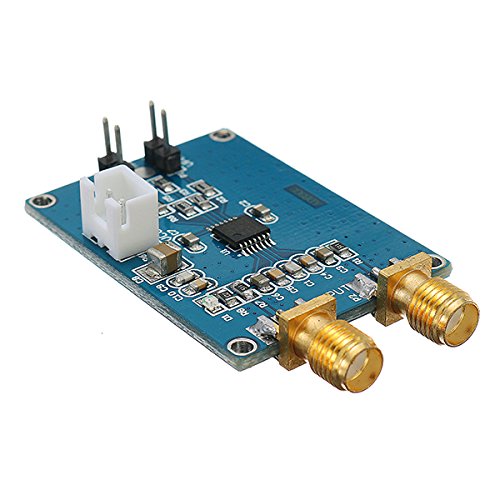

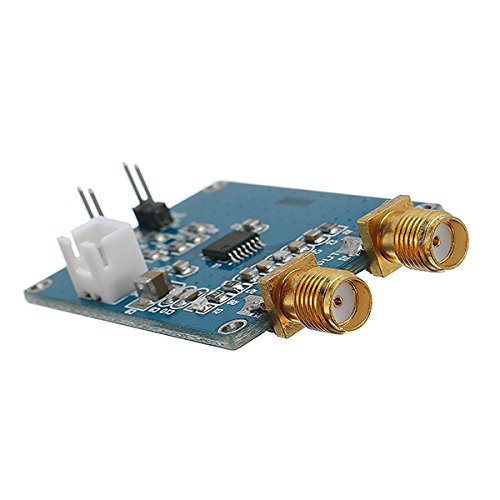

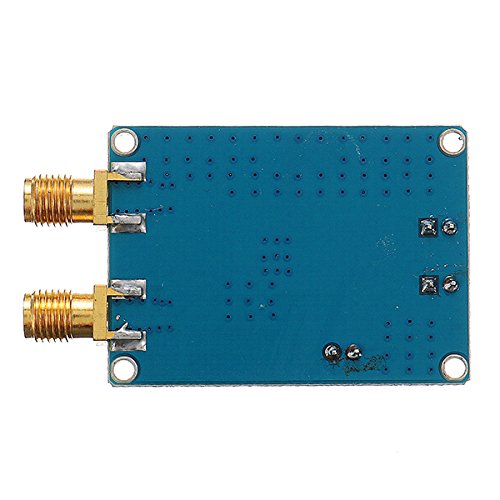

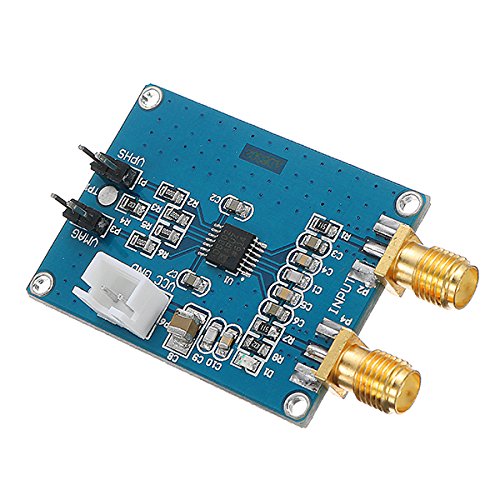

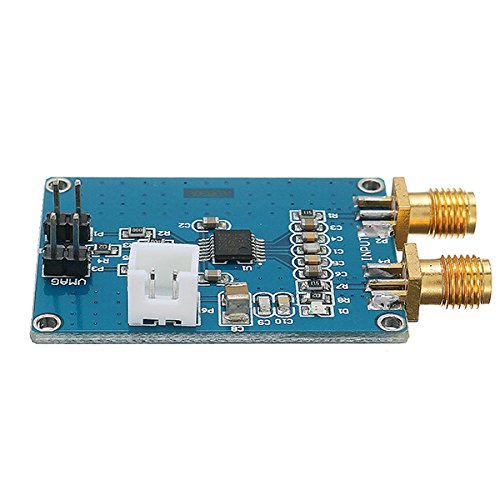

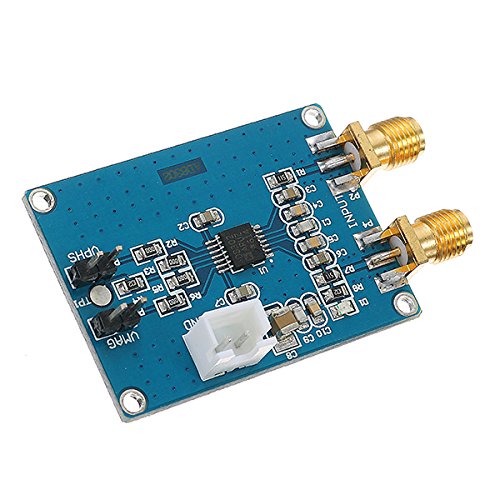

ILS - AD8302 Amplitude Phase Measure Module 5V 2.7GHz RF/IF Phase Measuring
- メーカー
- I LOVE SHOPPING
- ブランド
- ILS.
- JAN
- 0072922558624
- メーカー品番
- 072922558624
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Feature:1. Measures Gain/Loss and Phase up to 2.7 GHz2. Dual Demodulating Log Amps and PhaseMeasures3. Input Range -60 dBm to 0 dBm in a 50ohm System4. Accurate gain measurement scaling (30 mV/dB)Typical Nonlinearity < 0.5 dB5. Accurate phase measurement scaling (10 mV/Degree)Typical nonlinearity: < 1 Degree6. Measurement/Controller/Level Comparator Modes7. Operates from supply voltages of 2.7 V-5.5 V8. Stable 1.8 V reference voltage outpu Small signal envelope bandwidth from DC to 30 MHz10. PCB size: 42mm x 30.5mm11. Working voltage: 5VApplication:1. RF/IF PA Linearization2. Precise RF Power Control3. Remote System Monitoring and Diagnostics4. Return Loss/VSWR Measurements5. Log Ratio Function for AC SignalsPackage Included:1 x AD8302 Amplitude PhaseMeasuresModule
