ILS - JL104A 120V LED Light Control Sensor Inductor Photoelectric Switch Compatible Dusk To Dawn Outdoor Swivel Photo Control Photocell Standard 1/2 Pipe Thread"

商品説明

Specification:

Thread: 1/2"
Mount Type: Swivel
Related Humidity:
%RH
Rated Voltage: 100~120Vac
Rated Frequency: 50/60Hz
Rated Loading: 1000W Tungsten, 1800VA Ballast
Power consumption: 1.5VA
Operate Level: 10~20Lx On (Dusk),30~60Lx Off(Dawn)
Ambient Temperature: 40grade~ +70grade
Fit for: Wall Packs, Shoe Box, Porch Lights

Features:

- Wires directly to the electrical box with a standard 1/2" pipe thread.

- Operates incandescent, fluorescent, LED, metal halide, mercury vapor and sodium light fixtures.

- Dusk to dawn feature ensures your lights come on when they need to be on, and Heavy-duty thermal bi-metal switch swivels to allow precise positioning.

- Weather, moisture, or temperature changes does not affect the operation of this switch.

- The photoelectric switch is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

- It provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning at night.

- Temperature compensation system provides consistent performance whether it’s hot or cold. Includes a gathered swivel with the sensor/switch body for convenient direction adjustment after installation. Additional swivel is also available for further adjustment.

Notes:

1. Manual measuring, please allow 1 ~ 3mm error, thank you.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the picture.

Package included:

1 x Photoelectric switch

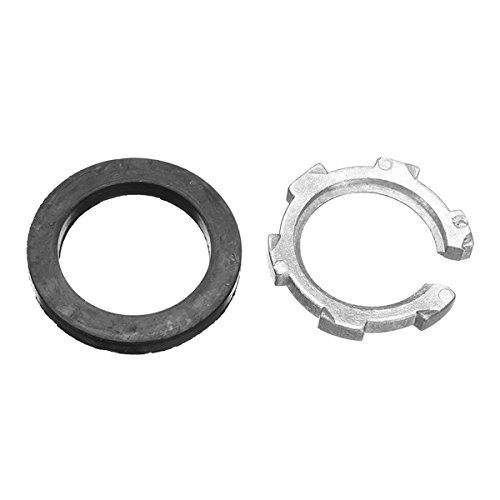

1 x Zinc alloy nut
1 x Rubber washer
