ILS - DC12-24V 25A RF Wireless Remote Controller LED Dimmer for Single Color Strip Light

商品説明

Specification:
Voltage:DC12-24V
Wattage:12V:≤216W, 24V:≤432W
Max. output current:25A(1 channel)
Connect way:Common anode
Working temperature:-20-60???
Size:127*41*32mm(L*W*H)

Code matching set:
step 1. connecting with the driver, press the "delay off" button before the power on.
step 2. powering on, can be next step when the brightness of the output load is 50%.
step 3. continuously press:DELAY OFF" three times, the brightness will be 25%, 10%, and the state of last choice, the code matching succeed.

Package included:

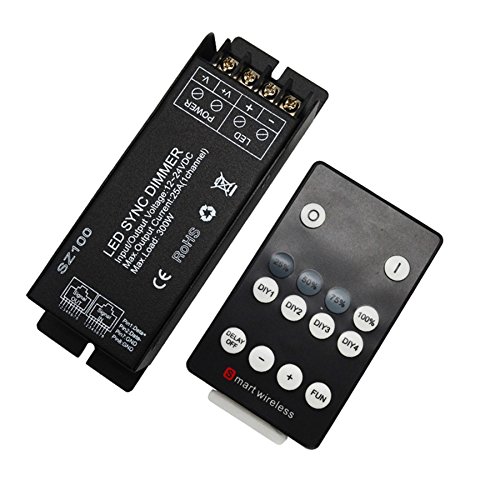

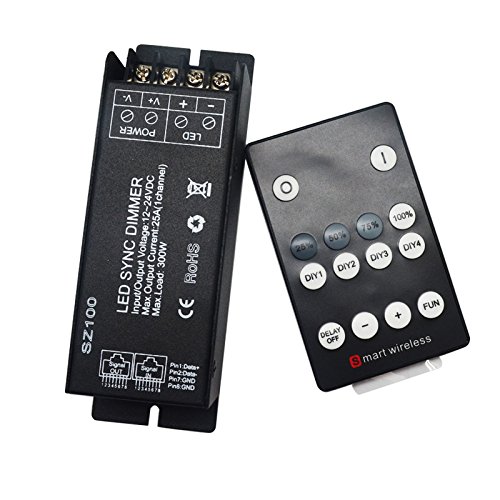

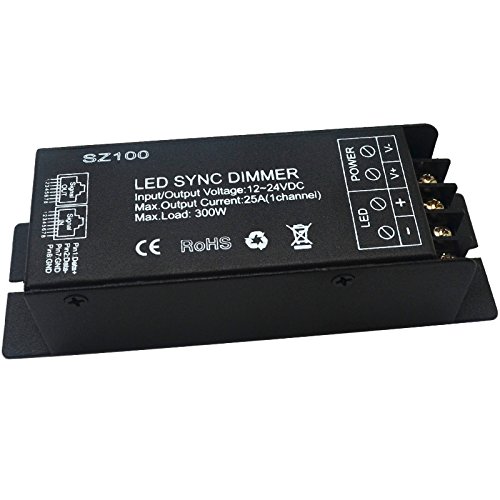

1*single color led controller dimmer
1*14 keys remote control
