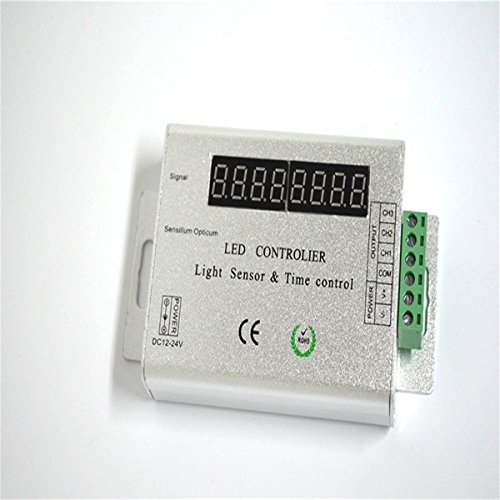

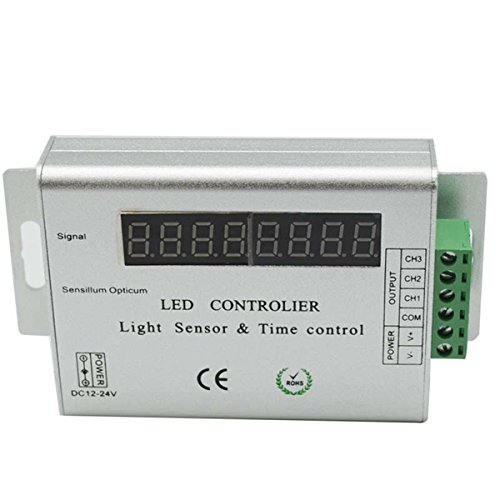

ILS - DC12-24V 144W 24 Keys Light Sensor Time Programmable Controller For Single Color Strip Light

商品説明

Features:
It adopts pwm dimmer electric.
It matches the precise clock clip which can control the brightness and darkness of the light according to the time .
When present time is same as the predicted time , the light will be the same as the previous brightness. You can set 10 scenes during the 24 hours one day.

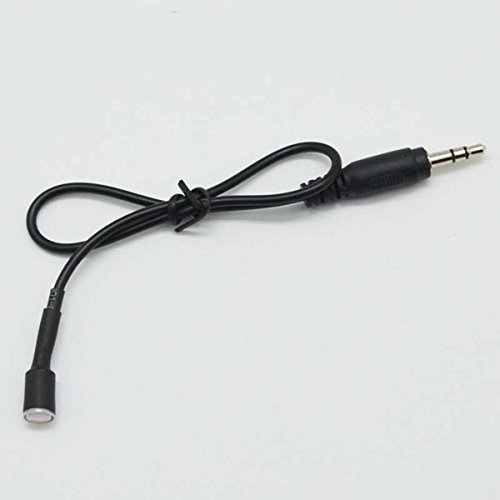

By optional sensor, the controller can adjust the brightness of the light automatically according to the brightness and darkness of the environmental optical line.
The controller can be used as a normal one.The controller works with the infrared remote controller, and operate easily.

Specification:
Voltage: DC12-24V
Output: 3 circuits
Output current: 4A/ch
Controller size: (L)122x (W)71×(H)25mm
Max power: 144W
Remote control distance: >10M
Time deviation: <5 seconds per month

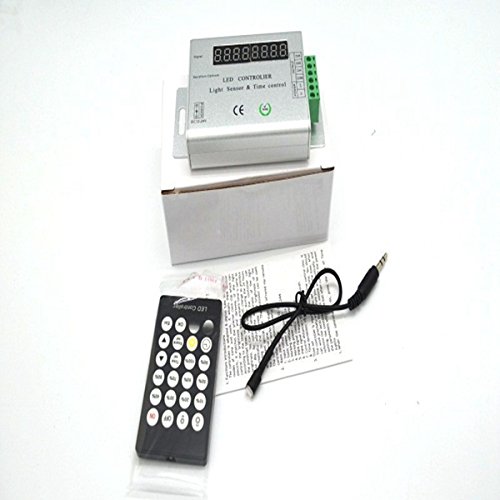

Package Included:

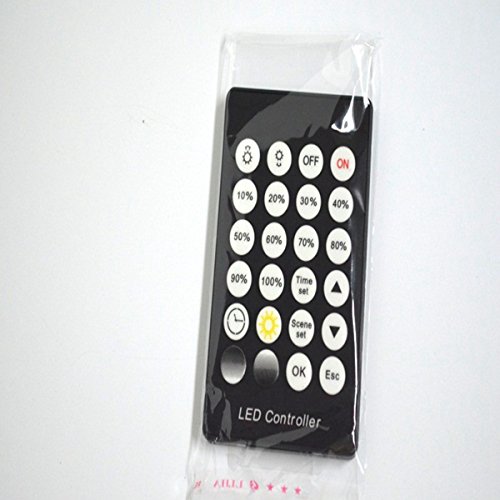

1x 24 Keys Remote
1x Controller
1x Power Cord

Power input interface (port2):

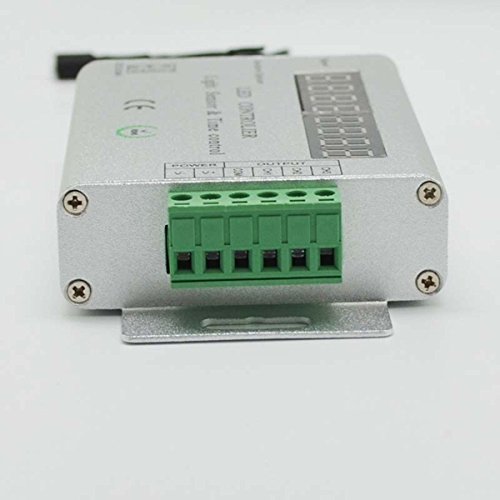

Load output interface:

When the controller is on, press the brightness hot key on the controller to enter the light adjust mode. When the first number fo the digital tube is 0 that is the controller can change the light according to settled brightness.
With power off memory function. When re-connect to the power supply, it will be the statue that you set before cutting the power supply supply automatically
