ILS - 140 Degree Infrared PIR Motion Sensor Recessed Wall Lamp Bulb LED Strip Light Switch AC220-240V

商品説明

Specifications:
Working Voltage: AC 220V-240V,50/60Hz
Max.Power:500W
Light-Control:3LUX-1000LUX(Adjustable)
Time-Delay:5Sec-7Min±2Min (Adjustable)
Installation Height:0.4-1.8M
Power Consumption:0.45W (Working)/0.1W (Static)
Detection Motion Speed:0.6-1.5M/S
Detection Distance:10M max(<22 Degree)
Color:White
Size:8*8*3.3CM
Material: Plastic and metal.
Applications:Energy-saving Lamps, LED Lamp
Working Temperature:-20~ 40 Degree
Working Humidity:<93%RH

Features:
On/Off and PIR operation settings.
When the switch is turned to “ON” or “OFF”, it can be used as an ordinary switch, and when it is turned to “PIR”, it can be used as an infrared sensor switch.
The light sensitivity and the last of time can adjust itself.
Commonly used to control lighting and extract ventilation.
Power-saving by ensuring lights and fans are not left on.
They will save energy by ensuring lights and fans are not left on
140 degrees all direction detection Vertical installation
Infrared sensor switch together with general-use switch.
Great for home, office, hotel, etc
It is convenient and easy to use.

Note:

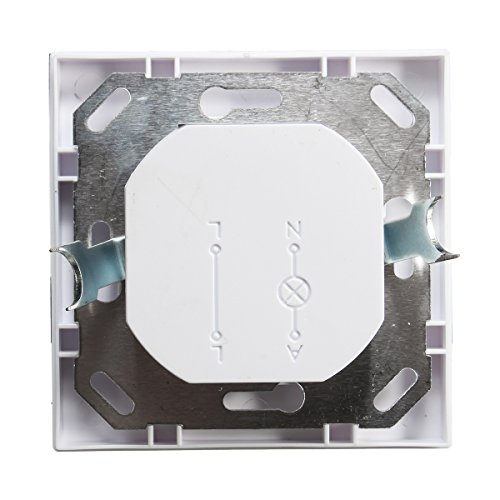

“A” Should be connected with one line of the lamp and another line of the lamp should be connected with zero line.
“L” Should be connected with the 220V fire line.
“N” Should be connected with the 220V zero line.

Package Included:
1 x AC 220V-240V PIR Sensor switch
1 x English User Manual
