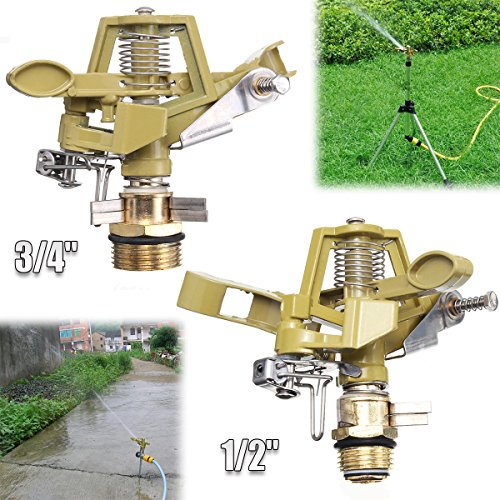

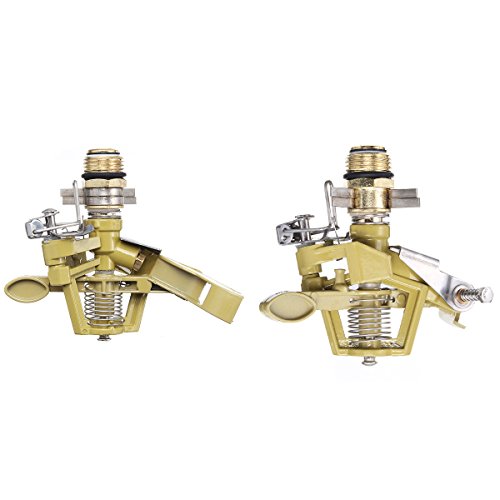

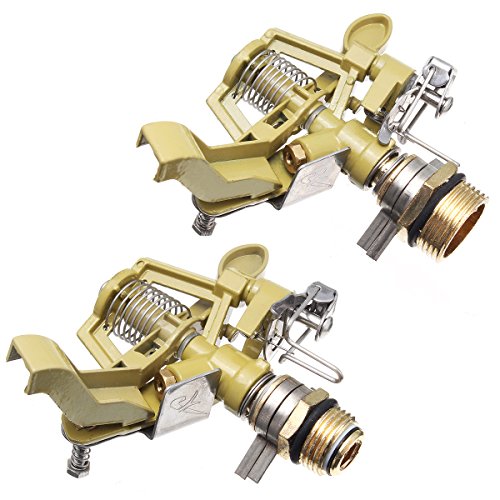

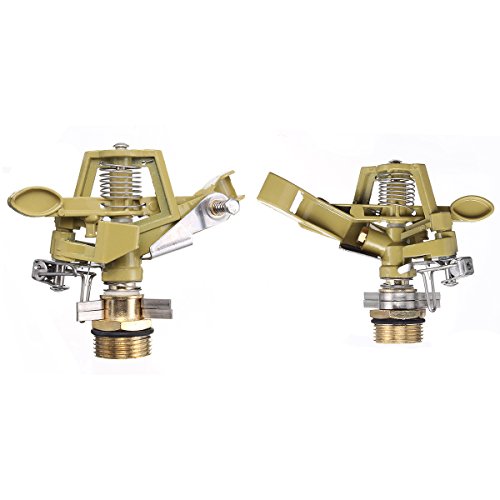

ILS - 360 Degree Rotary Sprayer Sprinkler Zinc Alloy For Home Garden Yard Lawn

商品説明

Specification:
Material: Zinc Alloy + Copper Plating
Color: As the picture shown
Pressure: 2.2~4.5 kg
Flow Rate: 0.84~1.62 m³/H
Spraying Diameter: 10~20 Meters
External Thread Interface Size:
1/2 Inch(20 mm),3/4 Inch (25 mm)

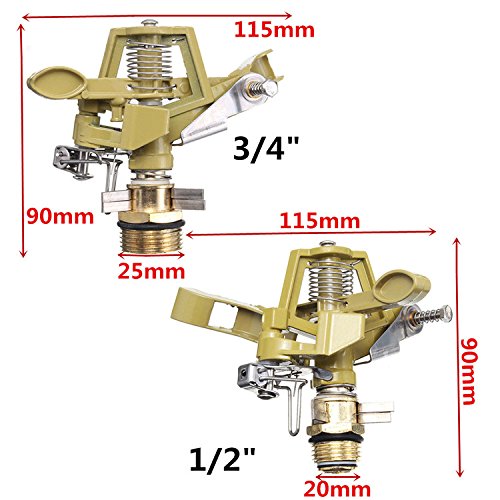

Size(L*W):11.5 x 9 cm
Scope Of Application: Agriculture,Lawn,Villa,Industrial Irrigation

Features:
1.Zinc alloy material, more durable.
2.Easy installation,water saving,general use of tap water.

Main Use:
1.In garden gardening, balcony, villas, gardens, irrigation, watering and other places widely used.
2.In greenhouse spray water, farms and other cooling.
3.Often used as high-speed rail, highway prefabricated board maintenance sprinkler.
4.Other places that require high atomization.

How To Adjust The Range And Angle Of Water Control:
1. We turn the automatic return control ring outward to pull up. At this time, the nozzle rotates at
360 degrees when it rotates
2. To control the size of irrigation vegetation area, as long as the "automatic return control loop"
down the dial, and then poke "limit ring" angle, you can adjust the range of sprinkler irrigation you want.
3. Adjust the control angle of nozzle, the nozzle in the sprinkler operation, under the impact of water
gravity rocker and stainless steel spring back and forth in shock force, the formation of back and forth
beat, resulting in work, this is the automatic rotating nozzle.
4. Nozzle operation, when the automatic rotation is adjusted to the control angle, the reversing pull rod and
the return control rod are touched to the limit ring, and then rotate back quickly under the shock of the
rocking arm. That's how the sprinklers work back and forth.

Package Included:
1 x Irrigation Sprinkler (1/2" Or 3/4")

Notes:
Manual measuring, please allow 1 ~ 2 cm error,thank you
