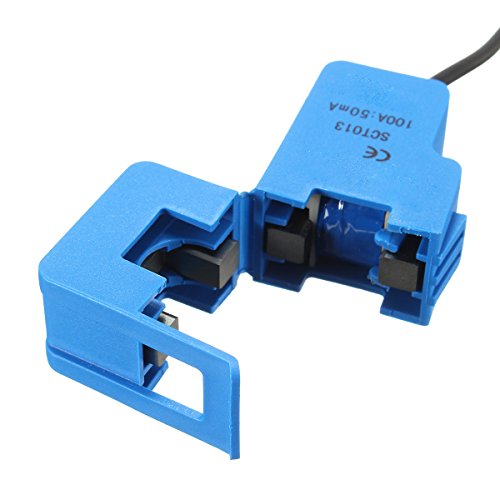

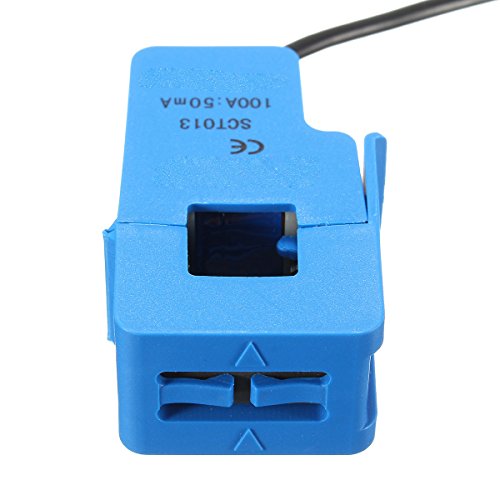

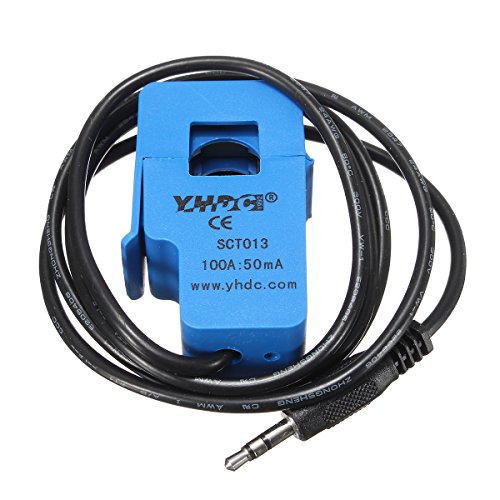

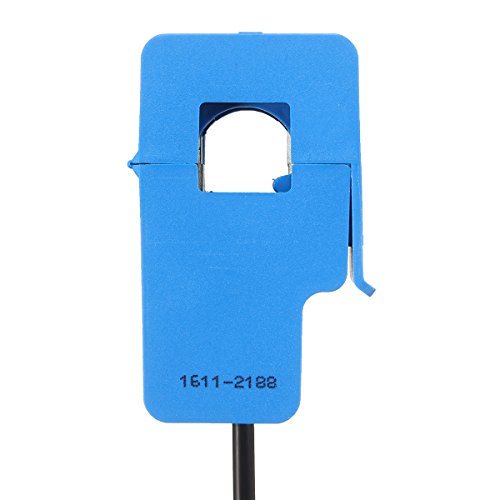

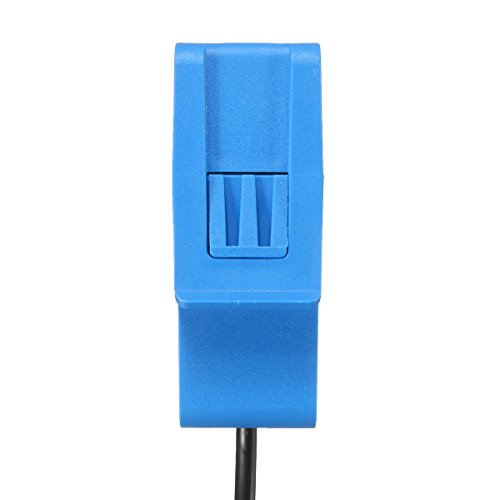

ILS - 5-100A SCT-013-000 Non-invasive AC Current Sensor Split Core Current Transformer
- メーカー
- ILS
- JAN
- 0659682119199
- メーカー品番
- 1193260
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Specifications:Core material: FerriteOpening size: 13mmx13mmOverall dimensions: 57x35x22mmOperating Temperature: -25 C ~ +70 CCurrent: 5A - 100ASafety indicators: Dielectric strength 6000V AC/1min

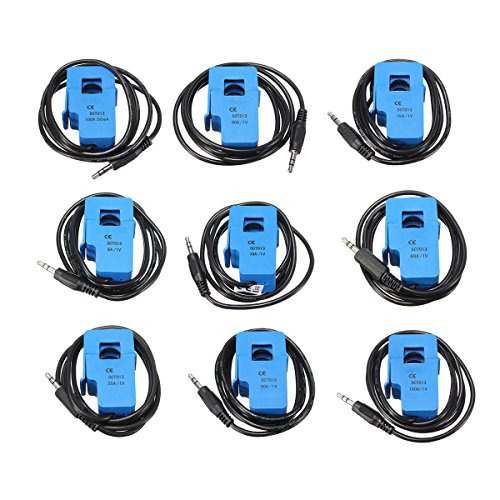

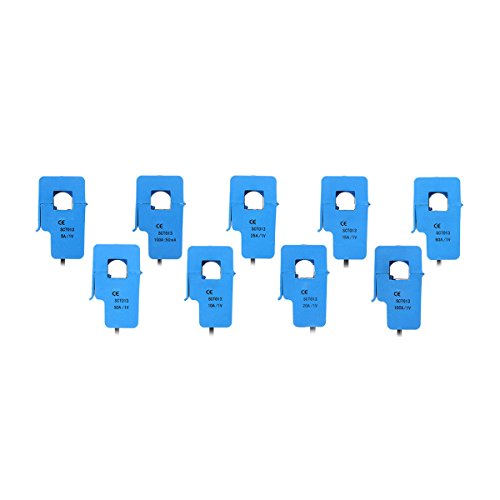

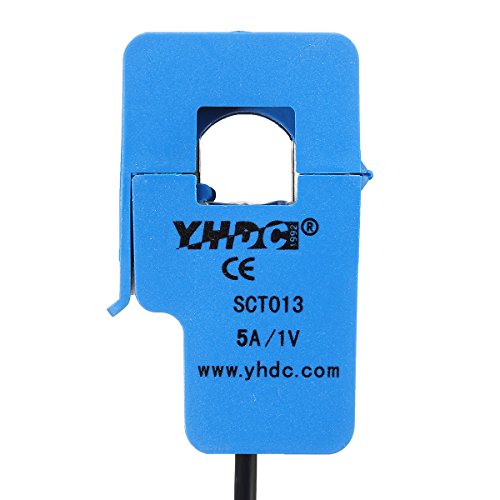

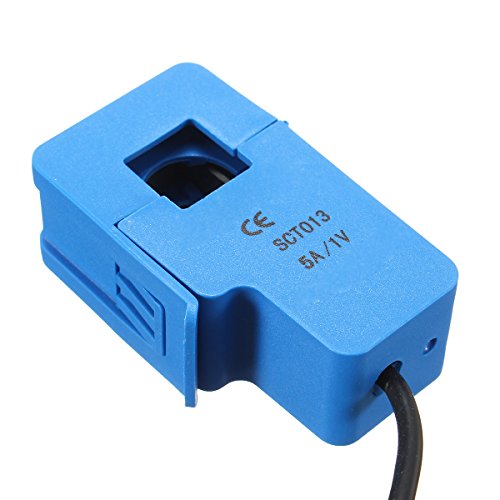

5A - 100A POA Type:#1: SCT013000V (100A/1V)#2: SCT013060 (60A/1V)#3: SCT013050 (50A/1V)#4: SCT013025 (25A/1V)#5: SCT013020 (20A/1V)#6: SCT013015 (15A/1V)#7: SCT013010 (10A/1V)#8: SCT013005 (5A/1V)#9: SCT013000 (100A/50mA)Features:- Non-linearity 3% (10%-120% rated input current)- 1.2m leading wire, &Phi3.5mm 3 core plug standard output- Two form of output current, voltage (voltage output built-in the sampling resistor)- Mechanical strength: opening and closing times, no less than 1000 times (20 C)- Meet UL94-V0 flame retardant propertiesApplications:For AC motors, lighting equipment,air compressors and other current measurement,monitoring and protection.Package included:1 x Split Core Current Transformer SCT-013-000
More Details:
特記事項
- Variant avaible:
- Size #9 - Size #8 - Size #7 - Size #6 - Size #4 - Size #2 -
- Send us a message after the purchase with variant wanted, otherwise we'll ship randomly
- Warning: only 1 variant is included
