ILS - 220V IR Infrared Module Sensing Microwave Radar Body Sensor Switch

商品説明

Specifications:

220V IR Infrared Module Sensing Microwave Radar Body Sensor Switch

Voltage: AC 220V /50Hz
Load power: Incandescent Bulb : ≤100W
Energy Saving Bulb: ≤32W
Induction distance: 4-8M (Adjustable)
Time extension: 10s-70s (Adjustable)
Light up: Light control, can not be adjusted
Sensing Angle: 180x360°
Environment temperature: -10??? ~ 60???
Color: White

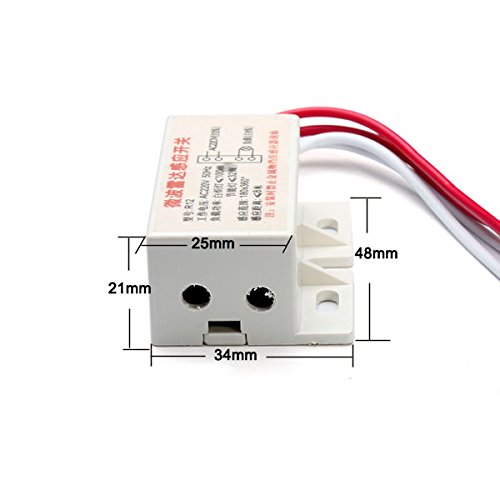

Size: 4.8 x 3.5 x 2.2cm/1.9" x 1.4" x 0.87"(L*W*T)
Wire Length: 14cm/5.7"
Fixing Hole Size: 8 x 3mm/0.31" x 0.12"(L*W)
Fixing Hole Center Distance: 28mm/1.1"
Scope: corridors, aisles, stairs
Load type: incandescent, energy saving lamps, lamp, LED
Load type: incandescent lamp ≤ 100W, energy saving lamps, circular tube ≤ 32W, LED ≤ 15W

Features:
1. According to the Doppler effect, the activities of the surrounding environment sensor body.
2. When a person or object enters the sensing range of activities, the switch will automatically energized
until a stationary state or leave the range states, auto power off.
3. With light control function, by default only work at night or under low light, normal (daylight or ambient
light is relatively strong test case does not work properly, please note.)
4. Partially penetrate non-metallic materials induction. Such as glass, wood, plastic. Less than 15cm may also penetrate walls induction.
5. Suitable hidden installation, does not affect the appearance.

Please Note:
1. Prohibits live installation is prohibited shorted load. (Do not live adjustment switch will cause damage to your peril)
2. Prohibits the use of ultra-load power.
3. When the wall thickness is less than 15cm, the wall switch may react.
4. In the induction area, do not affect the detection of objects or obstacles stop the movement, do not have electromagnetic interference from other devices.
5. Do
